Quick Details
-
Brand Name:
-
Guangchun
-
Model Number:
-
YYQ-50
-
Motor Power:
-
0.75KW
-
Length:
-
1100mm
-
Width:
-
900mm
-
Height:
-
1300mm
-
Gross Weight:
-
500kg
-
Delivery time:
-
within 20 days
-
Item:
-
Belt Drive Balancing Machine
-
Site:
-
www.gcphj.com
Quick Details
-
Warranty:
-
one year, One Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Guangchun
-
Model Number:
-
YYQ-50
-
Motor Power:
-
0.75KW
-
Length:
-
1100mm
-
Width:
-
900mm
-
Height:
-
1300mm
-
Gross Weight:
-
500kg
-
Delivery time:
-
within 20 days
-
Item:
-
Belt Drive Balancing Machine
-
Site:
-
www.gcphj.com

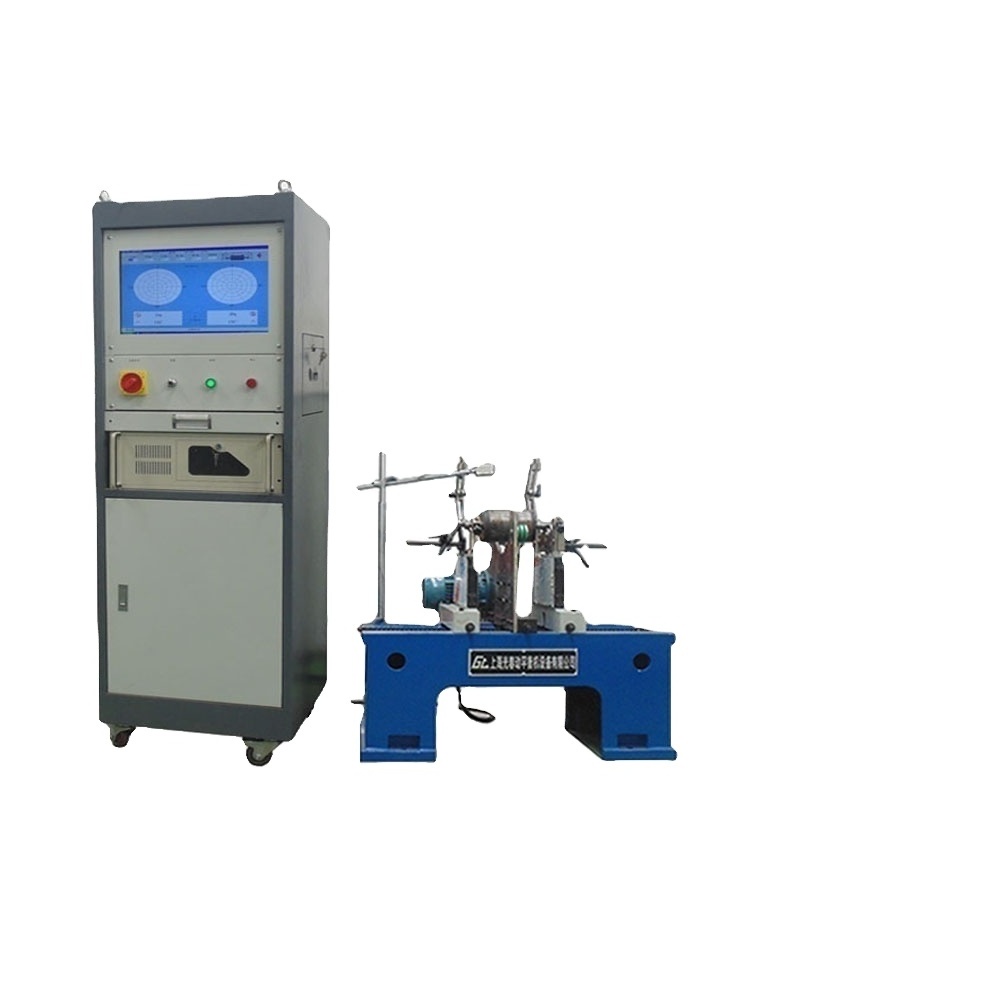

2017 Centrifuge Balancing Machine Crankshaft Balancing Machine
1.Specially designed brackets transmit mechanical force with low vibration damping
2.Durable and reliable sensor possesses good linearity
3.Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4.Belt-driving offers higher precision and easier operation
5.Advanced electrical measuring system and friendly man-machine interface
6.Modular design offers a wide range of application
7.
YY
Q series are applicable for balancing rotating parts of motor, fan impeller, pump impeller, turbocharger, crankshaft, centrifuge, roller, spindle etc
| Technical Parameters | Hard Bearing |
| Workpiece quality range(kg) | 50 |
| Maximum workpiece diameter(mm) | Φ700 |
| Distance between two seats(mm) | 80~800 |
| Support shaft diameter range(mm) | Φ8~80 |
| The diameter range of the belt drive(mm) | Φ18~200 |
| The speed of the workpiece transmission is 100mm(r/min) | 225/2350+f requency conversion |
| Motor Power(kw) | 0.75 |
| Minimum reachable residual imbalance(emar) | ≤0.5g•mm/kg |
