Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Independent research and development
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
haitop
-
Weight (KG):
-
13 KG
-
Product name:
-
pvc pipe laser printing machine
-
Laser power:
-
20W
-
Laser source:
-
Fiber
-
Support language:
-
multi language
-
Touch screen:
-
10inch
-
Laser wavelength:
-
1064±5nm
-
carving range:
-
80*80 or 110*110mm
-
Marking material:
-
metal, plastic, wood ect.
-
Cooling system:
-
Air Colling
Quick Details
-
Working Accuracy:
-
0.001 mm
-
Graphic Format Supported:
-
BMP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Independent research and development
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
haitop
-
Weight (KG):
-
13 KG
-
Product name:
-
pvc pipe laser printing machine
-
Laser power:
-
20W
-
Laser source:
-
Fiber
-
Support language:
-
multi language
-
Touch screen:
-
10inch
-
Laser wavelength:
-
1064±5nm
-
carving range:
-
80*80 or 110*110mm
-
Marking material:
-
metal, plastic, wood ect.
-
Cooling system:
-
Air Colling
Product Description

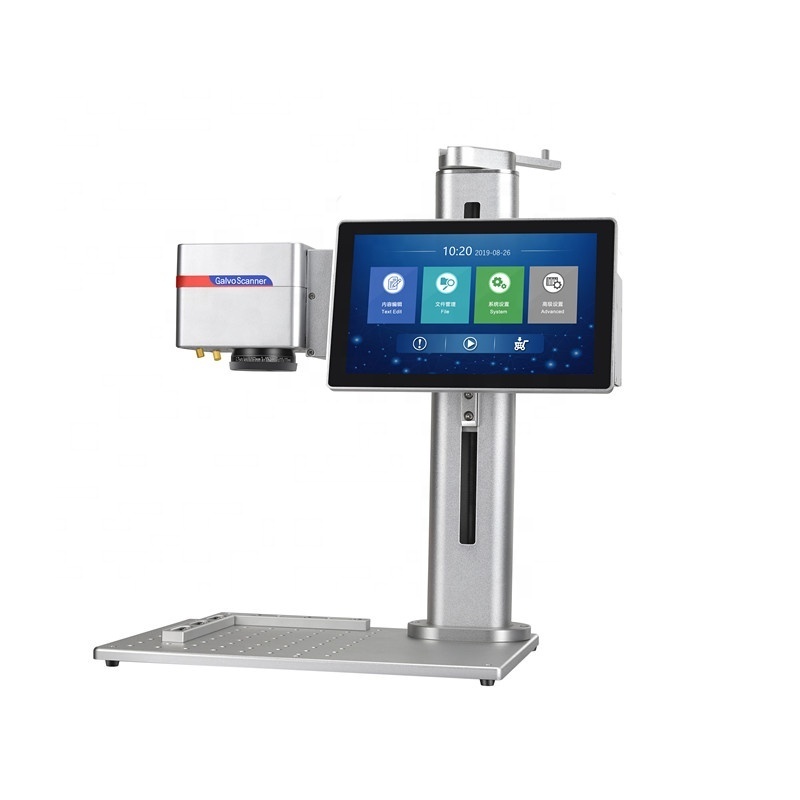

10Inch Touch Screen date code marking laser leather carton box aluminum pvc pipe laser printing machine
1.Multi-scenario application, maintenance-free, consumables-free and cannot be wiped off
2.Industrial field lens/intelligent focus preview positioning/high-precision engraving
3.10-inch high-definition capacitive touch screen/simple operation
4.operating system, no need to connect to a computer/edit at will
5.Adjustable laser intensity/diversified content/precise positioning
6.Can print any area within 80x80mm or 110x110mm
7.Print at any time/commercial marking/store customization/DIY, etc.
Technical Parameter
|
item
|
20W Desktop fiber laser marking machine
|
|
Laser wavelength
|
80*80mm or 110X110mm
|
|
Touch screen
|
10inch HD touch screen
|
|
Laser wavelength
|
1064±5nm
|
|
Whole machine power
|
200w
|
|
Communication interface
|
sensor, synchronizer, USB, RS232, network port (optional), WIFI (optional)
|
|
Supported QR code type
|
QR,PDF417,DATAMATRIX ,GS1
|
|
Supported bar code type
|
UPCA、UPCE、EAN13、EAN8、INT25、CODE39、CODE128、EAN128、GS1
|
|
Print material
|
Surfaces of metal, stainless steel, carbon steel, alumina, aluminum alloy, copper, wood, cartons, building materials, electronics,
packaging bags, plastics, etc. |
|
Print content
|
Text, barcode, QR code (change counters, time variables, etc. can be inserted), tables, pictures, counters, time and
date (can be changed) |
|
Language Support
|
Chinese, English, Russian, French, German, Arabic, Spanish, Portuguese, Malay, Ukrainian ect..
|
|
Control way
|
Buttons, foot pedals, sensors, network and WIFI remote control (optional function), RS232 (optional function)
|
|
Machine size
|
working platform :47*37*25cm,Host chassis :28*31*12cm
|
