Quick Details
-
Voltage:
-
220V/380V/460v
-
Dimension(L*W*H):
-
Depend on the model
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Installation:
-
offer foundation drawing and technical help
-
Motor:
-
Chinese famous brand,or as required
-
Capacity:
-
50-800 t/h
-
Feeding size:
-
0-400mm
-
Discharge size:
-
0--100mm
-
Color:
-
Customers' Requirements, Yellow, Blue, White
-
Material of screen mesh:
-
Manganese Steel
-
Material of frame:
-
carbon steel, steel
-
Screen mesh size:
-
3-50mm
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Jinma
-
Voltage:
-
220V/380V/460v
-
Dimension(L*W*H):
-
Depend on the model
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Installation:
-
offer foundation drawing and technical help
-
Motor:
-
Chinese famous brand,or as required
-
Capacity:
-
50-800 t/h
-
Feeding size:
-
0-400mm
-
Discharge size:
-
0--100mm
-
Color:
-
Customers' Requirements, Yellow, Blue, White
-
Material of screen mesh:
-
Manganese Steel
-
Material of frame:
-
carbon steel, steel
-
Screen mesh size:
-
3-50mm

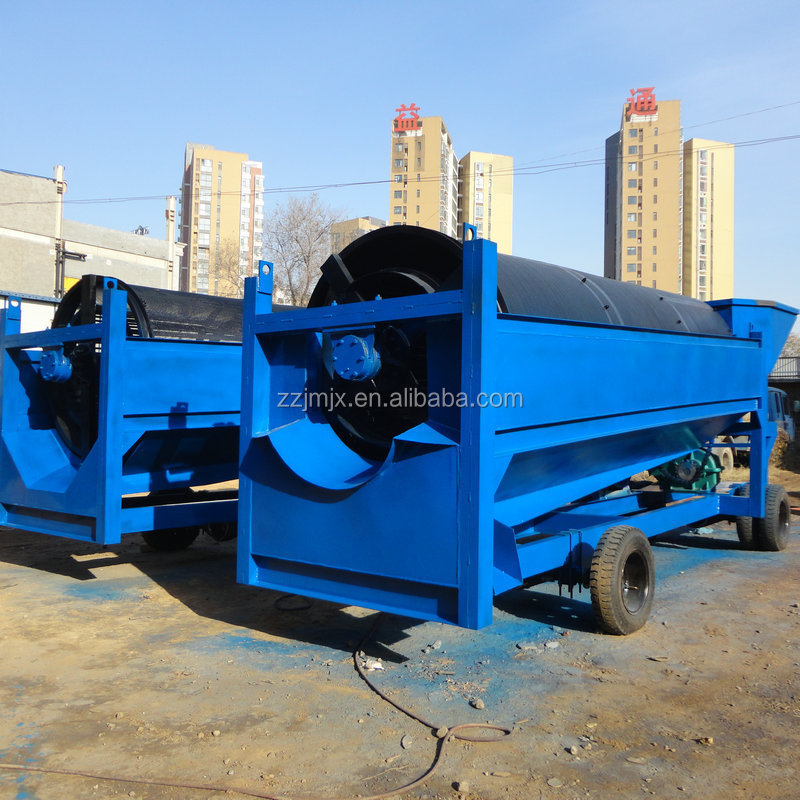

Small Scale Gold Mining Machine Mini Gold Trommel Wash Plant For Sale
Small Scale Gold Mining Machine Mini Gold Trommel Wash Plant For Sale application:
This series of trommel Screens are widely used in processing minerals such as ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc, Gold and Silver etc.
Click to contact us with specifications and flow chart.
Small Scale Gold Mining Machine Mini Gold Trommel Wash Plant For Sale working principle:
After the materials are fed into the drum, the materials are classified, while the bigger materials flow forward along the inclination of drum and was classified through different mesh screens gradually. Classified small materials fell into respective bunker, and are delivered into finished product stack through manpower or belt conveyor.
Technical parameters of Small Scale Gold Mining Machine Mini Gold Trommel Wash Plant For Sale
|
Model |
Capacity |
Power |
Screen Diameter |
Screen Length |
Discharge Size |
Input Size |
Dimension
|
Weight |
|
(t/h) |
(kw) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg) |
|
|
GTS1015 |
50 |
3.0 |
1000 |
1500 |
0~100 |
≤300 |
2600×1400×1700 |
2200 |
|
GTS1020 |
100 |
4.0 |
1000 |
2000 |
3390×1400×2140 |
2800 |
||
|
GTS1225 |
160 |
5.5 |
1200 |
2500 |
4146×1600×2680 |
4200 |
||
|
GTS1530 |
250 |
7.5 |
1500 |
3000 |
4460×1900×2820 |
5100 |
||
|
GTS1545 |
350 |
11 |
1500 |
4500 |
≤400 |
5960×1900×3080 |
6000 |
|
|
GTS1848 |
450 |
15 |
1800 |
4800 |
6500×2350×4000 |
7500 |
||
|
GTS2055 |
600 |
22 |
2000 |
5500 |
7500×2550×4800 |
9600 |
||
|
GTS2265 |
800 |
30 |
2200 |
6500 |
8500×2750×5000 |
12800 |
Notes:we could provide the model as the customers' requirement. In addition,we could provide the whole complete line of gold selecting.
Mini Gold Trommel Wash Plant For Sale with discharge belt conveyor, diesel generator, eletric cabinet, mobile wheels, water pump, etc...
Small Scale Gold Mining Machine Mini Gold Trommel Wash Plant For Sale working site
GTS-1125 Gold Trommel Wash Plant For Sale to Indonesia
GTS-1548 gold trommel wash plant for Hongkong client
GTS-2260 gold trommel wash plant with grizzly feeding hopper to Australia
Different screen mesh size for customers' choices
| Payment terms |
|
We usually use T/T, L/C |
|
T/T:T/T 30% in advance, the balance be paid after inspection before the delivery |
|
Before delivery, we will send you the pictures of finished machines and welcome you to come to our factory for inspection |
|
Way of packing |
|
FCL&LCL export standard in 20/40feet container |
|
FCL:Sea-worthy package,machine are fixed in container and the spare parts are packed in wooden boxes |
|
Shipping |
|
MSK/MSC/APL/EMC/PIL and so on |
|
By air shipment, by courier express |
|
Warranty |
|
12-18 months under normal use except for wearing parts |
