Quick Details
-
Brand Name:
-
C i s c o
-
Model Number:
-
WS-C3850-24U-E
-
Place of Origin:
-
Henan, China
-
Flash Memory:
-
2G
-
Model:
-
WS-C3850-24U-E
-
Shipping:
-
DHL UPS FEDEX
-
Default primary AC power supply:
-
PWR-C5-125WAC
-
Type:
-
C3850 24-port Switch
-
Condition:
-
NIB Original
-
Dimensions (H x W x D):
-
17.6*16.1*1.7 in
-
Stacking bandwidth:
-
68 Gbps
-
Device Type:
-
12 Port Gigabit SFP+ IP Base Switch
-
Warranty:
-
1year
Quick Details
-
Transmission Rate:
-
92G
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
68 Gbps
-
Brand Name:
-
C i s c o
-
Model Number:
-
WS-C3850-24U-E
-
Place of Origin:
-
Henan, China
-
Flash Memory:
-
2G
-
Model:
-
WS-C3850-24U-E
-
Shipping:
-
DHL UPS FEDEX
-
Default primary AC power supply:
-
PWR-C5-125WAC
-
Type:
-
C3850 24-port Switch
-
Condition:
-
NIB Original
-
Dimensions (H x W x D):
-
17.6*16.1*1.7 in
-
Stacking bandwidth:
-
68 Gbps
-
Device Type:
-
12 Port Gigabit SFP+ IP Base Switch
-
Warranty:
-
1year
Products Description

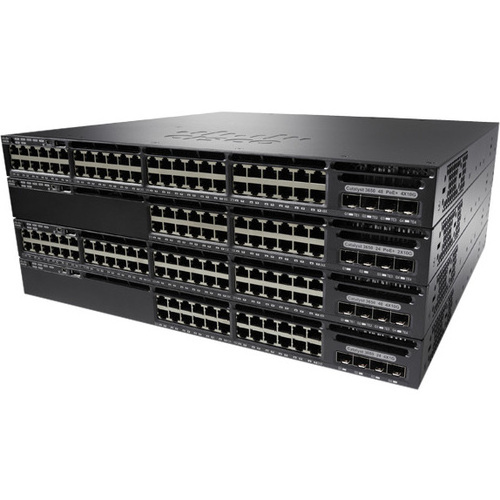

Catalyst 3850 Series Switch
The 3850 series of Catalyst switches is a superior option for advanced converged wired/WiFi networks within medium-to-large scale
operations. These are designed for organizations with the need for large data pipes - up to 40Gbps per switch - and a single
integrated solution for managing their mixed network through a single, powerful architecture.
The Catalyst 3850 line has 24 or 48 Gigabit Ethernet ports, along with a modular design for the uplinks, allowing for
configurations of either 4x Gigabit Ethernet, 2x 10-Gigabit Ethernet, or 4x 10- Gigabit Ethernet uplinks. Two specialty 3850
models allow for either 12 or 24 SFP+ ports for complete flexibility. The built-in WiFi access point controller can handle up to
50 access points, and 2,000 concurrent users.
APPEARANCE
All switches ship with one of the five power supplies (350WAC, 715WAC, 750WAC, 1100WAC, or 440WDC).
PRODUCT SPECIFICATIONS OF CATALYST 3850 SERIES
operations. These are designed for organizations with the need for large data pipes - up to 40Gbps per switch - and a single
integrated solution for managing their mixed network through a single, powerful architecture.
The Catalyst 3850 line has 24 or 48 Gigabit Ethernet ports, along with a modular design for the uplinks, allowing for
configurations of either 4x Gigabit Ethernet, 2x 10-Gigabit Ethernet, or 4x 10- Gigabit Ethernet uplinks. Two specialty 3850
models allow for either 12 or 24 SFP+ ports for complete flexibility. The built-in WiFi access point controller can handle up to
50 access points, and 2,000 concurrent users.
APPEARANCE
All switches ship with one of the five power supplies (350WAC, 715WAC, 750WAC, 1100WAC, or 440WDC).
PRODUCT SPECIFICATIONS OF CATALYST 3850 SERIES
|
Performance Numbers for All Switch Models
|
|
|
|
Switching capacity
|
176 Gbps on 48-port Gigabit Ethernet model
|
|
|
|
92 Gbps on 24-port Gigabit Ethernet model 68 Gbps on 12-port Gigabit Ethernet model
|
|
|
|
640 Gbps on 24-port Multigigabit Ethernet model
|
|
|
|
472 Gbps on 48-port Multigigabit Ethernet model
|
|
|
|
1280 Gbps on 48-port 10 Gigabit Ethernet SFP+ model
|
|
|
|
640 Gbps on 24-port 10 Gigabit Ethernet SFP+ model
|
|
|
|
320 Gbps on 12-port 10 Gigabit Ethernet SFP+ model
|
|
|
Stacking bandwidth
|
480 Gbps
|
|
|
Total number of MAC addresses
|
32,000
|
|
|
Total number of IPv4 routes
|
24,000
|
|
|
(ARP plus learned routes)
|
|
|
|
DRAM
|
4 GB (8 GB on 48-port SFP+ model)
|
|
|
Flash
|
2 GB (4 GB on 12-port and 24-port SFP+ models, 8 GB on 48-port SFP+ model)
|
|
|
VLAN IDs
|
4,000
|
|
|
Total switched virtual interfaces (SVIs)
|
1,000
|
|
|
Jumbo frame
|
9198 bytes
|
|
|
Total routed ports per 3850 stack
|
208
|
|
|
Wireless
|
|
|
|
Number of access points per switch/stack
|
100
|
|
|
Number of wireless clients per switch/stack
|
2000
|
|
|
Total number of WLANs per switch
|
64
|
|
|
Wireless bandwidth per switch
|
Up to 40 Gbps on 48-port Gigabit Ethernet model
|
|
|
|
Up to 20 Gbps on 24-port Gigabit Ethernet model
|
|
|
Supported Aironet access point series
|
3600, 3500, 2600, 1600, 1260, 1140, 1040
|
|
|
Forwarding Rate of Switch Models (with 2 x 10 Gigabit + 2 x 1 Gigabit Ethernet uplinks for 12-Port and 24-Port Models and 4 x 10Gigabit Ethernet Uplinks for 48-Port Models)
|
|
|
|
Model
|
Forwarding Rate
|
|
|
WS-C3850-12S
|
50.5 Mpps
|
|
|
WS-C3850-24T
|
68.4 Mpps
|
|
|
CATALYST 3850 SERIES BASIC ORDERING INFORMATION
|
|
|
|
WS-C3850-48P-L
|
Catalyst 3850 48 Port PoE LAN Base.
|
|
|
WS-C3850-48T-S
|
Catalyst 3850 48 Port Data IP Base.
|
|
|
WS-C3850-24T-S
|
Catalyst 3850 24 Port Data IP Base.
|
|
|
WS-C3850-48P-E
|
Catalyst 3850 48 Port PoE IP Services.
|
|
|
WS-C3850-24P-L
|
Catalyst 3850 24 Port PoE LAN Base.
|
|
|
WS-C3850-48T-L
|
Catalyst 3850 48 Port Data LAN Base.
|
|
|
WS-C3850-24P-E
|
Catalyst 3850 24 Port PoE IP Services.
|
|
|
WS-C3850-48P-S
|
Catalyst 3850 48 Port PoE IP Base.
|
|
|
WS-C3850-24T-L
|
Catalyst 3850 24 Port Data LAN Base.
|
|
|
WS-C3850-48T-E
|
Catalyst 3850 48 Port Data IP Services.
|
|
|
WS-C3850-24P-S
|
Catalyst 3850 24 Port PoE IP Base.
|
|
|
WS-C3850-24T-E
|
Catalyst 3850 24 Port Data IP Services.
|
|
|
WS-C3850-48F-E
|
Catalyst 3850 48 Port Full PoE IP Services.
|
|
|
WS-C3850-48F-S
|
Catalyst 3850 48 Port Full PoE IP Base.
|
|
|
WS-C3850-48F-L
|
Catalyst 3850 48 Port Full PoE LAN Base.
|
|
|
WS-C3850-48U-S
|
Catalyst 3850 48 Port UPOE IP Base.
|
|
|
WS-C3850-12S-S
|
Catalyst 3850 12 Port GE SFP IP Base.
|
|
|
WS-C3850-12S-E
|
Catalyst 3850 12 Port GE SFP IP Services.
|
|
|
WS-C3850-24S-E
|
Catalyst 3850 24 Port GE SFP IP Services.
|
|
|
WS-C3850-24S-S
|
Catalyst 3850 24 Port GE SFP IP Base.
|
|
|
WS-C3850-12X48U-S
|
Catalyst 3850 48 Port (12 mGig+36 Gig) UPoE IP Base.
|
|
|
WS-C3850-24XS-S
|
Catalyst 3850 24 Port 10G Fiber Switch IP Base.
|
|
|
WS-C3850-24XS-E
|
Catalyst 3850 24 Port 10G Fiber Switch IP Services.
|
|
|
WS-C3850-12XS-E
|
Catalyst 3850 12 Port 10G Fiber Switch IP Services.
|
|
|
WS-C3850-12XS-S
|
Catalyst 3850 12 Port 10G Fiber Switch IP Base.
|
|
|
WS-C3850-24XU-S
|
Catalyst 3850 24 mGig Port UPoE IP Base.
|
|
|
WS-C3850-48XS-S
|
Catalyst 3850 48 Port 10G Fiber Switch IP Base.
|
|
|
WS-C3850-24PW-S
|
Catalyst 3850 24 Port PoE with 5 AP license IP Base.
|
|
|
WS-C3850-48PW-S
|
Catalyst 3850 48 Port Full PoE w/ 5 AP license IP Base.
|
|
|
WS-C3850-48U-E
|
Catalyst 3850 48 Port UPOE IP Services.
|
|
|
WS-C3850-24U-S
|
Catalyst 3850 24 Port UPOE IP Base.
|
|
|
WS-C3850-24U-E
|
Catalyst 3850 24 Port UPOE IP Services.
|
|
|
WS-C3850-48U-L
|
Catalyst 3850 48 Port UPOE LAN Base.
|
|
|
WS-C3850-24U-L
|
Catalyst 3850 24 Port UPOE LAN Base.
|
|
|
WS-C3850-12X48U-L
|
Catalyst 3850 48 Port (12 mGig+36 Gig) UPoE LAN Base.
|
|
|
WS-C3850-16XS-E
|
Catalyst 3850 16 Port 10G Fiber Switch IP Services.
|
|
|
WS-C3850-16XS-S
|
Catalyst 3850 16 Port 10G Fiber Switch IP Base.
|
|
|
WS-C3850-32XS-S
|
Catalyst 3850 32 Port 10G Fiber Switch IP Base.
|
|
|
WS-C3850-32XS-E
|
Catalyst 3850 32 Port 10G Fiber Switch IP Services.
|
|
|
WS-C3850-24XU-L
|
Catalyst 3850 24 mGig Port UPoE LAN Base.
|
|
|
WS-C3850-24XU-E
|
Catalyst 3850 24 mGig Port UPoE IP Services.
|
|
|
WS-C3850-48XS-E
|
Catalyst 3850 48 Port 10G Fiber Switch IP Services.
|
|
