Quick Details
-
Model Number:
-
AXDVKVM8
-
Place of Origin:
-
Henan, China
-
Warranty:
-
3 Years/36 Months
-
OperationTemperature:
-
-25 ~+60°C,-13~+140°F
-
Storage Tempareture:
-
-40 ~+80°C,-40~+176°F
-
Power supply:
-
AC100V-240V,47-63Hz
-
MTBF:
-
≥100000H
-
Compatible system:
-
Dos/Windows series, Linux, UnixMac OS 8.6/9/10, SUN Solaris 8/9
-
Support:
-
Cascade,Over IP,Password protection
-
Interface:
-
HDMI,VGA,Lan
-
Management style:
-
Hotkeys, panel keys, OSD
Quick Details
-
Monitor Connections:
-
2 Ports
-
Resolution:
-
1920 x 1080
-
Brand Name:
-
Axtron
-
Model Number:
-
AXDVKVM8
-
Place of Origin:
-
Henan, China
-
Warranty:
-
3 Years/36 Months
-
OperationTemperature:
-
-25 ~+60°C,-13~+140°F
-
Storage Tempareture:
-
-40 ~+80°C,-40~+176°F
-
Power supply:
-
AC100V-240V,47-63Hz
-
MTBF:
-
≥100000H
-
Compatible system:
-
Dos/Windows series, Linux, UnixMac OS 8.6/9/10, SUN Solaris 8/9
-
Support:
-
Cascade,Over IP,Password protection
-
Interface:
-
HDMI,VGA,Lan
-
Management style:
-
Hotkeys, panel keys, OSD
| 1U Rack KVM switch | ||||
| Interface | VGA | Cat | HDMI | |
| Number of interfaces | 1/4/8/16 | 8/16/24/32 | 4/8/16 | |
| Resolution | Support up to 2048 x 1536 / DDC2B | Support up to 4096 x 2160@60Hz | ||
| Switching mode | Button /0SD menu/hotkey | Button/hotkey | ||
| Select Configuration | Local control, over IP control | |||
| Power supply mode | Input voltage :AC 110V-240V 50-60Hz Output voltage :DC 12V Power :10W | |||
| Storage temperature | ·-30℃~70℃ | |||
| Operating temperature | ·-10℃~60℃ | |||
| Humidity | 0%~80% RH | |||
| Switching scan time | 1-255 seconds (OSD adjustable) | |||
| Applicable cabinet | 800-1200MM | |||
| Material of box body | High strength corrosion resistant steel plate | |||
| Support system | Dos/Windows,Linux,UnixMac OS 8.6/9/10,SUN Solaris 8/9 | |||
| Industrial computer support | Supports IBM, DELL, HP,SUN,Lenovo, advantech, EVOC, etc | |||

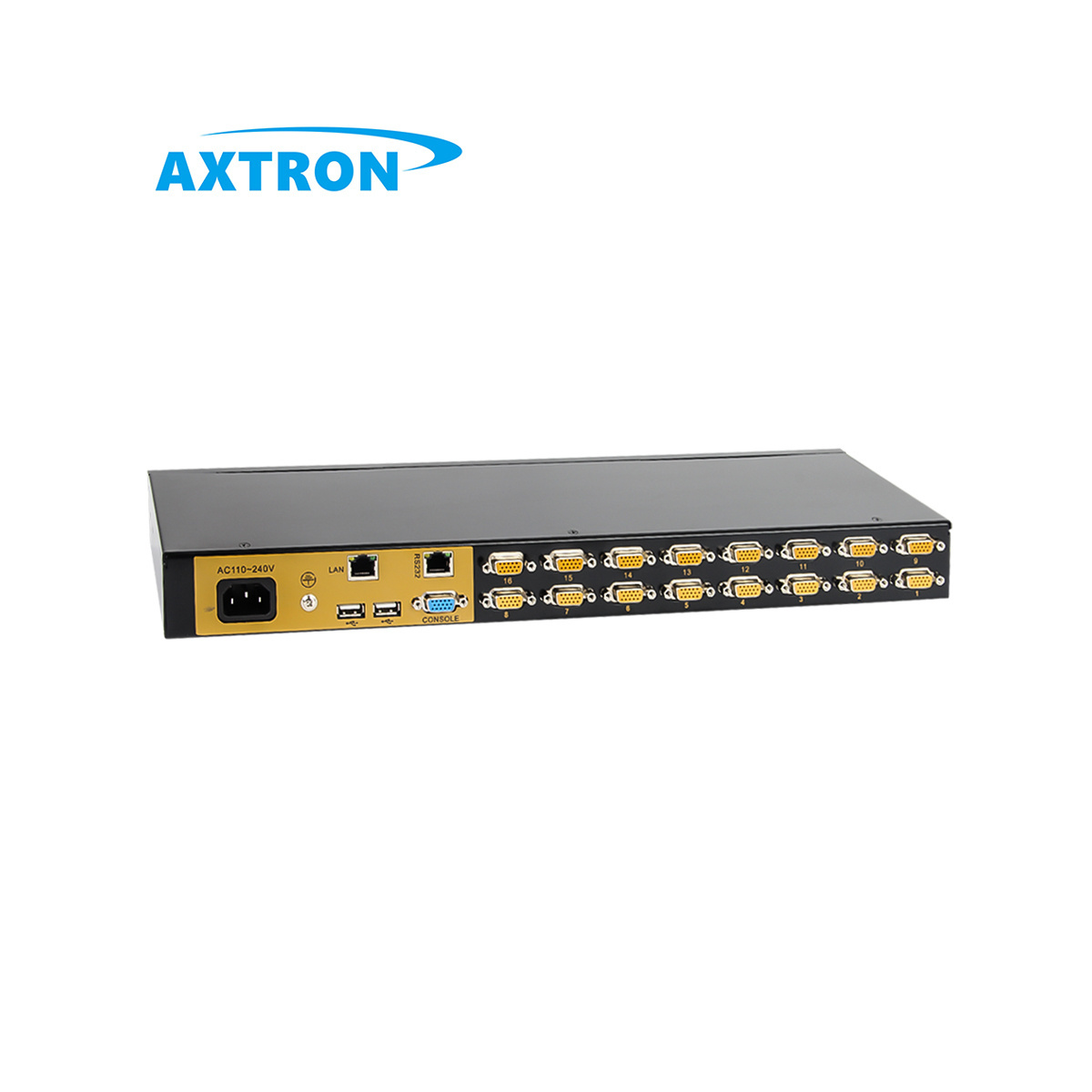

The 1U rack-mounted switcher allows users to switch between multiple computers from a single USB keyboard and mouse. It also provides a 4-port USB Hub function. That is, USB keyboard and mouse data are switched quickly and seamlessly through the KVM cable. At the same time, USB Hub allows each computer to access two additional USB2.0 general purpose peripheral devices. The installation of the device is simple and convenient, just plug the cable into its corresponding port. No software configuration is required and there are no incompatibilities.
-
1. Only authorized users can view and manage online computers
-
2. The dual interface PS/2 /USB keyboard and mouse switch is connected to the control computer
-
3. USB HUB function can be realized through the front USB2.0 interface
-
4. Easily switch between servers with hotkeys and panel presses
-
5. Provides automatic scanning mode to continuously monitor the user's choice The host of
-
6. Supports hotplugging - servers can be added or removed at any time without power down
-
7. Name the server and vaguely enter the SN number to quickly locate and select the server security features you need
-
8. A single group of control end manages 4 servers, can cascade multiple devices, and can manage up to 128 computers
-
9. Support to connect two monitors at the same time, support audio output
-
10.Integrated shelf and desktop in one USB multi-function switch, support complete DDC2B function, not switch computer can also detect screen model keyboard hotkeys and OSD key switch mode 1U height, 19 "standard shelf structure
How long is the warranty on your product?
Our product warranty is 1 years.
Can you accept customized products? OEM and ODM?
We accept customization, our mature R&D team can accept all kinds of customization
About customized products, can I customize them according to the use environment?
Our professional engineering team has provided solutions to many Different use requirements clients.
How can i get a sample?
You can contact us directly and we will arrange samples for you.
Can your products be used in the international rail transit industry?
Yes, we can. Our certificates are certified by formal institutions. Our products guarantee reliability, safety and environmental protection.
Can you provide product inspection report service and online video tracking inspection service?
We provide product test report, you can also directly through the phone video tracking product performance test, we will provide you with test project information. However, please note that long time test items need to make an appointment.
