Quick Details
-
Brand Name:
-
Sea-lion
-
Use:
-
Container / Bottle Cleaning
-
Heating type:
-
Steam or electric heated
-
Capacity:
-
50 kg
-
Voltage:
-
Customized
-
Description:
-
Stainless Steel Laundry Washing Equipment
-
Function:
-
Washing Extracting
-
Installation:
-
Installation
-
Operation:
-
Automatic Computer Control
-
Used for:
-
Hotel.factory .laundry Hospital
-
Usage:
-
Automatic
-
Material:
-
cloths, linen
-
Power:
-
4 kW
-
Dimension(L*W*H):
-
1550*1353*1755 mm
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Free spare parts
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sea-lion
-
Use:
-
Container / Bottle Cleaning
-
Heating type:
-
Steam or electric heated
-
Capacity:
-
50 kg
-
Voltage:
-
Customized
-
Description:
-
Stainless Steel Laundry Washing Equipment
-
Function:
-
Washing Extracting
-
Installation:
-
Installation
-
Operation:
-
Automatic Computer Control
-
Used for:
-
Hotel.factory .laundry Hospital
-
Usage:
-
Automatic
-
Material:
-
cloths, linen
-
Power:
-
4 kW
-
Dimension(L*W*H):
-
1550*1353*1755 mm

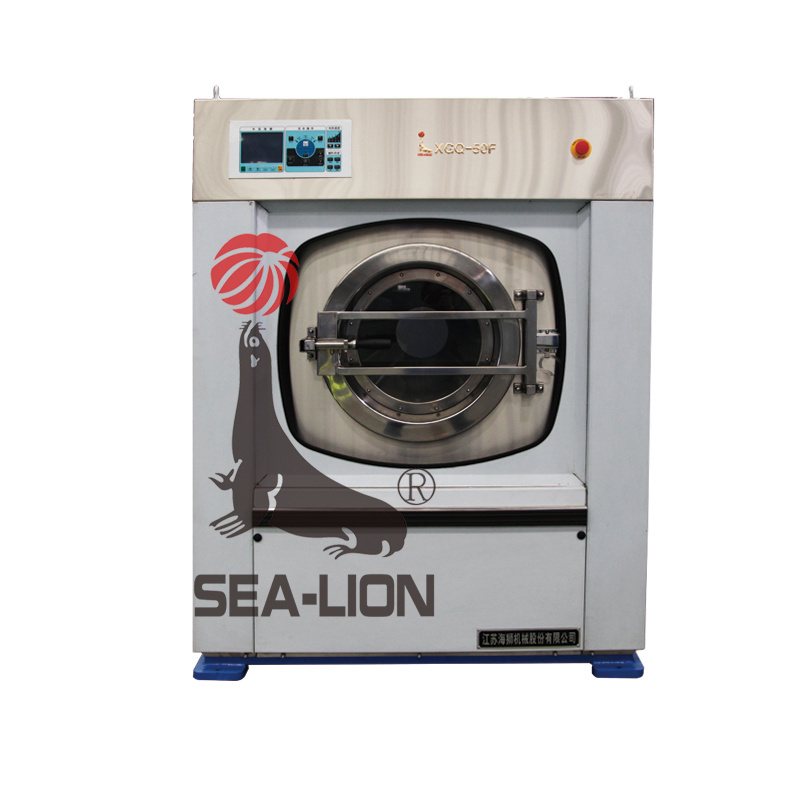

Sea Lion brand XGQ series Full Suspension Auto Industrial Washing Machine Washer Extractor
| Describe | XGQ-25F | XGQ-50F | XGQ-80F | XGQ-100F | XGQ-130F | XGQ-160F | |
| Rated capacity | kg | 25 | 50 | 80 | 100 | 130 | 160 |
|
Inner drum*length |
mm | 810*560 | 990*700 | 1150*543 | 1240*882 | 1350*966 | 1460*1032 |
| Outer drum*length | mm | 864*618 | 1054*759 | 1218*922 | 1324*953 | 1434*1044 | 1544*1104 |
|
Washing/ balancing speed |
rpm | 43/75 | 40/60 | 30/60 | 30/60 | 30/60 | 27/55 |
| medium/high extracting | rpm | 430/830 | 375/750 | 360/700 | 350/680 | 310/640 | 300/630 |
| Wash cycle time | min | 45 | 45 | 45 | 45 | 45 | 45 |
| Motor power | kW | 3 | 4 | 6.5 | 7.5 | 15 | 22 |
| Electric heater power | kW | 22.5 | 45 | 45 | 45 | -- | -- |
| Steam pipe | DN | 20 | 20 | 25 | 25 | 40 | 40 |
| Cold/hot water inlet | DN | 2*25 | 2*25 | 2*40 | 2*40 | 2*50 | 2*50 |
| Water consumption/load | kg | 600 | 827 | 1200 | 1435 | 1900 | 2000 |
| Steam consumption/load | kg | 4 | 20 | 45 | 60 | 60 | 70 |
|
Electric consumption (steam/electric) |
kW.h | 0.9/5 | 1.6/7 | 1.6/10.2 | 2.4/10.5 | 2.0 | 2.2 |
| Water pressure | Mpa | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 |
| Steam pressure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| compressed air pressure | Mpa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Dimension | mm |
1355/1190 /1585 |
1550/1353 /1755 |
1945/1600 /1930 |
1982/1718 /2020 |
2245/1850 /2075 |
2310/1915 /2130 |
| Weight | kg | 1055 | 1494 | 2570 | 2812 | 4012 | 4476 |
Jiangsu Sea-lion Machinery Co., Ltd. is the oldest manufacturer of industrial laundry machines in China possessing a wealth of experience in manufacturing from years of research and development. The Sea-lion factory campus in Zhangjiagang is an impressive vertically integrated design and production facility with a building area of 166,000 SQM and total assets of 520 million RMB.
Sea-lion has the largest product range and most comprehensive variety of laundry machinery in China, including 10 series, 20 varieties and more than 100 types with annual production capacity of 15,000 machines. Sea-lion’s annual sales volume has risen to over 600 million RMB with sales to over 90 countries and territories.
In a world of seemingly unsurmountable challenges, Sea-lion’s perseverance will continue to bring success. Over the past 50 years, Sea-lion is in the era of revolution with many opportunities and challenges. Sea-lion is willing to work together with friends from all sectors of the world to create a better tomorrow by sincere cooperation, win-win development and construction. We believe that we can revitalize the national industry and climb the world peak.
Together, we create a clean world!
