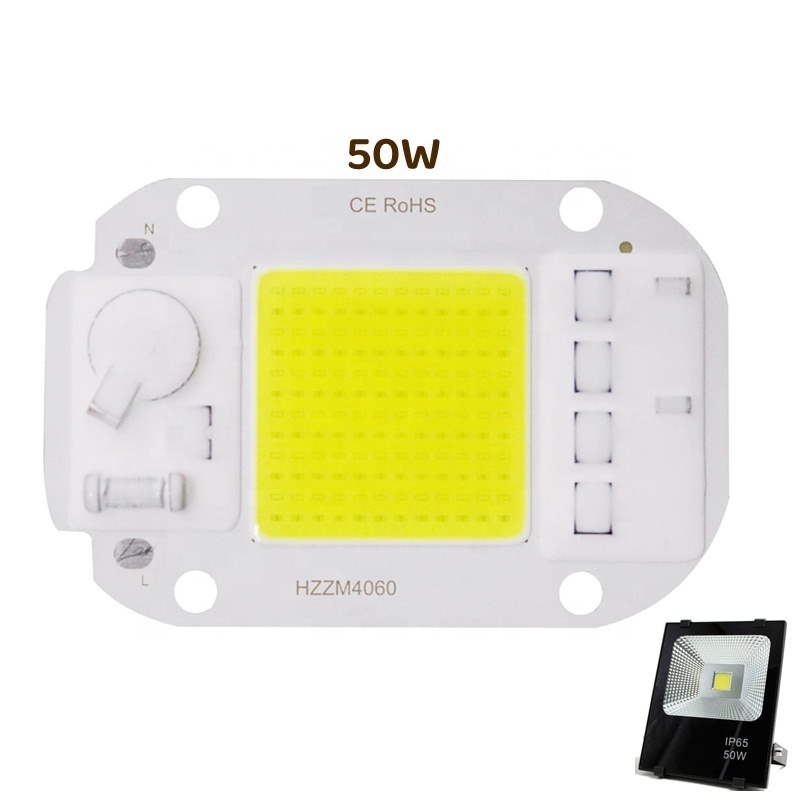

F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip
F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip

F6040 LED COB Chip 20W 30W 50W Outdoor led modules Smart IC Chip 220V COB LED Street Light Module 50W LED Chip

FOB Reference Price: Get Latest Price
≥2 Pieces
US $0.75
≥1000 Pieces
US $0.72
≥5000 Pieces
US $0.68
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Luminous Efficacy(lm/w):
100
Input Voltage(V):
AC 110V ( ± 10%) 220V ( ± 10%)
Luminous Flux(lm):
5000
Optical Attenuation(%):
2, 2
Power:
50W, 20W, 30W
Viewing Angle(°):
120
Color Temperature:
1400-6500K
Operating Temperature(℃):
-20 - 80
Place of Origin:
Guangdong, China
Brand Name:
Newspectrum
Product name:
COB LED Chip
PF:
>0.9
Power Dissipation:
0.01
Application:
floodlight,spotlight,plant grow light
Lamp Luminous Efficiency(lm/w):
100
Certification:
ce,RoHS

Quick Details

Color Temperature(CCT):
1400-6000K
Warranty(Year):
2-Year
Support Dimmer:
Yes
Luminous Efficacy(lm/w):
100
Input Voltage(V):
AC 110V ( ± 10%) 220V ( ± 10%)
Luminous Flux(lm):
5000
Optical Attenuation(%):
2, 2
Power:
50W, 20W, 30W
Viewing Angle(°):
120
Color Temperature:
1400-6500K
Operating Temperature(℃):
-20 - 80
Place of Origin:
Guangdong, China
Brand Name:
Newspectrum
Product name:
COB LED Chip
PF:
>0.9
Power Dissipation:
0.01
Application:
floodlight,spotlight,plant grow light
Lamp Luminous Efficiency(lm/w):
100
Certification:
ce,RoHS
Product Description
Class
Item
DOB2575-20W
DOB2575-30W
DOB2575-50W
Electrical Parameter
InputVoltage
AC 180-300V(50/60 Hz)
Working Voltage
AC 220-240V(50/60 Hz)
Power
20W
30W
50W
Power Factor
>0.9
>0.9
>0.9
Surge Tolerance
4 KV L/N PE
4 KV L/N PE
4 KV L/N PE
Optical Parameter
Luminous Efficiency
100 lm/W
100 lm/W
100 lm/W
CCT
1400K-6500K
Ra
80
Luminescence Angle
120°
120°
120°
Parameter
Size
40mm*60mm
Luminous Area
25mm*25mm
Base Board
Al MCPCB,Thermal resistance>1.5
Thickness
1.6mm
1.6mm
1.6mm
Environment
Work Temperature
-40～80°C（基板温度）(PCB Temperature)
Life Time
>50000(hours)

Features

① :LED flip chip assembly technology. Good heat dissipation effect, higher light output rate, long life ②: High brightness, our led chips are bigger than others ③: Smart IC Fit NO Driver
④: Constant current and constant power control
⑤: NTC sensor for pcb overheat protection
⑥: Voltage-regulator for ic vdd protectio
⑦: Driver IC, over voltage and over current control
⑧: It can use led dimmer or SCR dimmer to dimming it
⑨: MOV for surge protection>4000V passed ⑩: 1000V Bridge rectifier
Specification

Flip Chip

A1:No lead connection required
A2: No line shading, higher light output rate
A3: Direct bonding, good heat dissipation effect
A4: Suitable for high-power light sources
A5: Longer life

Wire Bonding Chip

A1 :Need lead connection
A2 :The front electrode blocks light, and the light output rate is low
A3 :Insulating glue solid crystal, low heat dissipation efficiency
A4 :Only suitable for small current
A5 :Wired occupies volume, small space
Focus on AC/COB for 10 years
Different spectrum can be customized for different plants.
The professionally customized full-spectrum LED plant photosensitive lamp beads can have higher PPFD and PAR than the conventional full-spectrum,
And the efficiency is also higher.

For customization，
Click on “Chat Now” pls！
