Sludge Scraper Equipment Lamella Clarifier For Industrial Water Clarifier Mud Scraper Machine

Sludge Scraper Equipment Lamella Clarifier For Industrial Water Clarifier Mud Scraper Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $10000

≥4 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Plywood Wooden

Weight:: Depends on your project

Size:: Depends on your project

Power:: Depends on your project

Productivity:: Depends on your project

Weight (KG):: 1000 kg

Product name:: Mud Scraper Sewage Machine

Application:: Mud Suction

Type:: Water Filter Parts

Function:: Filtering Suspended Matter

Capacity:: 50000m³/d

Core Components Power:: 40000N

Advantage:: Long Service Life

Brand:: Maishan

After Warranty Service:: 1 year

Color:: White

Quick Details

Marketing Type:: New Product 2023

Place of Origin:: Jiangsu, China

Brand Name:: Maishan

Material:: Plywood Wooden

Weight:: Depends on your project

Size:: Depends on your project

Power:: Depends on your project

Productivity:: Depends on your project

Weight (KG):: 1000 kg

Product name:: Mud Scraper Sewage Machine

Application:: Mud Suction

Type:: Water Filter Parts

Function:: Filtering Suspended Matter

Capacity:: 50000m³/d

Core Components Power:: 40000N

Advantage:: Long Service Life

Brand:: Maishan

After Warranty Service:: 1 year

Color:: White

Product Description

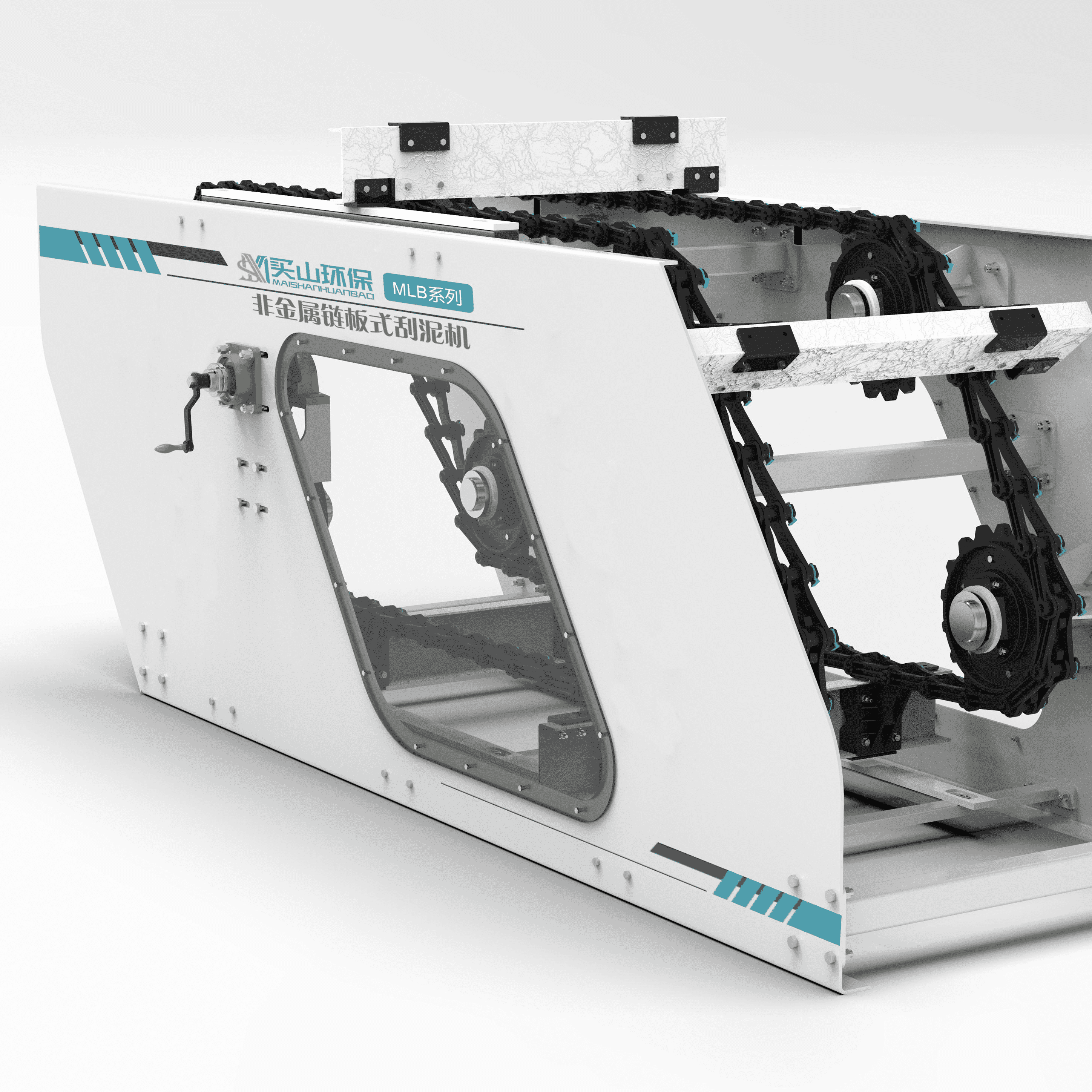

Chain plat mud scraper sewage machine consists of scraper, chain, sprocket and drive device, etc. The two ends of the scraper are mounted on the two sides of the chain, supported by the driven wheels and guide rails, and return to the surface of the pool skimming. mud scraper sewage machine moves along the entire width of the tank, and pollutants will be hung in the sludge tank. Scrape the sludge into the sludge hopper.

The Chain Plat mud scraper machine is suitable for use in sedimentation tanks, flocculation tanks or as a sand lifter.

Product Features

1.Excellent installation quality, easy maintenance, and long service life.

2.Energy saving, plastic components are lightweight and easy to move, with low power consumption, typically ranging

from 0.25 to 0.55 kw.

3.The idler wheel (guide wheel) can be adjusted for calibration. The length between chains can also be adjusted based

on the chain pitch.

4.The plastic bottom rail scraper can prevent derailment, and can be adjusted for minor issues.

5.Low energy consumption and low operating costs.

Product Components

1.Core Component：Mud Scraper Chain

MLB-150-S Drive Chain

Well-designed non-metallic chain, precision manufactured with high-strength reinforced nylon material. Adapt to corrosive environment and high concentration sludge working conditions.

* High strength, hydrolysis resistant

*Absorb water without deformation

*U ltraviolet， a cid and alkali resistant

*C reep resistant

*Resistant to abrasion by mud and sand

This is Drive Chain's inspection report

The report shows that the maximum pull-off force of Drive Chain is 40,000N.

CONNECTING PIN & RETAINING CLIP

Quick and easy installation with "twist and snap" pins and pin clips

The T-shaped locking head effectively prevents the pin from rotating

2.Core Component:Scraper Assembly

MLB-150 Scraper Plate

The choice of scraper is based on the size of the settling tank, the sludge load and the budget of each project. All scrapers are available with a choice of squeegee and scraper attachments to achieve a thorough cleaning of the bottom of the tank.

Matching Components

Anti-friction Component

One runs on a wear strip at the bottom of the scraper and the other runs on a return guide wear strip.

Chain Connecting Part

Cast in one piece from the same material as the chain

Scraper Gasket

Install hard pads between the back of the scraper and the connecting parts to ensure the stability of the scraper.

3.Core Components: Drive Shaft Components

Mud Scraper Driving Sprocket

Mud Scraper Driving Sprocket consists of a stainless steel bearing housing, a stainless steel spindle, a 40-tooth driving sprocket.

DRIVEN SPROCKET

Standardly equipped with 40 complete teeth, used in conjunction with the drive chain. The drive sprocket is 1/3 the weight of a conventional cast iron hub sprocket. The drive sprocket is available in different offset sizes to suit different spindle bases and settling tank designs. Split design for easy installation and maintenance.

Mud Scraper Driving Sprocket

The spindle sprocket of mud scraper adopts the design of chasing teeth, the number of teeth and the driven sprocket are prime numbers of each other. Every two teeth of spindle sprocket corresponds to one chain link, which doubles the service life compared with the sprocket with a single tooth corresponding to one chain link. Split design for easy installation and maintenance. Integral molded chain protection hub reduces wear on chain and sprocket. Machined keyway and set screws are standard to prevent gear slippage and ensure accurate torque transmission.

Mud Scraper Project Installation Site

Specification

item	value
Condition	New
Applicable Industries	Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other, Advertising Company
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Hot Product 2022
Warranty of core components	1 Year
Core Components	Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
Place of Origin	China
Province	Jiangsu
Brand Name	Maishan
Material	Customize to your requirements
Weight	Customize to your requirements
Size	Customize to your requirements
Power	Different
Warranty	1 Year
Productivity	50000m³/d
Weight (KG)	1000kg
Price	Suitable
Speed of delivery	Quick
Product Quality	European Union standard
Type	Sludge suction

Quality Control

1.Before the order to be confirmed. we should check the raw material & colour of color by sample which should be strictly. 2.We will be tracing the different phase of production from the beginning. 3.Every production quantity checked & cleaned before packing. 4.Before product delivery clients could send one QC or point the third party to check the quality. 5.We will try our best to help clients when problem occurred.
