Quick Details
-
Keyword:
-
Keyboard Switch
-
Knock Type:
-
Linear
-
Mechanical Life:
-
50, 000, 000 Cycles
-
Spring:
-
Gold-plated spring
-
Bottom Housing:
-
POM
-
Force:
-
Operating 45g
-
Stem:
-
POM
-
PCB Mounted:
-
5 Pin
-
Contact resistance:
-
200mΩ
Quick Details
-
Model Number:
-
WS-KS-001
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Keyboard Switch
-
Keyword:
-
Keyboard Switch
-
Knock Type:
-
Linear
-
Mechanical Life:
-
50, 000, 000 Cycles
-
Spring:
-
Gold-plated spring
-
Bottom Housing:
-
POM
-
Force:
-
Operating 45g
-
Stem:
-
POM
-
PCB Mounted:
-
5 Pin
-
Contact resistance:
-
200mΩ
WinStar are a professional computer peripherals
OEM/ODM
manufacturer.
•
Fast delivery
•
High quality
•
Market protection
•
Competitive price
Warmly welcome to contact us for
samples
and
factory quotation
!
Products Description

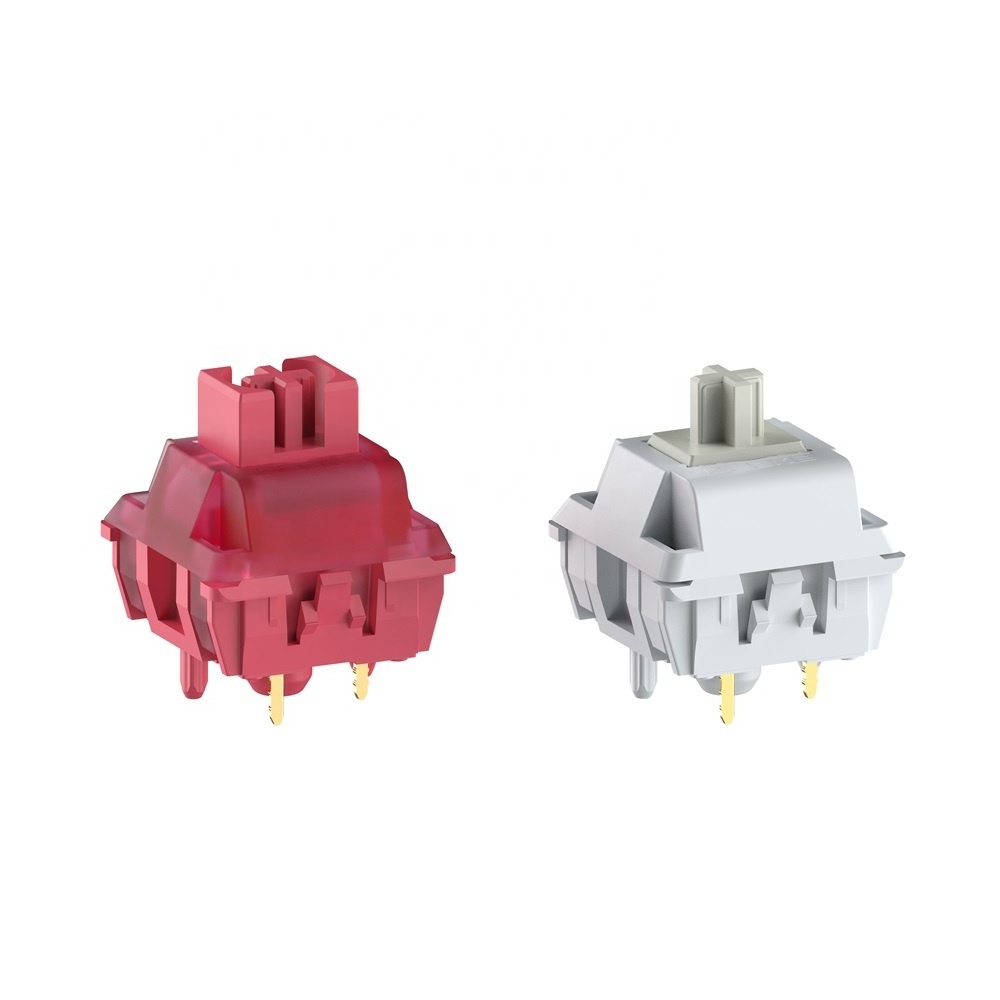

New Arrival Customized Mechanical Keyboard Kit Hot Swap Gold-plated Spring Linear Pre Lubed Shaft Switches for Gaming Keyboard
● Prelubed in factory
●
Gold-plated Spring
● POM
material
|
Technical specifications
|
|
|
|
Voltage：
|
12 VAC/DC max 2 VDC min
|
|
|
Current：
|
10mA AC/DC max 10μA DC min
|
|
|
Insulation Resistance：
|
100MΩ at 100V（min）
|
|
|
Nitial Contact Resistance：
|
200mΩ max
|
|
|
Bounce Time：
|
≤5msec
|
|
|
Capacitance：
|
＜2pF（at 1kHz）
|
|
|
Operating Temperature:
|
-10°C to+70°C
|
|
|
Storage Temperature:
|
-40°C to+70°C
|
|
|
Solderability:
|
Wave solder，5 seconds at 260±5°C
|
|
|
Long life：
|
50，000，000 cycles
|
|
|
Work Force：
|
45±5gf
|
|
|
Total Travel：
|
3.40士0.4mm
|
|
|
Pretravel：
|
2.0±0.4mm
|
|
|
Tactile Force:
|
N/A
|
|
|
Choice of feel:
|
Linear
|
|
