Quick Details
-
Description:
-

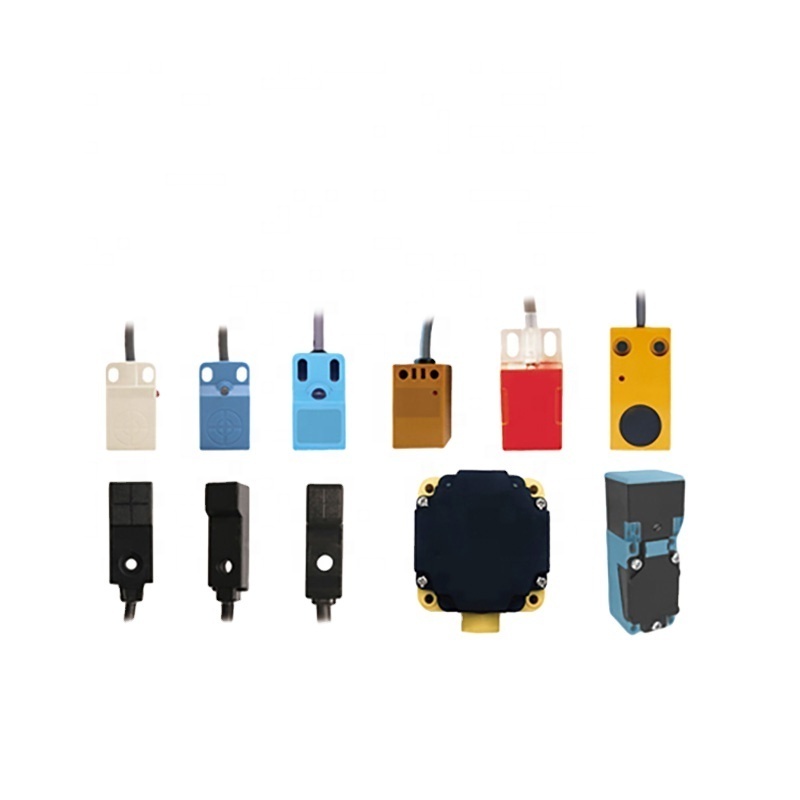

Y9, Square Shape Proximity Sensor
-
Model Number:
-
Y9
-
Place of Origin:
-
Nanjing,China
-
Brand Name:
-
KJTDQ
-
Theory:
-
inductive proximity sensor
-
Output:
-
NO NC; 4 wire,3 wire(NPN PNP) , 2 wire
-
Name:
-
Square Shape Proximity Sensor
-
Output type:
-
Switching Transducer
-
Usage:
-
Position Sensor
-
Connection:
-
Pre-wired
-
Sensing distance:
-
2.5mm
-
Cable Wire:
-
PVC 2m
-
Protection Level:
-
IP67
-
Material:
-
ABS
-
Temperature:
-
-25~+70℃
-
Supply Voltage:
-
10-36VDC
Quick Details
-
Use:
-
Universal
-
Series:
-
Square Shape Inductive Proximity Sensor
-
Mounting Type:
-
Non-Flush
-
Description:
-
Y9, Square Shape Proximity Sensor
-
Model Number:
-
Y9
-
Place of Origin:
-
Nanjing,China
-
Brand Name:
-
KJTDQ
-
Theory:
-
inductive proximity sensor
-
Output:
-
NO NC; 4 wire,3 wire(NPN PNP) , 2 wire
-
Name:
-
Square Shape Proximity Sensor
-
Output type:
-
Switching Transducer
-
Usage:
-
Position Sensor
-
Connection:
-
Pre-wired
-
Sensing distance:
-
2.5mm
-
Cable Wire:
-
PVC 2m
-
Protection Level:
-
IP67
-
Material:
-
ABS
-
Temperature:
-
-25~+70℃
-
Supply Voltage:
-
10-36VDC
Products Description
Product Paramenters
|
Product number
|
Y8S
|
Y8X
|
Y9
|
Y10S
|
Y10X
|
||||
|
Installation method
|
Non-Flush
|
Non-Flush
|
Non-Flush
|
Non-Flush
|
Non-Flush
|
||||
|
Detection distance
|
2.5mm
|
2.5mm
|
2.5mm
|
2.5mm/4mm
|
2.5mm/4mm
|
||||
|
voltage
|
10-36VDC
|
|
|
|
|
||||
|
output method
|
NPN/PNP/NO/NC
|
|
|
|
|
||||
|
Switch point offset
|
≤±10%
|
|
|
|
|
||||
|
hysteresis range
|
1-20%
|
|
|
|
|
||||
|
Repeat error
|
≤3%
|
|
|
|
|
||||
|
Load current
|
≤100mA
|
|
|
|
|
||||
|
Residual voltage
|
≤2.5V
|
|
|
|
|
||||
|
Current consumption
|
≤10mA
|
|
|
|
|
||||
|
protection circuit
|
Surge, reverse polarity protection
|
|
|
|
|
||||
|
Output instructions
|
Red LED
|
|
|
|
|
||||
|
ambient temperature
|
-25--70℃
|
|
|
|
|
||||
|
environment humidity
|
35-95%
|
|
|
|
|
||||
|
On-off level
|
1000 Hz
|
|
|
|
|
||||
|
Protection level
|
IP67
|
|
|
|
|
||||
|
Sensing surface material
|
PC
|
|
|
|
|
||||
|
Wiring
|
2M PVC cable
|
|
|
|
|
||||
Product Dimensions
Product Wiring Diagram
PRODUCT APPLICATION
FAQ
Q1. Are you a trader or a manufacturer?
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
A: KJT electric is a manufacturing enterprise. We have more than 12 years of experience in R&D and production.
Q2: Can you send a sample for us to test ?
A: For proximity sensors ,it is available to send samples .
Q3: What is the minimum order quantity(MOQ)?
A: Small quantity is also available.MOQ can be negotiated for customized products.
Q4. Does your company accept customization?
A: Yes, we welcome OEM&ODM and label customization according to your requirements.
Q5 : How about the quality guarantee period ?
A : Our warranty period is 18-month since from shipping date.
Q6 : What's your leadtime?
A : 1-3 working days shipping guarantee for stock item , for non-stock items, our delivery date will be determined according to
the quantity you order. If your need is urgent, we will try our best to shorten the delivery time.
Q7 : What's your payment term?
A : We accept T/T, Credit card , Paypal and Western Union.
Q8: What is your shipping way?
A: We support DHL, UPS, FedEx, TNT, EMS express and so on.
