Quick Details
-
Panel Size:
-
768x768mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
JC-FLP-PH8MM
-
Brightness:
-
5500nits
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixels:
-
8mm
-
Panel material:
-
Rear service Iron cabinet
-
IP rate:
-
IP65 full waterproof
-
Weight:
-
20KG/PCS
-
Density:
-
15625 pixels/sqm
-
Module size:
-
256x128mm
Quick Details
-
Application:
-
Outdoor Advetising TV
-
Brand Name:
-
JC
-
Color:
-
Full Color
-
Panel Size:
-
768x768mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
JC-FLP-PH8MM
-
Brightness:
-
5500nits
-
Usage:
-
OUTDOOR
-
Tube Chip Color:
-
FULL COLOR
-
Display Function:
-
Video
-
Pixels:
-
8mm
-
Panel material:
-
Rear service Iron cabinet
-
IP rate:
-
IP65 full waterproof
-
Weight:
-
20KG/PCS
-
Density:
-
15625 pixels/sqm
-
Module size:
-
256x128mm
Customized P8 outdoor big screen led display
- SMD p8 led screen module
- Pixel Pitch:8mm
- Size:256MM*128MM
- Module Resolution:32*16 dots

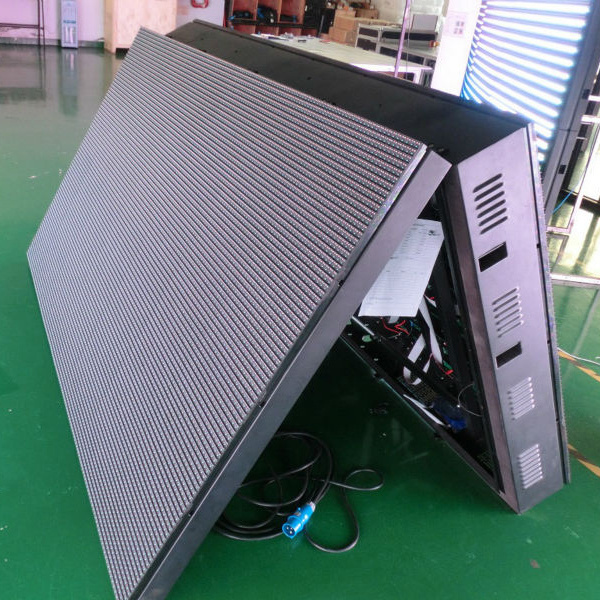

- P8 screen waterproof cabinet
- Cabinet size:768mm*768mm*85mm
- Cabinet weight:20kg
-
Cabinet type:Die Cast Al-Cabinet
-
P8 outoor led screen
- Refresh:1920Hz
- Control system:Novastar syn control
-
Brightness:5800nits
LED Screen Parameter
|
Description |
Technical parameter |
||
|
Unit module |
Module size |
256*128mm |
|
|
Pixel pitch |
8mm |
||
|
Pixel density |
15625dots/sqm |
||
|
Pixel configuration |
1R1G1B |
||
|
Led specification |
Φ3ellipse |
||
|
Pixel resolution |
W:32dots*H:16dots |
||
|
Cabinet |
Dimension |
768*768mm | |
|
Quantities of module |
18pcs |
||
|
Power supply |
2-4pcs |
||
|
Thermal discharge |
Fan*2pcs |
||
|
Total weight |
20kg |
||
|
Best viewing distance |
8-500m |
||
|
Temperature |
Storage: -35°C~+85°C |
||
|
Working: -35°C~+85°C |
|||
|
Thickness |
15cm can adjustable |
||
|
Remarks: cabinet size can changed, upon project need. |
|||
|
Power |
Working voltage |
AC220V/110V±10% |
|
|
Average power consumption |
400W |
||
|
Max. Power consumption |
≤1200W/sqm |
||
|
Current |
≤20mA(single LED) |
||
|
Control system |
CPU |
Pentium4 or above |
|
|
Operating system |
WIN98/2000/NT/XP |
||
|
Control method |
ASY/Synchronization |
||
|
Main technical parameter |
Driving device |
Static constant current |
|
|
Drive type |
Constant Current driver IC |
||
|
Refresh frequency |
≥1920Hz |
||
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
||
|
Brightness of white balance |
More than 7500cd/sqm |
||
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
||
|
Operating ambient humidity |
10%--95% |
||
|
Video signal |
PAL/NTSC |
||
|
Control system |
DVI display card+full color controller card |
||
|
MTBF |
≥10,000hours |
||
|
Life span |
≥100,000hours |
||
|
Flatness |
Tolerance of interpixel ≤0.3mm |
||
|
Tolerance of modules clearance≤0.6mm |
|||
|
Power switch |
Automatic switch |
||
| IP grade | IP65 | ||
|
Software |
LED media player |
||
Wall mounted
1) this installation method is usually used indoor or semi outdoor.
2) the display area of the screen is small, generally no space for maintenance channel is left, the whole screen is taken down for maintenance, or it is made into a folding integrated frame.
3) the screen area is slightly larger, and the
front maintenance
design is generally adopted (i.e. front maintenance design, usually the column assembly method).
Column type
The column type will install the outdoor screen on the platform or column. Columns are divided into columns and double columns. In addition to screen steel structure, concrete or steel columns are also required, mainly considering the geological conditions of the foundation. Column mounted LED display screen is usually used by schools, hospitals, public institutions for publicity, notification, etc.
There are many ways of column installation, which are generally used for outdoor advertising:
1) single column installation mode: suitable for small screen application
2) double column installation mode: suitable for large screen application
3) closed maintenance channel: suitable for simple box
4) open maintenance channel: applicable to standard box
LED Control system diagram
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way: Air;Express;Ocean;Land Transportation
Delivery time: 7-15 working days after confirm receipt payment in advance.
Long working life: In the Maintenance period, free of all maintenance charge.After maintenance period only charge the material costs fees.
