Quick Details
-
Voltage:
-
220v/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1000*500*700mm
-
Weight:
-
250 KG
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

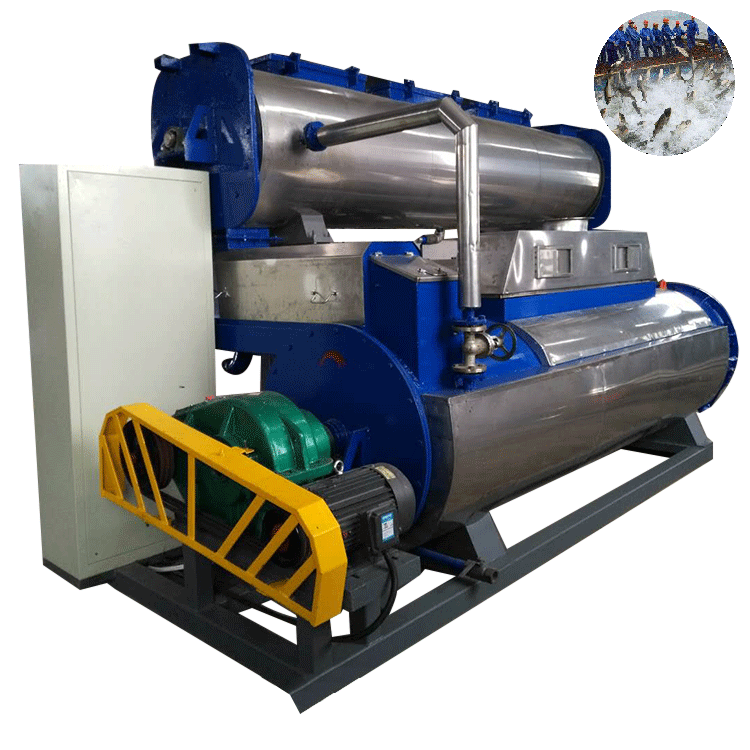

Fish meal making machine/fishmeal production line
-
Application:
-
Making fish meal
-
Raw material:
-
Fish waste
-
Capacity:
-
2t or 3t per day
-
Color:
-
Blue
-
Packing:
-
Load container
-
Delivery time:
-
15-20 working days
-
Heating:
-
Electric
-
Certification:
-
ISO CE
Quick Details
-
Production Capacity:
-
99%
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hanson
-
Voltage:
-
220v/380v
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
1000*500*700mm
-
Weight:
-
250 KG
-
Warranty:
-
One Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Fish meal making machine/fishmeal production line
-
Application:
-
Making fish meal
-
Raw material:
-
Fish waste
-
Capacity:
-
2t or 3t per day
-
Color:
-
Blue
-
Packing:
-
Load container
-
Delivery time:
-
15-20 working days
-
Heating:
-
Electric
-
Certification:
-
ISO CE
small bone meal powder production line/fish waste grinder processing equipment machine making
Description:
This small capacity fish meal machinery is specially design and manufacture for our customers who want to process raw material like fish head, fish sausages and offals,
small whole fresh fish, the whole production line has a compact structure, automatic, integrated,easy operate and good performance.
Raw material:
Whole fish(different kinds of fresh fish, fish heads, fish sausages and offals,fish waste), food waste, other aquatic products, like shrimp,loach,etc
Capacity: 2ton per day or 3 day per day of fish processing amount.
Whole plant process: Screw conveyor----Cooking----Pressing----Drying----Cooling-Screening-Crushing
| Item | Description | Dimension | Details |
| 1 | Screw conveyor | φ200×4000 | equipped with reducer 1 set, made of SUS304,1.5kw |
| 2 | Cooking machine | φ510×3000 |
·material of outer heat preservation made of SUS430, thickness: 0.5mm; ·inner and outer cylinder made Q235B; ·driving power: 1.5kw (speed adjusted by magnetization). |
| 3 | Screw pressing machine | φ245×1200 |
·outer cover made of SUS430, thickness 1.2 mm; · seive mesh applied SUS304; ·driving power: 4kw. |
| 4 | Dryer | φ820×3500 |
·inner and outer cylinder made of Q235B; ·preservation made of SUS430, thickness 0.5mm; ·driving power: 4kw, V=30r/min; |
| 5 | thermal oil pump | driving power:1.5kw | |
| 6 | electric control box |
electric control box |
2t/day fish meal machine details:
Total size:4m*2m*4.5m
Capacity:2000kg/day fresh fish, could get 400-500kg Defatted Fish MealMoisture≤12%.
320#conduction oil,using tempreture is150-260°C.
Total power:76kw.
Shipping type:one 20 container.
Recommend working plant area:Lenght 15m,width 10m,with height about 6m.
Finished fish meal: Use as the raw material to make animal feed
Final product: skimmed fish meal,high protein
Moisture of final product: less than 12%
Note: usually the capacity of fish meal is based on fish type and fish quality
Project case
Whole plant installed in domestic and abroad
Fish meal plant
Fish meal making machine/fishmeal production line
Packing: Load in whole container
Shipping: By sea
Delivery time:15-20 working days
small bone meal powder production line/fish waste grinder processing equipment machine making
Pre-sale:
1.Provide professional technical support and suitable proposal according to your request
2.Customers reception to visit our factory
After-sale:
1.Delivery on time.
2. One year guarantee.
3.Engineers can go abroad to guide the installation and traing.
