Quick Details
-
Brand Name:
-
GEB
-
Dimension(L*W*H):
-
150*100*100CM
-
Name:
-
rock splitter
-
Splitting Parts Dia:
-
40.5mm to 45.5mm
-
Actual Spltting Force:
-
800tons
-
splitting distance:
-
13-18mm
-
Splitting hole Dia:
-
42-48mm
-
Drilling hole depth:
-
400-700mm
-
working pressure:
-
55-63Mpa
-
Oil pump type:
-
electratic/diesel
-
Advantage:
-
high performance
-
Certification:
-
CE
Quick Details
-
Weight (KG):
-
500
-
Application:
-
Rock Split / Construction
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GEB
-
Dimension(L*W*H):
-
150*100*100CM
-
Name:
-
rock splitter
-
Splitting Parts Dia:
-
40.5mm to 45.5mm
-
Actual Spltting Force:
-
800tons
-
splitting distance:
-
13-18mm
-
Splitting hole Dia:
-
42-48mm
-
Drilling hole depth:
-
400-700mm
-
working pressure:
-
55-63Mpa
-
Oil pump type:
-
electratic/diesel
-
Advantage:
-
high performance
-
Certification:
-
CE

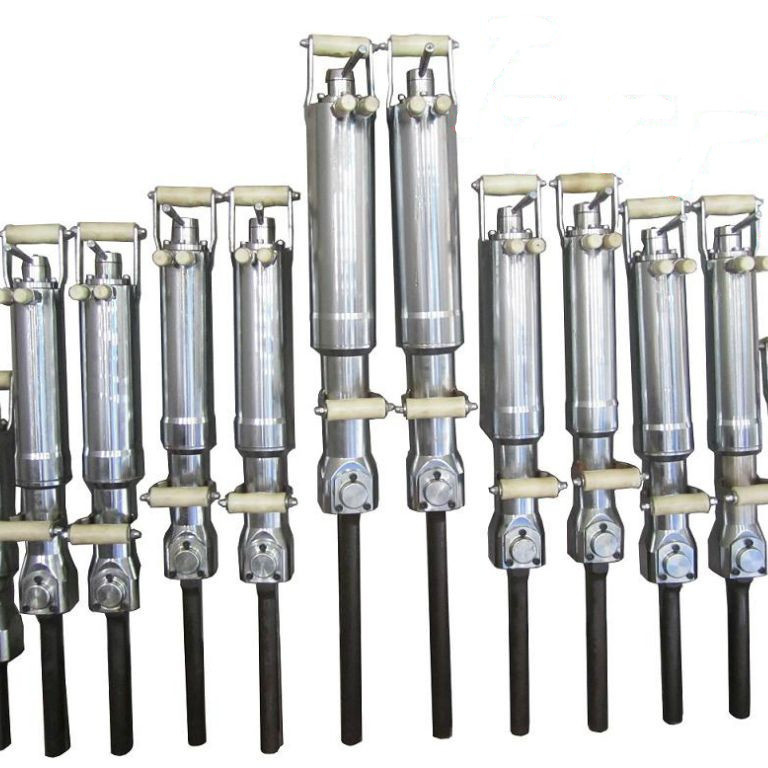

The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllably split rock or concrete. Especially suit for cabined area where large machine can not work.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.
It is including Power Station and Cylinders.
Power Station:
Including Diesel & Electric & Gasoline.
Cylinder (Gun):
Including Aluminum & Steel.
One Station can match 1-10 pieces cylinders.
Advantage of our hydraulic splitter:
Enormous splitting force up to 600 tons
Dust free and near silent operation
Vibration free
Light weight
Precision work
Always controllable
For use in close quarters and hard to access places
Easy handling
Different size counter wedge and center wedge can use on the same splitter.
| Item | 250 | 350 | 450 |
| Splitting length | 250mm | 350mm | 450mm |
| Piston Stroke | 90/220mm | 90/220mm | 90/220mm |
| Drilling depth | >500mm | >700mm | >900mm |
| Drilling diameter | 42mm | 46mm | 46mm |
| crack width | 10-20mm | 10-20mm | 10-20mm |
| splitting time | 10-15s | 10-15s | 10-15s |
| power | 500T | 800T | 800T |
| weight | 30kg | 32kg | 36kg |
