Quick Details
-
Model Number:
-
pvc foot valve
-
Brand Name:
-
SOLID
-
Product name:
-

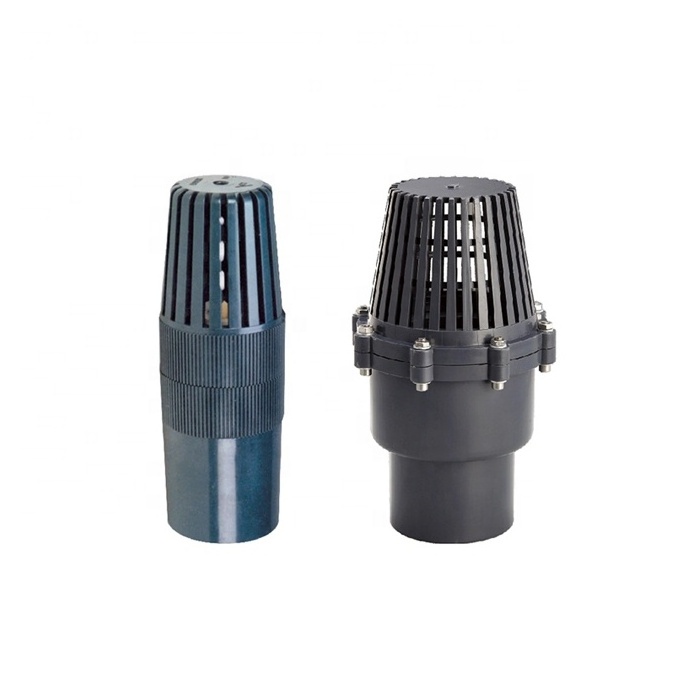

PVC Single Union Foot Valve
-
Size:
-
DN15-DN50
-
Temperature:
-
-10~120 C
-
Connection:
-
Socket / Thread
-
Standard:
-
ANSI,DIN,BS,JIS,ASTM and so on
-
O-RING:
-
NBR, EPDM
-
Color:
-
Black Gray
-
Handel:
-
ABS
-
Working pressure:
-
PN 10
Quick Details
-
Port Size:
-
DN15-DN50
-
Warranty:
-
1years
-
Place of Origin:
-
Shanxi, China
-
Model Number:
-
pvc foot valve
-
Brand Name:
-
SOLID
-
Product name:
-
PVC Single Union Foot Valve
-
Size:
-
DN15-DN50
-
Temperature:
-
-10~120 C
-
Connection:
-
Socket / Thread
-
Standard:
-
ANSI,DIN,BS,JIS,ASTM and so on
-
O-RING:
-
NBR, EPDM
-
Color:
-
Black Gray
-
Handel:
-
ABS
-
Working pressure:
-
PN 10
Factory Price Drinking Water PVC Single Union Bottom Valve Plastic Foot Valve
Why choose us
Product Description
| Product name | PVC Single Union Bottom Valve |
| Main material | CPVC |
| Size range | De20-De63; 1/2"-2" |
| Colors | Light Grey; other colors |
| To connect | Socket; cement; glue |
| Pressure range | Medium Pressure, PN10, PN16 |
| Standards | DIN, GB |
| Certifications | ISO14001,ISO9001 |
| Joints methods | Solvent Welding Joints/Thread Joints |
| Medium | liquid/Water |
| MARTERIAL TABLE | |||
| No. | Parte | Quantity | Material |
| 01 | Mesh Enclosure | 1 | PVC-U/PVC-C |
| 02 | Washer | 1 | PVC-U/PVC-C |
| 03 | Rubber ring | 1 | EPDM/FPM |
| 04 | Located ring | 1 | PVC-U/PVC-C |
| 05 | Ball | 1 | PVC-U/PVC-C |
| 06 | Body | 1 | PVC-U/PVC-C |
Detailed Images
