Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shiheng
-
Model Number:
-

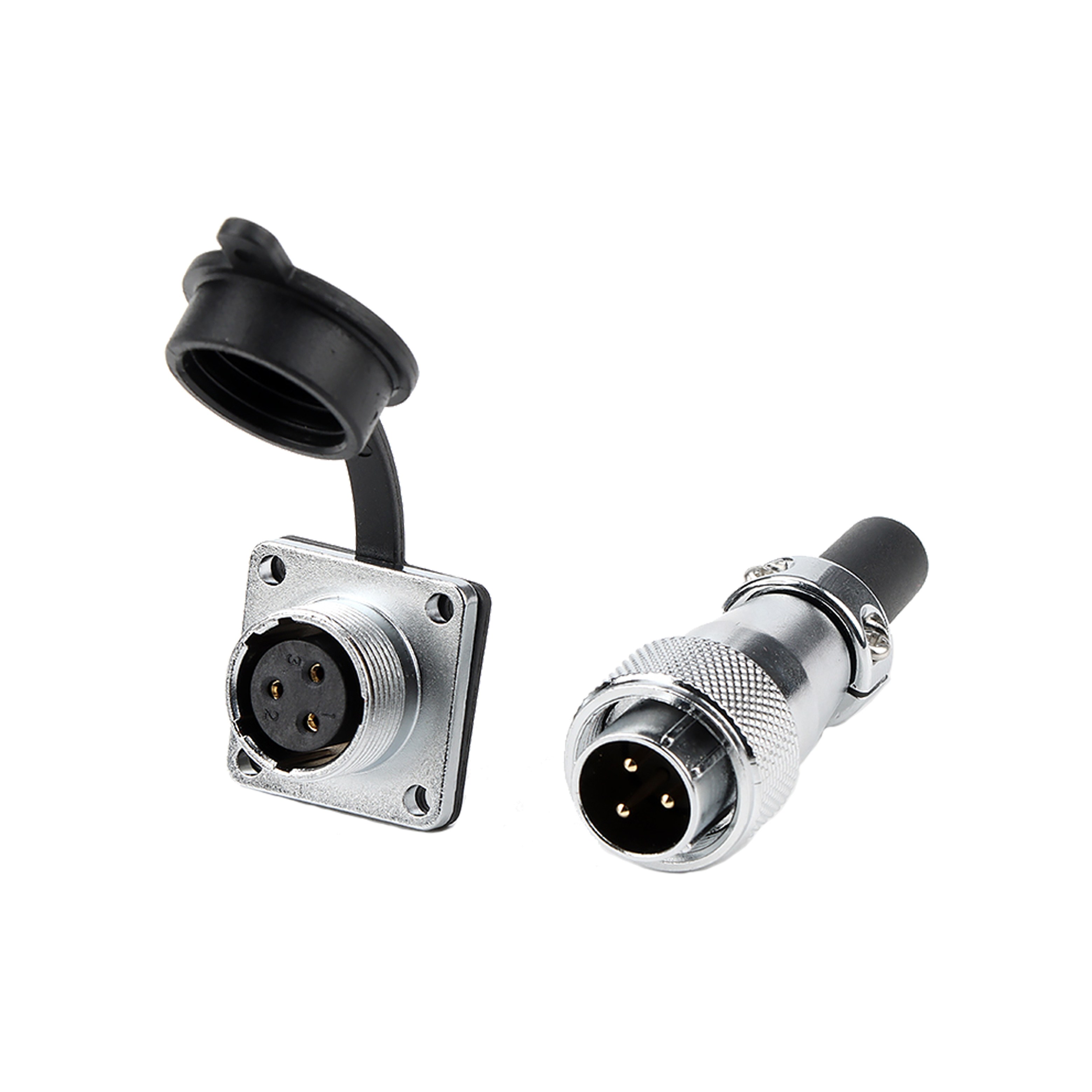

WS16 Aviation plug, WS16 Aviation plug
-
Color:
-
silver
-
Coupling:
-
Threaded connection
-
Shell material:
-
Zinc alloy (chrome plated)
-
Number of cores:
-
2/3/4/5/7/9/10pin
-
Contact material:
-
Copper (gold plated)
-
Number of insertions:
-
500
-
brand:
-
shiheng
-
Temperature range:
-
-20°C-+85°C
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shiheng
-
Model Number:
-
WS16 Aviation plug, WS16 Aviation plug
-
Color:
-
silver
-
Coupling:
-
Threaded connection
-
Shell material:
-
Zinc alloy (chrome plated)
-
Number of cores:
-
2/3/4/5/7/9/10pin
-
Contact material:
-
Copper (gold plated)
-
Number of insertions:
-
500
-
brand:
-
shiheng
-
Temperature range:
-
-20°C-+85°C
Product Description
Specification
|
|
|
|
|
|||
|
Connection method
|
Threaded link
|
Shell material
|
Zinc alloy (chrome plated)
|
|||
|
Contact material
|
Copper (gold plated)
|
insulator
|
Thermal Plastics PPS
|
|||
|
Number of insertions
|
500
|
Connection mode
|
weld
|
|||
|
Temperature range
|
-20°C-+85°C
|
brand
|
Shiheng
|
|||
|
Product core
|
2/3/4/5/6/7/9/10 pin
|
|
|
|||
|
Product application scope
|
Aviation / Sensor/Electrical equipment/Industrial etc..
|
|
|
|||
|
Technical parameter
|
|
|
|
|
|
|
|
|||||||
|
Number of cores
|
2
|
3
|
4
|
5
|
7
|
9
|
10
|
|||||||
|
Rated current（A）
|
10
|
10
|
5
|
5
|
5
|
5
|
5
|
|||||||
|
Operating voltage (AC.V)minutes
|
500
|
500
|
500
|
500
|
400
|
400
|
400
|
|||||||
|
Withstand voltage (AC.V) 1 min
|
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
1500
|
|||||||
|
Contact resistance（MΩ）
|
1
|
1
|
1
|
2.5
|
2.5
|
2.5
|
5
|
|||||||
|
Insulation resistance（MΩ）
|
2000
|
2000
|
2000
|
2000
|
2000
|
2000
|
2000
|
|||||||
|
Contact diameter（MM）
|
φ2.5
|
φ2.5
|
φ2.5
|
φ1.5
|
φ1.5
|
φ1.5
|
φ1.5
|
|||||||
Packing & Delivery
FAQ
Q1: Are you a factory?
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013
Q2：Why did I receive the goods in bulk?
Considering that the customer needs to take back the welding wire processing, we will check the number of goods before delivery to prevent the situation of missing a few pieces. Online set is also the lowest price, not a shipment, each part of the separate bag packaging includes manual assembly costs, if there are special requirements, please contact our customer service staff.
Q3:How to customize processing?
If you need to process customized, please consult customer service online; Send the detailed drawings of customized spare parts to the online customer service staff, the customer service will give your drawings to the company engineer, after the engineer completes the assessment of the price, as well as the construction period, the customer service will feedback these information to you, after confirming, decide to customize the product, you can pay for the transaction! The factory will complete production within the expected time frame and deliver regularly.
Q4:How about the certificates?
A:ISO 9001, UL, RoHS, REACH etc.
A: Yes, we are the professional manufacturer of connectors and precision mold since 2013
Q2：Why did I receive the goods in bulk?
Considering that the customer needs to take back the welding wire processing, we will check the number of goods before delivery to prevent the situation of missing a few pieces. Online set is also the lowest price, not a shipment, each part of the separate bag packaging includes manual assembly costs, if there are special requirements, please contact our customer service staff.
Q3:How to customize processing?
If you need to process customized, please consult customer service online; Send the detailed drawings of customized spare parts to the online customer service staff, the customer service will give your drawings to the company engineer, after the engineer completes the assessment of the price, as well as the construction period, the customer service will feedback these information to you, after confirming, decide to customize the product, you can pay for the transaction! The factory will complete production within the expected time frame and deliver regularly.
Q4:How about the certificates?
A:ISO 9001, UL, RoHS, REACH etc.
