Quick Details
-
Voltage:
-
220/380/400/415V
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TARGET
-
Model Number:
-
TG-60A
-
Warranty:
-
2 years
-
Certification:
-
ce
-
Product name:
-
used car paint booth for sale/oto boya kabini fiyat/car painting oven
-
Usage:
-
Car Painting Baking
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Color:
-
Client's Requirements
-
Wall Panel:
-
50/75mm EPS / Rock Wool
-
Filters:
-
High Efficiency Filter
-
delivery time:
-
7 days
-
payment:
-
30% deposit
-
Shipping way:
-
sea freight
Quick Details
-
Power:
-
12KW
-
External Size:
-
7050*4050*3300mm(L*W*H)
-
Internal Size:
-
6900*3900*2600mm(L*W*H)
-
Voltage:
-
220/380/400/415V
-
No Load Speed:
-
0.25m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TARGET
-
Model Number:
-
TG-60A
-
Warranty:
-
2 years
-
Certification:
-
ce
-
Product name:
-
used car paint booth for sale/oto boya kabini fiyat/car painting oven
-
Usage:
-
Car Painting Baking
-
Heating System:
-
RIELLO Brand Diesel Burner
-
Color:
-
Client's Requirements
-
Wall Panel:
-
50/75mm EPS / Rock Wool
-
Filters:
-
High Efficiency Filter
-
delivery time:
-
7 days
-
payment:
-
30% deposit
-
Shipping way:
-
sea freight

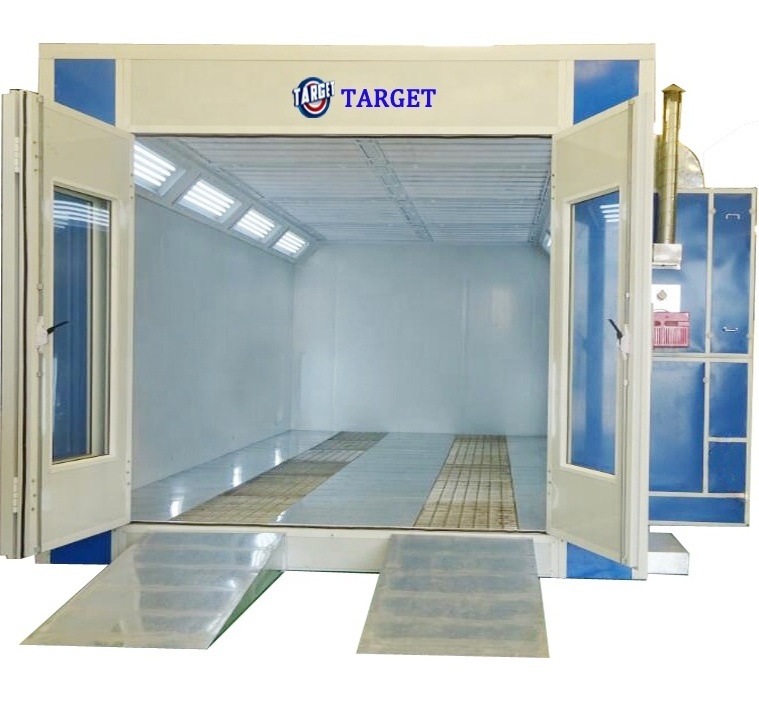

used car paint booth for sale/oto boya kabini fiyat/car painting oven
As experienced factory of spray booths,TARGET has been in this area for more than 15 years,exporting our paint booths to Australia,America,Germany,Asia,Africa and many other europe countries.
Our automotive paint booths are constructed of quality materials and manufactured to exacting standards,designed for extended service and meet high production requirements while providing the best environment for a quality finish.
We hold true to the product quality first, customer-focused purpose and dedication to provide quality services to our clients all the time,and our paint booths are highly appraised by our cuntomers. There are many different styles and options for you.If you have any questions, please no hesitate to contact us!
Specification:
|
Inside dimension |
6900*4000*2650 (LxWxH) |
Front door(mm) |
3000*2600 mm(W×H) |
||||
|
Outside dimension |
7000*5400*3400 (LxWxH) |
Total Power(Kw) |
12 Kw |
||||
|
Cabin System |
Wallboard |
EPS (epispastics polystyrene) colorful steel skin panel, 50mm thick,steel 0.5mm thick,tongue & groove style,compound construction,Aluminum-alloy frame,anti-flame and heat-insulation, galvanized steel roof panel. |
|||||
|
Basement |
300mm depth ,Galvanized steel sheet and square steel pipe assembling, 2 rows of grid plates made by flat bar and round steel, 3 rows of diamond plates , galvanized. 2 ramps, external setting, 750 x 2000 mm ( W * L )/pc |
||||||
|
Air Circulation System |
Intake Fan |
Blower Capacity: 24000m ³ /h |
Exhaust Fan |
Blower Capacity: 14500m ³ /h |
|||
|
Power: 3kw/pc |
Power: 4kw/pc |
||||||
|
Quantity: 2 pcs |
Quantity: 1 pc |
||||||
|
Model:Double-intake centrifugal fan |
Model:Double-intake centrifugal fan |
||||||
|
Air Volume: 24000m ³ /h , Air flow speed in the cabin :0.35m/s |
|||||||
|
Heating system |
Burner |
Italy Riello G20 Diesel Burner, 200000Kcal/h . SUS304 Stainless steel heat exchanger ,argon arc welding. |
|||||
|
Heat energy |
Max Temp:80.C , Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle |
||||||
|
Filter system |
Dual-filtering structure |
Primary filter : Can Capture Granules Larger than 10μm |
|||||
|
Ceiling filter:600g high efficiency filter, can Capture Granules Bigger than 4μm |
|||||||
|
Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>95% |
|||||||
|
Lighting system |
Ceiling lights |
8Units×4Pcs=32Pcs×18W LED Lighting 12 00LUX |
|||||
|
Side lights |
6Units×4Pcs=24Pcs×18W LED Lighting 12 00LUX |
||||||
|
Control system |
Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start. |
||||||
|
Environmental System |
Multi-Layer Fiberglasses Filter, active-carbon, and ensure a qualified exhaust according to the relevant state standards |
||||||
Advantages:
- 2 years warranty
- Effective filter system
- Original Italian RIELLO Burner,hot wind recycling system with SUS304 heat exchanger
- Multi-Layer Fiberglasses Filter and active-carbon ensure a qualified exhaust according to the relevant state standards
- 15 years experienced working team
- Customized service
- Life long technical support service
Paint Booth Projects:
Parts:
Packaging&Shipping:
Standard export package:Plastic film + kraft paper + tray
Why Choose TARGET Equipment :
1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !
2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
5. Oversea service will supply if need.
Payment:
1. T/T 30% deposit, 70% balance before shipping.
2. Western Union,
3. Money Gram ,
4. Alibaba Trad e Assurance
5. other
