Quick Details
-
Brand Name:
-
WOLCK
-
Use:
-
FTTH, GPON
-
Warranty Time:
-
18 Months
-
item:
-
gpon OLT SFP Moudle
-
Switching capacity:
-
102Gbps
-
DC power supply:
-
AC: Input 100~240V,47~63Hz; DC: Input -36V~-75V;
-
Power switch:
-
1, Power On/Off
-
Power consumption:
-
≤85W
-
Package:
-
200pcs/carton
-
Carton Size:
-
30*23*43cm
-
Product Keywords:
-
huawei gpon onu stick sfp,huawei gepon onu sfp,hot-selling sfp module
Quick Details
-
Type:
-
Other
-
Model Number:
-
GPON C++++
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WOLCK
-
Use:
-
FTTH, GPON
-
Warranty Time:
-
18 Months
-
item:
-
gpon OLT SFP Moudle
-
Switching capacity:
-
102Gbps
-
DC power supply:
-
AC: Input 100~240V,47~63Hz; DC: Input -36V~-75V;
-
Power switch:
-
1, Power On/Off
-
Power consumption:
-
≤85W
-
Package:
-
200pcs/carton
-
Carton Size:
-
30*23*43cm
-
Product Keywords:
-
huawei gpon onu stick sfp,huawei gepon onu sfp,hot-selling sfp module

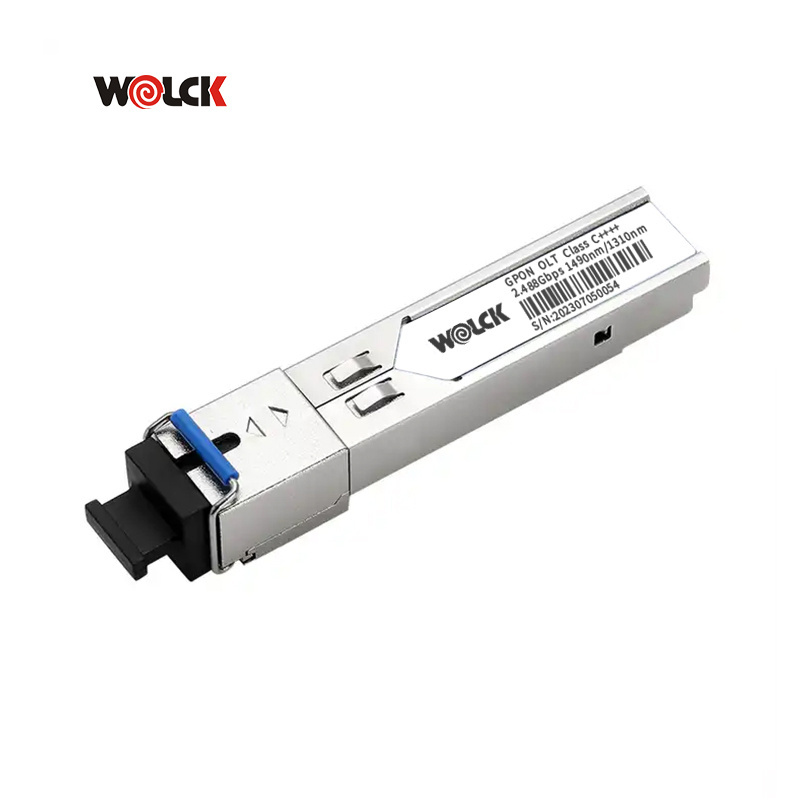

1490/1310 SC Connector 20Km 2.5G/1.25G
GPON OLT SFP Pon Module
Optical modules are optoelectronic devices that perform photoelectric and electro-optical conversion. The transmitting end of the optical module converts the electrical signal into an optical signal, and the receiving end converts the optical signal into an electrical signal. Optical modules are classified according to the package form, and the common ones are SFP, SFP+, SFF, Gigabit Ethernet Interface Converter (GBIC), etc.
Product Features
Support ITU-T G.984.2 GPON OLT C++++ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance
|
Parameter
|
Unit
|
Min.
|
Typical
|
Max.
|
||||
|
Transmitter
|
|
|
|
|
||||
|
TX Central Wavelength
|
nm
|
1480
|
1490
|
1500
|
||||
|
Spectral Width (-20dB)
|
nm
|
|
|
1
|
||||
|
Side Mode Suppression Ratio (SMSR)
|
dB
|
30
|
|
|
||||
|
Mean Launched Power
|
dBm
|
4.5
|
|
10
|
||||
|
Mean Launched Power (TX Off)
|
dBm
|
|
|
-45
|
||||
|
Extinction Ratio
|
dB
|
8.2
|
|
|
||||
|
Optical Return Loss Tolerance
|
dB
|
-12
|
|
|
||||
|
Transmitter and dispersion Penalty
|
dB
|
|
|
1
|
||||
|
Transmitter Mask(PRBS223-1 & 2.488G)
|
Compliant With ITU-T G.984.2
|
|
|
|
||||
|
Receiver
|
|
|
|
|
||||
|
Receive Wavelength
|
nm
|
1290
|
1310
|
1330
|
||||
|
Sensitivity(PRBS223-1 & 1.244G,ER=10,BER<10-10)
|
dBm
|
|
|
-30
|
||||
|
Overload(PRBS223-1 & 1.244G,ER=10,BER<10-10)
|
dBm
|
-12
|
|
|
||||
|
Receiver Burst Mode Dynamic Range
|
dB
|
15
|
|
|
||||
|
Damage Threshold for Receiver
|
dBm
|
5
|
|
|
||||
|
SD Assert Level
|
dBm
|
|
|
-33
|
||||
|
SD De-assert Level
|
dBm
|
-45
|
|
|
||||
|
SD Hysteresis
|
dB
|
0.5
|
|
6
|
||||
|
WDM Filter isolation to 1550nm
|
dB
|
38
|
|
|
||||
|
WDM Filter isolation to 1650nm
|
dB
|
35
|
|
|
||||
Shenzhen Wolck Network Product Co.,Ltd. is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
