100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine
100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine

100kN ASTM UTM Tensile Force Testing Electronic Universal Testing Machine 10Ton Electronic Universal Tensile Strength machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $2000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
TBT
Model Number:
TBTWDW-100HS
Name:
universal tensile testing machine price
Usage:
Test concrete,brick,stone and other construction material
Operate:
English version operation panel and instruction manual
Control:
PC

Quick Details

Warranty:
1 year, 1 Year
Power:
Hydraulic
Place of Origin:
Jiangsu, China
Brand Name:
TBT
Model Number:
TBTWDW-100HS
Name:
universal tensile testing machine price
Usage:
Test concrete,brick,stone and other construction material
Operate:
English version operation panel and instruction manual
Control:
PC

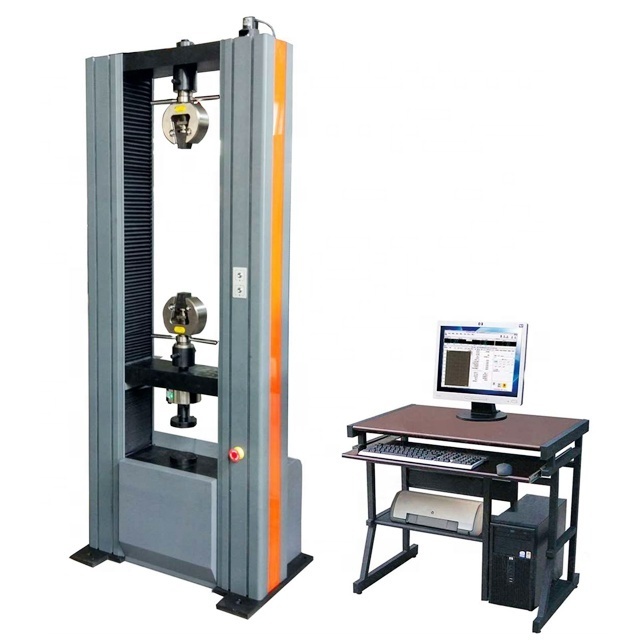

TBTWDW-100HS Computerized Electronic Universal Testing Machine

The machine adopts AC servo motor & driver to drive precision ball screw moving through decelerating system, adopts full digital controller as control system core controlling software & data processing by Windows system, makes wide range adjustment of testing speed to perform tensile, compression, bending, and flexural test for metal & non-metallic materials, the test process is stable & efficient with low noise. Thanks to the adopted international advanced control technology the test machine can achieve constant velocity deformation, displacement and test force controlling.
Parameters of test can be set through computer which automatically controls the test process, makes data acquisition, processing, analysis and display (the test data for metal materials includes: upper & lower yield points, tensile strength, fracture strength, elastic modulus, Elongation, δ0.2), etc., the test result is controlled precisely & accurately.
Equipped with dedicated software, according to national standards or user-provided standards, the machine can process test data,
output or print required test curves or test reports, it is workable for user to select test curves of stress-strain, loading-time, loading-displacement, displacement-time or deformation-time to be displayed, enlarged, compared, and monitor the test process intelligently & conveniently. The beam moving can be adjusted faster or slower when clamp on specimens, the switch can be operated easily.
The machine is with function of limit protection, overload or over current protection at any working position, reliable and safe.
With self-built test database, test data can be saved, queried and recalled at any time.
Benefit from highly automation of test process and installation of dozens of different fixtures, this machine can meet customer’s
test requirements for various materials.
PRODUCT SPECIFICATIONS
Model
TBTWDW-100HS
Max.loading capacity
100 KN
Testing grade
class 1
Loading measuring range
0.4% -100%
Loading measuring accuracy
better than ± 1%
Loading resolution
1/300000
Displacement resolution
0.01mm
Displacement measurement accuracy
± 0.5%
Test speed range
0.01-500mm / min
Speed control accuracy
±1%(0.01~10mm/min);
±0.5%(10~500mm/min.)
Vertical tensile space
600mm
Vertical Compression space
600mm(can be customized)
Compression plate diameter
100mm(can be customized)
Test width
400mm(can be customized)
Fixture clamping
Flat sample 0-7mm
Round sample Φ4-9mm
(Wedge-shaped)

Main unit size
Around 760 * 520 * 1950mm
Main unit weight
Around 500Kg
Power supply
220VAC 50HZ
Power
1.5KW
