Quick Details
-
Display:
-
1.6 inch LCD
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Operating voltage:
-
24VDC/AC
-
Interval:
-
1 Mins
-
Cover:
-
No
-
Installation:
-
Panel or Screw
-
Output:
-
Voltage Output SPST
-
Certificates:
-
CE RoHS EMC LVD
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Display:
-
1.6 inch LCD
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Operating voltage:
-
24VDC/AC
-
Interval:
-
1 Mins
-
Cover:
-
No
-
Installation:
-
Panel or Screw
-
Output:
-
Voltage Output SPST
-
Certificates:
-
CE RoHS EMC LVD

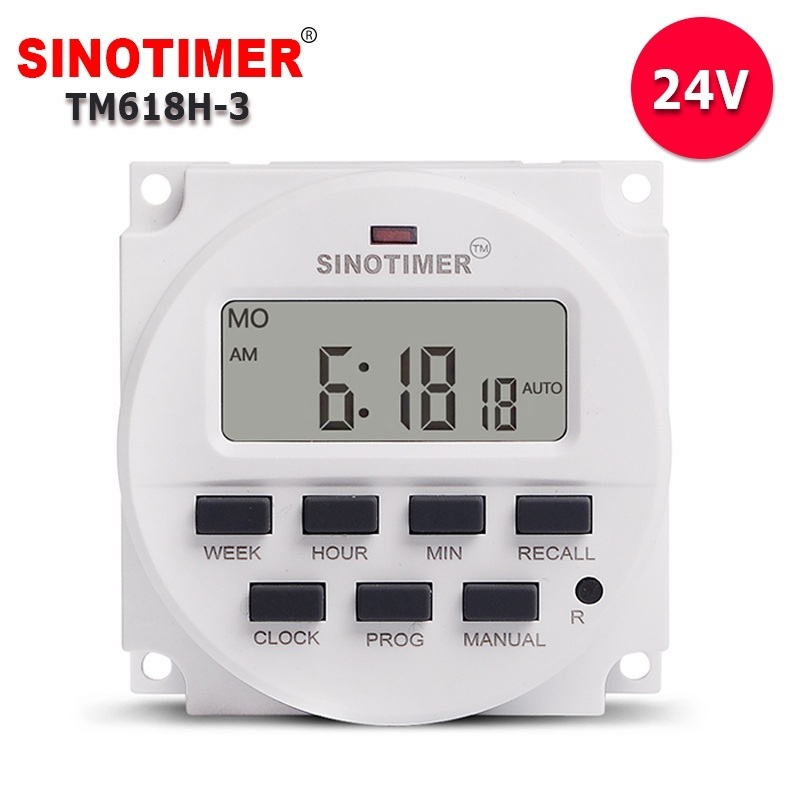

SINOTIMER 1.6 inch LCD Large Display TM618 Timer Module Weekly programmable
TM618N-3 can automatically switch on and switch off various kinds of electric equipment at a preset time . It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within battery, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367 and CE certificated.
Item Features:
* Ideal for household use in pannel mounted
* 24 hours / 7 days a week programmable
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually
Technical Data:
|
Model |
TM618N-3 |
|
Temp.range: -20°C+50°C |
Power Supply: 24VDC/AC |
|
Power consumption 4.5 VA (MAX) |
Display: LCD |
|
Switching contact: 1 changeover switch |
Programs:16 on/off each day or week |
|
Hysteresis 2 sec/day (25°C) |
Mini interval: 1 mins |
|
Capacity: 16A 250V AC |
Black-out: 60 days |
|
Timer range: 1min~168hr |
Recharge battery:1.2V |
|
Average error: 1s/24h, 25°C |
Weight: 0.08kg |
Package included:
Q1: Why choose SinoTimer Switch for Power Saving ?
1.SinoTimer is not only an amazing brand since 2002 but a symbol of power saver.
2.Full range of timer choice,from TM610 to TM619 Seiries, Best seller in Europe, USA, Braiz,RUSSIA etc.
3.Easy program, everyone can program it after he reads the manual JUST one time.
4.Stable performance because of professional manufacturing in power saver since 2002.
5.Confirm to CE RoHS standard, and with LVD, EMC certificate passed.
Q2: Can I have a sample order?
YES, we can provide a sample for FREE to test or check quality, you only need to pay the freight cost.
Q3: What is the MOQ for SINOTIMER product?
There is no MOQ, we deal with any quantity of your order.
Title goes here.
We accept T/T, L/C, Western Union,MoneyGram and Paypal.
Q5: How will you do the OEM?
We have own R&D team that involves 2 experienced structural engineers, 1 software engineer and 2 circuit engineers.
The OEM product will be accurately according to your requirement about function, printing, sticker, manual and box.
After the product has entered the market, you can send your feedback to our after-sale service team. Our R&D team will adjust and improve the product according to your feedback.
Q6: What is the MOQ for OEM?
Our MOQ for OEM is 1000 pcs.
Q7: What is the delivery time?
It depends on the quantity.
7 days, below 200 pcs.
10 days, below 500 pcs.
15 days, below 1000 pcs.
