Quick Details
-
Color:
-
red/amber/yellow/green/blue/white
-
Panel Size:
-
33*24mm/Customized, 33*24mm/Customized
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
WD0XXXX
-
Specification:
-

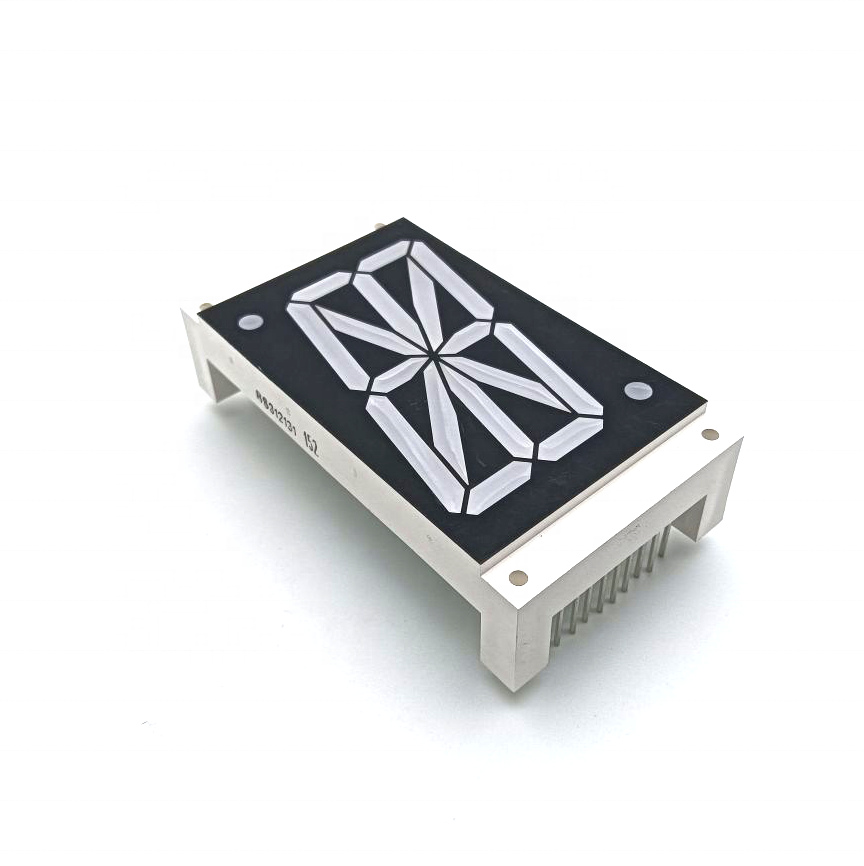

14 segment display
-
Display Function:
-
Number/letter
-
Screen Dimension:
-
Customized size
-
Tube Chip Color:
-
red/amber/yellow/green/blue/white
-
Usage:
-
Indoor
-
Certificate:
-
reach,rohs, ce
-
Surface:
-
Black/grey
-
Operating temperature:
-
-35~85℃
Quick Details
-
Application:
-
Indoor, Home appliance/elevator
-
Type:
-
LED
-
Brand Name:
-
Sangao
-
Color:
-
red/amber/yellow/green/blue/white
-
Panel Size:
-
33*24mm/Customized, 33*24mm/Customized
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
WD0XXXX
-
Specification:
-
14 segment display
-
Display Function:
-
Number/letter
-
Screen Dimension:
-
Customized size
-
Tube Chip Color:
-
red/amber/yellow/green/blue/white
-
Usage:
-
Indoor
-
Certificate:
-
reach,rohs, ce
-
Surface:
-
Black/grey
-
Operating temperature:
-
-35~85℃
Color:
| Led color | Blue | Green | Yellow-Green | Yellow | Amber | Orange | Red | White |
| Wave length(nm) | 465-475 | 515-525 | 565-575 | 585-595 | 600-610 | 620-630 | 635-650 | / |
| Led chip | GaN | GaP | GaP | GaAsP | GaAsP | GaAsP | AlInGaP | GaN+Phosphor |
Absolute Max Rating (25℃, take yellow-green led as sample):
| Symbol | Parameter | Value | Unit |
| PAD | Power Dissipation per segment | 60 | mW |
| VR | Reverse Volrage per segment | 5 | V |
| IAF | Continuous Forward Current per segment | 25 | mA |
| IPF | Peak Forward Vurrent per segment (Duty-0.1, 1KHz) | 80 | mA |
| / | Derating Linear from 25℃ per segment | 0.33 | mA/℃ |
| Topr | Operating Temperature Range | -35~+85 | ℃ |
| Tstg | Storage Temperature Range | -35~+85 | ℃ |
ABOUT US
Hangzhou Sangao Optoelectronics technology CO,.Ltd was founded in 2003 with rich experience in the led field. The company can supply led segments display, customized led display, dot matrix display, light bar, led backlight and light guide panel. Sangao have set up R&D center to develop new series led components and led application products to satisfy customers’ changing requirements. Advanced production line with latest facilities such as ASM automatic die bonding machine, automatic wiring machine, automatic laminator bring Sangao high efficiency and excellent quality. Sangao also had implemented comprehensive quality control methods to cover every aspect of production process. We hope to become your business partner in the near future.
Q: How can I get free samples?
When you confirm what color and dimension do you need, we will provide you free samples in 3-5 days. However, you
need to bear freight cost.
Q: Can you make customized led display?
Yes, we have advantages in customized led display because we have R&D center with professional technical team, and
we have 13 years experience in this field.
Q: Do you accept small orders?
Yes, we would like to support you and hope we can grow up together.
Our service:
- Quick respond: Your inquiry sill be replied within 24 hours by our professional foreign trade specialists.
- Quality Service: Providing OEM and ODM services with 13 years experience in LED field.
- Full products range: We provide all series of LED display from size 0.25" to 10", sytles like 7 segment, 14 segment, 16 segment, dot matrix and customized style. Full colors are avaliable.
- Sufficient capacity: We have sufficient production capacity that we can deliver products within 7-15 days (according to the complexity of the display) after your payment.
