Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YILI
-
Power:
-
4.5Kw
-
Dimension(L*W*H):
-
2820x1210x1340mm
-
Weight:
-
400 KG
-
Features:
-
Automatic
-
Warranty:
-
1 Year
-
Name:
-

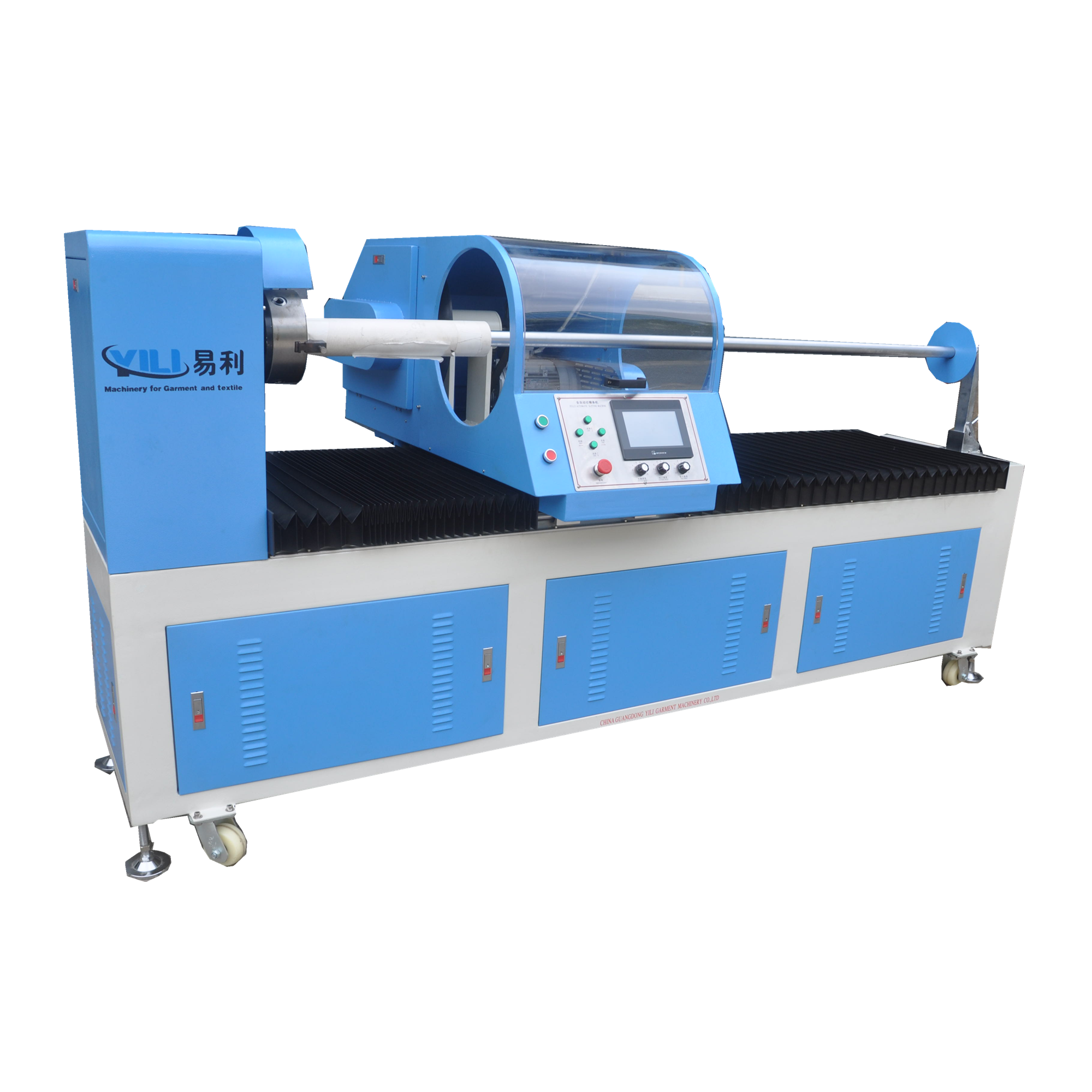

Automatic fabric roll slitting cutting machine
-
Working width:
-
2100mm
-
Max fabric diameter:
-
350mm
-
Min slitting width:
-
4mm
-
Total power:
-
4.5Kw
-
After Warranty Service1:
-
Video technical support,Spare parts
-
After Warranty Service2:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Advantage:
-
Perfect High Cutting Efficiency
Quick Details
-
Voltage:
-
AC 1Phase 220V/ 50Hz, AC 1Phase 220V/ 50Hz
-
Applicable Industries:
-
industry
-
Application:
-
Multi industries
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YILI
-
Power:
-
4.5Kw
-
Dimension(L*W*H):
-
2820x1210x1340mm
-
Weight:
-
400 KG
-
Features:
-
Automatic
-
Warranty:
-
1 Year
-
Name:
-
Automatic fabric roll slitting cutting machine
-
Working width:
-
2100mm
-
Max fabric diameter:
-
350mm
-
Min slitting width:
-
4mm
-
Total power:
-
4.5Kw
-
After Warranty Service1:
-
Video technical support,Spare parts
-
After Warranty Service2:
-
Field maintenance and repair service
-
Certification:
-
CE
-
Advantage:
-
Perfect High Cutting Efficiency
Product Introduction
|
Product Name
|
Fabric slitting machine
|
|
Max. working width
|
2100mm
|
|
Max fabric diameter
|
φ350mm
|
|
Min slitting width
|
4mm
|
|
Total power
|
4.5Kw
|
|
Voltage
|
AC 1Phase 220V/ 50Hz
|
|
Machine dimension(L*W*H)
|
2820x1210x1340mm
|
|
Available knife size
|
φ250Xφ38X2.8—φ350Xφ38X3.0
|
|
Need connect with air compressor
|
0.4-0.8Mpa
|
Feature：
1. The same material can be cut into 9 sets of size, multi-level cutting, different widths and different amounts of cutting can be set freely, the cutting accuracy is high;
2. Use microcomputer PLC, man-machine interface touch screen, computer program control data input；
3. The cutter spindle adopts electronic frequency conversion speed regulation；
4. Equipped with a safety alarm, if the spindle chuck is not completely put away, the machine will alarm to ensure safe operation;
5. Equipped with a safety cover that surround the cutter;
6. Equipped with professional dust collector device, it is more convenient to clean;
7. With automatic knife sharpen function during cutting;
8. Use high-quality brand electrical components to ensure stable and durable operation of the machine; use servo drives for more precise cutting；
9. Optional: cold air device, oil spray atomization device.
