- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lisen Plug
-
Model Number:
-
LS6-1-134
-
Material:
-
PBT GF10
-
OE Number:
-
2312006-1
-
Number of Cavities:
-
6 Pin
-
Keywords:
-
Female Cable Connector
-
Connector:
-
Equivalent
-
Rated Voltage:
-
125V
-
Usage:
-
Electric Appliance
-
Temperature Range:
-
40 -+125
-
Color:
-
Green
-
Market:
-
Global
Quick Details
-
Type:
-
ADAPTER
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lisen Plug
-
Model Number:
-
LS6-1-134
-
Material:
-
PBT GF10
-
OE Number:
-
2312006-1
-
Number of Cavities:
-
6 Pin
-
Keywords:
-
Female Cable Connector
-
Connector:
-
Equivalent
-
Rated Voltage:
-
125V
-
Usage:
-
Electric Appliance
-
Temperature Range:
-
40 -+125
-
Color:
-
Green
-
Market:
-
Global
Product Paramenters
|

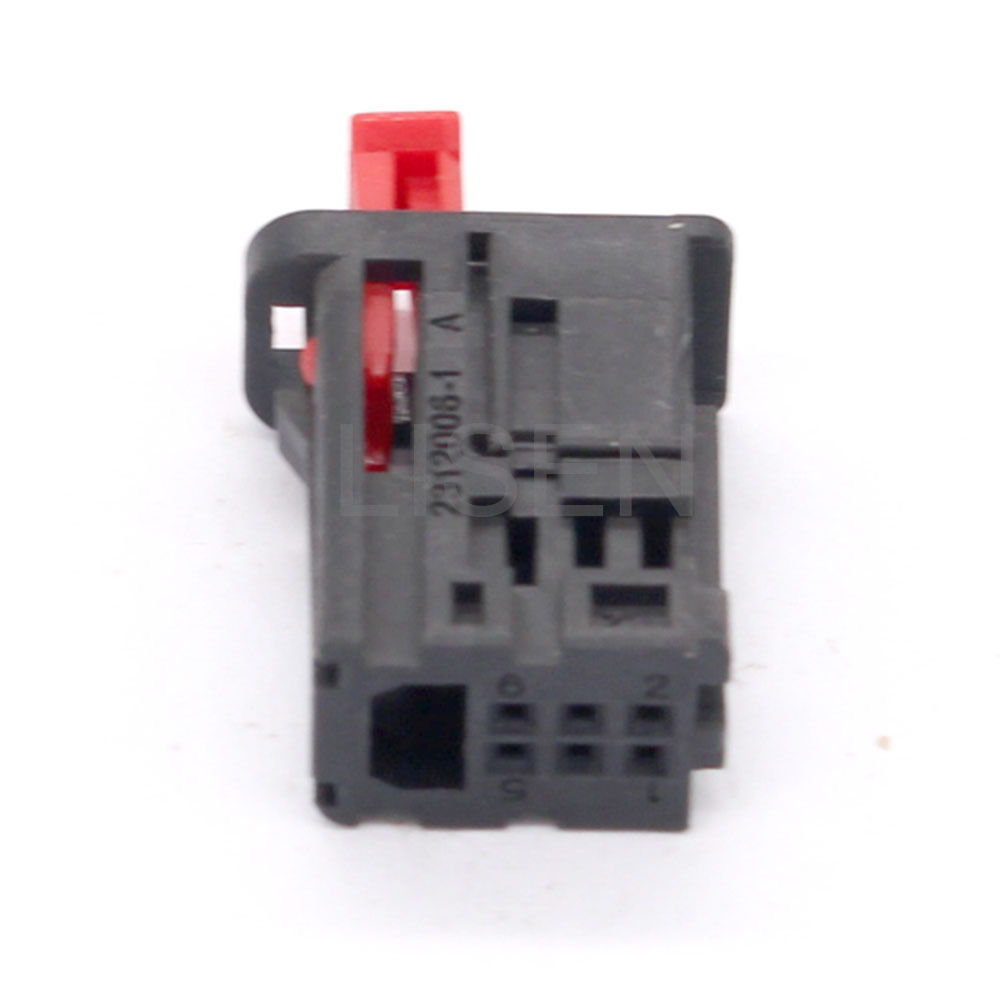

One-stop Service 6 Way TE PBT GF10 Female Cable Connector With Terminal 2312006-1
|
|
|
|
|
|||
|
Product Name
|
This connectors come complete with female terminal.
|
Application
|
Power,Wire to Board,Wire to Wire
|
|
|||
|
Keywords
|
Female Cable Connector
|
Connectors
|
headers & wire housing
|
|
|||
|
Manufacturer
|
Lisen
|
Current Rating
|
19 A
|
|
|||
|
Number of Positions
|
6 Position
|
Housing Materials
|
PA66
|
|
|||
|
Number of Rows
|
2 Row
|
Maximum Operating Temperature
|
+ 105C & +125 C
|
|
|||
|
Sealed/Unsealed
|
|
Minimum Operating Temperature
|
- 40 C
|
|
|||
|
Contact Gender
|
Socket (Female)
|
Mounting Style
|
Cable Mount / Free Hanging
|
|
|||
|
Housing Gender
|
Female
|
Termination Style
|
Crimp
|
|
|||
|
Contact Type
|
Socket
|
Type
|
Crimp Housing
|
|
|||
|
Features
|
With Connector Position Assurance Lock
|
Contact resistance
|
Initial
8mΩ Max. after durability tests 16mΩ Max. |
|
|||
|
Leak current
|
|
Seal
|
Initial
50kPa Min. after durability tests 30kPa Min. |
|
|||
|
Insulation resistance
|
100MΩ Min.
|
|
|
|
|||
