Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEWO
-
Model Number:
-
DW42BL40-2426
-
Torque:
-
625g.cm
-
Phase NO.:
-
3
-
Body length:
-
40mm
-
Motor weight:
-
250g
Quick Details
-
Speed(RPM):
-
4000rpm
-
Continuous Current(A):
-
others
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DEWO
-
Model Number:
-
DW42BL40-2426
-
Torque:
-
625g.cm
-
Phase NO.:
-
3
-
Body length:
-
40mm
-
Motor weight:
-
250g

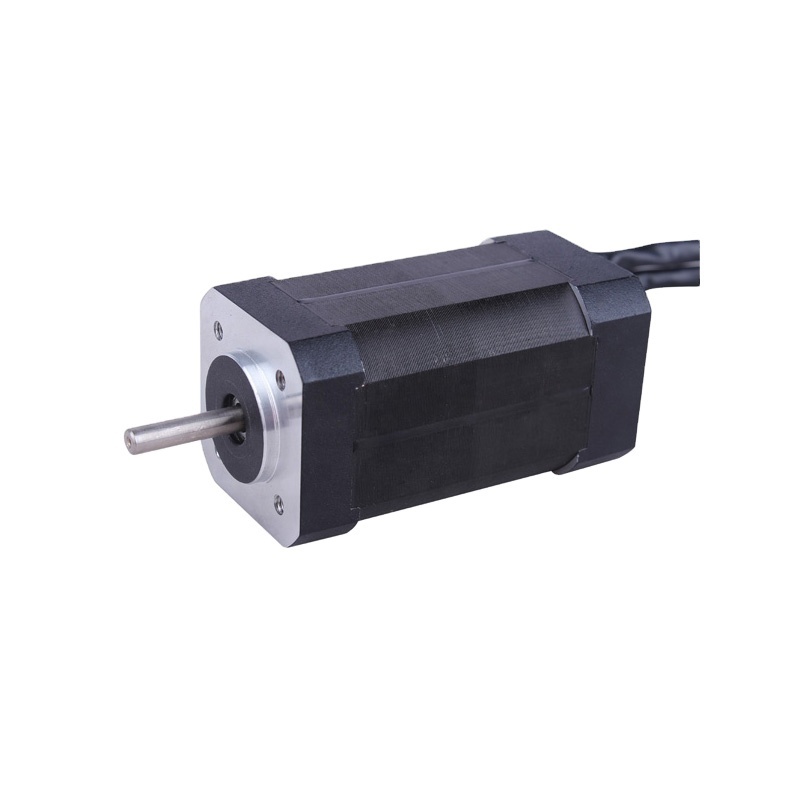

42mm 4000rpm bldc motor small brushless dc motor
Our Advantage:
1. Long working life
2.Low noise
3.High efficiency
4.Customized and OEM are acceptable
5.2 Years warranty
General specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.05mm/50g |
| Max radial force | 28N/20mm from the flange |
| Max axial force | 15N |
| Insulation class | Class F |
| IP class |
IP 40 |
| Dielectric strength | 500VDC for one minute |
| Insulation Resistance | 100MΩmin 500VDC |
Electrical Specification:
| Model | Phase No. | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Torque (g.cm) |
Rated Power (W) |
Mass (Kg) |
Body Length (mm) |
| DW42BLDC40-2426 | 3 | 24 | 4000 | 625 | 26 | 0.25 | 40 |
| DW42BLDC60-2452 | 3 | 24 | 4000 | 1250 | 52.5 | 0.35 | 60 |
| DW42BLDC80-2477 | 3 | 24 | 4000 | 1850 | 77.5 | 0.45 | 80 |
| DW42BLDC100-24105 | 3 | 24 | 4000 | 2500 | 105 | 0.55 | 100 |
Dimensions:
(Unit=mm)
Electrical Connection:
| Lead No. | Lead Color | Lead Gauge | Function | Description |
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS |
| 2 | Black | GND | GROUND FOR HALL SENSORS | |
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |
| 4 | Green | HALL B | SIGNAL OF HALL B | |
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C |
| 1 | Yellow | PHASE U | MOTOR PHASE U | |
| 2 | Green | PHASE V | MOTOR PHASE V | |
| 3 | Blue | PHASE W | MOTOR PHASE W |
Produce process
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
