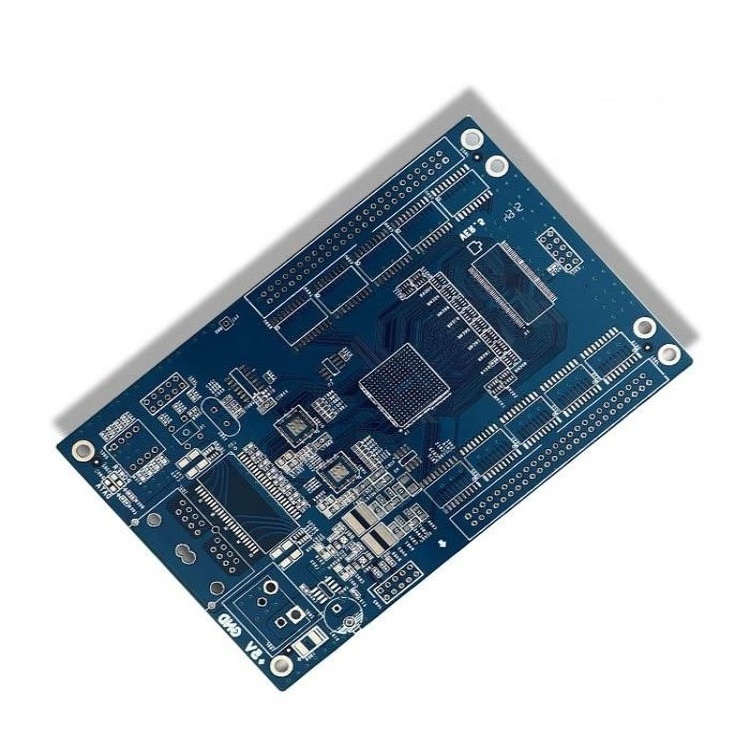

Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MZH PCB
-
Copper Thickness:
-
0.5-12OZ
-
Min. Hole Size:
-
0.1MM
-
Min. Line Width:
-
3MIL
-
Min. Line Spacing:
-
3MIL
-
Surface Finishing:
-
HAL,ENIG, OSP, Immersion Tin/Silver, Hard Gold
-
Board Size:
-
100x42mm
-
Application:
-
Electronics Device
-
Certificate:
-
ISO9001/Iso14001/CE/ROHS
-
MOQ:
-
1 PCS
-
Solder mask:
-
White Black Green Blue Red
-
Testing Service:
-
E-test
-
Layer:
-
1-40 Layers
-
Package:
-
Vacuum Package
-
Silkscreen Color:
-
Black.white.yellow
-
Material:
-
FR4 94v0 Circuit Board
-
Delivery time:
-
3-7days
Quick Details
-
Base Material:
-
FR-4,CEM-1,CEM-3, Rogers, Arlon, Polymide
-
Board Thickness:
-
0.2-7.0MM
-
Model Number:
-
PCB15 -88d7fyd
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MZH PCB
-
Copper Thickness:
-
0.5-12OZ
-
Min. Hole Size:
-
0.1MM
-
Min. Line Width:
-
3MIL
-
Min. Line Spacing:
-
3MIL
-
Surface Finishing:
-
HAL,ENIG, OSP, Immersion Tin/Silver, Hard Gold
-
Board Size:
-
100x42mm
-
Application:
-
Electronics Device
-
Certificate:
-
ISO9001/Iso14001/CE/ROHS
-
MOQ:
-
1 PCS
-
Solder mask:
-
White Black Green Blue Red
-
Testing Service:
-
E-test
-
Layer:
-
1-40 Layers
-
Package:
-
Vacuum Package
-
Silkscreen Color:
-
Black.white.yellow
-
Material:
-
FR4 94v0 Circuit Board
-
Delivery time:
-
3-7days
Product Description
Specification
|
PCB CAPABILITY
|
|
|
|
|||
|
ITEM
|
RIGID PCB
|
FPC
|
Rigid-Flex PCB
|
|||
|
Max layer
|
L40
|
L8
|
L18
|
|||
|
Max panel size
|
22.5x32inch
|
9x14inch
|
22.5x32inch
|
|||
|
Min board size
|
5x5mm
|
5x10mm
|
10x10mm
|
|||
|
Min trace width/gap
|
3/3mil
|
3/3mil
|
3/3mil
|
|||
|
Max copper weight(outer layer)
|
12OZ
|
2OZ
|
3OZ
|
|||
|
Max copper weight(inner layer)
|
6OZ
|
2OZ
|
6OZ
|
|||
|
Layer to layer registration
|
±3mil
|
±3mil
|
±3mil
|
|||
|
Max aspect ratio(mechanical drilling)
|
20:1
|
/
|
/
|
|||
|
Max aspect ratio(laser drilling)
|
1:1
|
/
|
/
|
|||
|
PTH tolerance(standard)
|
±3mil
|
±3mil
|
±3mil
|
|||
|
PTH tolerance(press fit)
|
±2mil
|
±2mil
|
±2mil
|
|||
|
NPTH tolerance
|
±2mil
|
±2mil
|
±2mil
|
|||
|
Board thickness
|
0.2-7.0mm
|
0.1-0.5mm
|
0.4-3.0mm
|
|||
|
Min PTH (mechanical drilling)
|
0.15mm
|
0.1mm
|
0.15mm
|
|||
|
Min PTH (laser drilling)
|
0.1mm
|
0.1mm
|
0.1mm
|
|||
|
Hole wall copper
|
0.4-2mil(10-50um)
|
0.4-2mil(10-50um)
|
0.4-2mil(10-50um)
|
|||
|
Impedance tolerance
|
±10%
|
±10%
|
±10%
|
|||
|
Thickness tolerance(<1.0mm)
|
±0.1mm
|
±0.05mm
|
±0.1mm
|
|||
|
Thickness tolerance(>=1.0mm)
|
±10%
|
/
|
±10%
|
|||
|
Min BGA size
|
7mil
|
7mil
|
7mil
|
|||
|
Finish treatment
|
HAL,ENIG,Immersion Tin, Immersion Silver,Selective Hard Gold, OSP, EIEPIG, Gold Fingers
|
ENIG,Immersion Tin, Immersion Silver,Selective Hard Gold, OSP, EIEPIG, Gold Fingers
|
HAL,ENIG,Immersion Tin, Immersion Silver,Selective Hard Gold, OSP, EIEPIG, Gold Fingers
|
|||
|
Solder mask color
|
green,blue,black,yellow,red,purple,white
|
green,blue,black,yellow,red,purple,white
|
green,blue,black,yellow,red,purple,white
|
|||
|
Min solder mask dam
|
3mil
|
8mil
|
3mil
|
|||
|
Silkscreen color
|
white,yellow,black,red
|
white,yellow,black,red
|
white,yellow,black,red
|
|||
|
Min silkscreen width/height
|
4/23mil
|
4/23mil
|
4/23mil
|
|||
|
Warp & twist
|
0.75%
|
0
|
0.75%
|
|||
|
PCBA CAPABILITY
|
|
|
||
|
Stencil size range
|
29x29inch
|
|
||
|
SMT
|
Position accuracy:25um
|
|
||
|
|
Components size:0201-150mm
|
|
||
|
|
Max.PCB size:680x500mm
|
|
||
|
|
Min.PCB size:50x50mm
|
|
||
|
|
Min.PCB thickness:0.3-6.0mm
|
|
||
|
|
Min.IC pitch:0.3mm
|
|
||
|
Wave-solder
|
Max.PCB width:450mm
|
|
||
|
|
Min.PCB width:no limited
|
|
||
|
|
Component height:Top 120mm/Bottom 15mm
|
|
||
|
Min.BGA pitch
|
0.08"
|
|
||
|
Max.BGA size
|
74x74mm
|
|
||
|
BGA ball pitch
|
1.00mm(min),3.00mm(max)
|
|
||
|
BGA ball diameter
|
0.4mm(min),1.00mm(max)
|
|
||
|
QFP lead pitch
|
0.38mm(min),2.54mm(max)
|
|
||
|
Testing
|
X-Ray,AOI,Microscope to 20X
|
|
||
|
|
ICT,Function test,Temperature cycling
|
|
||
|
Frequency of stencil cleaning
|
1 time/5-10 PCS
|
|
||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1
What service could you provide?
A1.
Reverse-Engineering,PCB fabrication,PCBA assembly,Stencil fabrication, Components Sourcing, Function Test.
Q2.
What is your order process?
A2.
send file to us and we will offer quotation
place official PO to us and we will confirm the order
we create the invoice for payment
we start production
we will send board to the request address
Q3.
What is needed for PCB and PCBA quotation?
A3.
PCB: Quantity, Gerber file and specification(material, surface finish treatment, copper weight, board thickness, solder mask &
silkscreen color)
PCBA: PCB working file, BOM, Testing documents(if you need function test)
Q4.
Will you keep the file as confidencial?
A4.
Yes, we can sign NDA and ensure the file is only used for PCB fabrication.
Q5.
Do you have MOQ?
A5.
MOQ is 1 PCS. We support sample to mass production.
Q6.
How can you guarantee the product with good quality?
A6.
For PCB, all board will pass AOI and Electronic testing.
For PCBA, we will use AOI, X-Ray to control the quality.
All of our products meet IPC-II standard.
Q7.
What file formats do you accept for PCB production?
A7.
Gerber file,CAM350,Protel,ODB+(.TGZ)
Q8.
Is your quotation includes shipping cost?
A8.
We quoted shipping cost according to your delivery address, by DHL/UPS/FedEx...
You can also use your own forwarder.
Q9.
What payment format do we accept?
A9.
Paypal,Credit Card,Western Union,T/T...
