Quick Details
-
Brand Name:
-
NuFiber
-
Application:
-
(Data Center)
-
Product name:
-
16slots Card type media converter RACK Mounted
-
Size:
-
485mm*352mm*90mm
-
Power supply:
-
AC Input 100-240V; or DC48V
-
Material:
-
Iron Case
-
OEM and ODM:
-
OEM/ODM Order Is Available
-
Number or Slots:
-
16slots
-
G.W.:
-
7kg
-
Distance:
-
100M or 1000M media converter
-
media converter insert:
-
16pcs Card type media converter
-
Warranty:
-
3 years
-
No. of Fiber:
-
16 slots
Quick Details
-
Type:
-
Racks & Enclosure
-
Model Number:
-
NF-RACK1600D-2U
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NuFiber
-
Application:
-
(Data Center)
-
Product name:
-
16slots Card type media converter RACK Mounted
-
Size:
-
485mm*352mm*90mm
-
Power supply:
-
AC Input 100-240V; or DC48V
-
Material:
-
Iron Case
-
OEM and ODM:
-
OEM/ODM Order Is Available
-
Number or Slots:
-
16slots
-
G.W.:
-
7kg
-
Distance:
-
100M or 1000M media converter
-
media converter insert:
-
16pcs Card type media converter
-
Warranty:
-
3 years
-
No. of Fiber:
-
16 slots

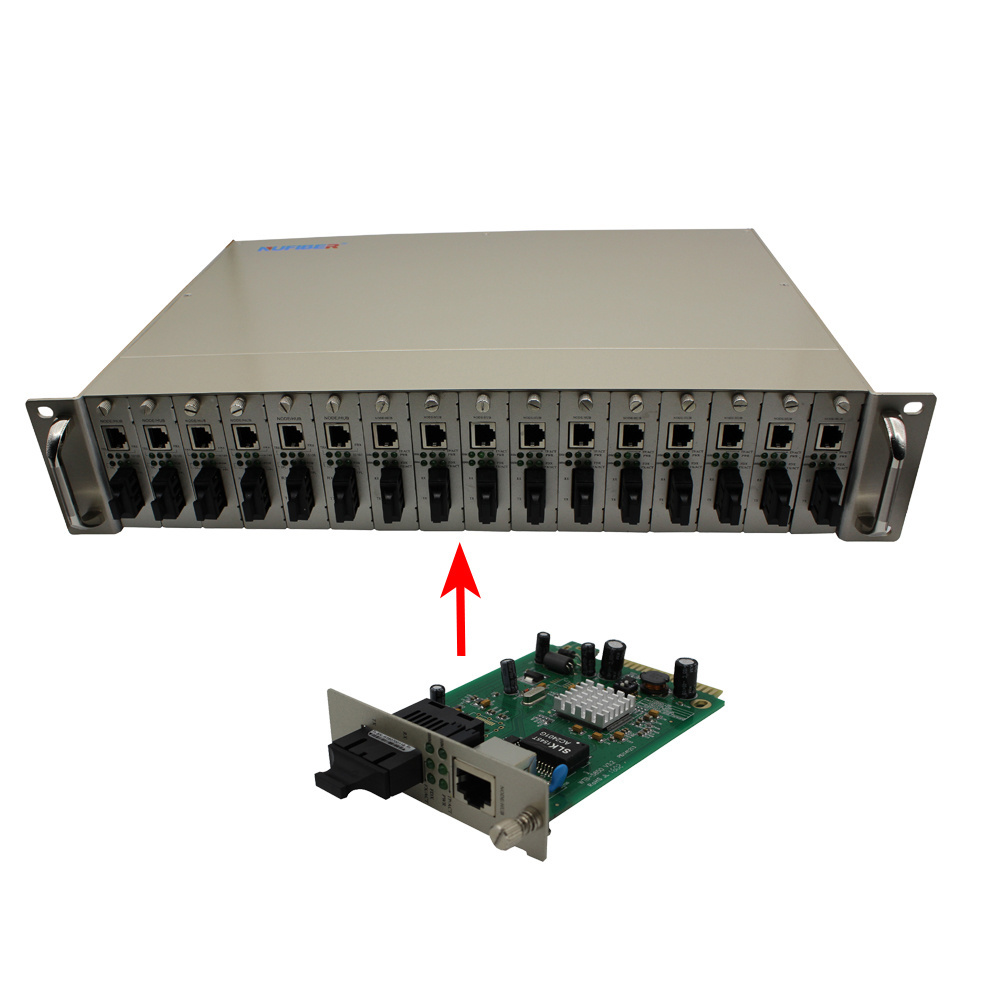

NF-RACK1600D-2U 1 6 slots 2U Rack Mount Chassis Media Converter
19'' 2U 1 6 slot media converter Rack mount Chassis for Standalone Media Converter, dual DC power supply.
|
Model No. |
Description |
|
NF-R ACK 1400D -2U |
19",2U,14-Slot Rack Mount Chassis for Standalone Media converter Dual Power |
|
NF-R ACK 1400 S-2U |
19",2U,14-Slot Rack Mount Chassis for Standalone Media converter Single Power |
|
NF-R ACK 1600D -2U |
19",2U,1 6 -Slot Rack Mount Chassis for Card Type Media converter Dual Power |
|
NF-R ACK 1600 S-2U |
19",2U,1 6 -Slot Rack Mount Chassis for Card Type Media converter Single Power |
1.General Description
The NF-RACK1600D-2U 19-inch media converter rack mount c h assis is designed to supply 16 slots of various types of media converter modules at a central location for multiple segments cross connection. Users can transparently link backbone equipment such as switches, routers to LAN work group segments. Installation is easy, simply slide module into the chassis. All of the modules are hot swappable , thus eliminating costly network downtime. In addition to the internal power supply, a back up supply is available as an optional extra.
2.Features
1. 19’ 2U rack, easy for focus management
2. 16 slots for media converter module
3. d ual /single fiber with bi-direction optional
4. Auto-identify MDI/MDIX
5. F ull/half duplex auto negotiation
6. L ow power loss and good heat dissipation
7. S table performance, large capacity of power supply,ease for management and maintenance
3.Applications:
-The Unmanaged RACK Chassis Media Converter transmits 10/100Base or 10/100/1000Base Ethernet electrical signal through fiber optical cable, realize TX/FX converter
-Apply to 10/100 M fast internet external power supply media converter
-Apply to 10/100/1000 M Gigabit network external power supply media converter
-Applies to Duplex or simplex fiber media converter with SC/FC/ST/LC Media converter
4. Technical parameters
|
Product name |
16slots 19inch 2U RACK Mounted for Card type media converter |
|
Shell Material |
Iron Case |
|
Number of slots |
1 6 slots |
|
Media Converter insert |
16pcs card type media converters |
|
Power |
Input: AC 100 ~ 2 6 0V, 50~60HZ Output: DC 5V 1A (max) for each media converter |
|
Power protection |
protection from over voltage, over current and short circuit |
|
Max power consumption |
<5W each port; Total 95W |
|
MTBF |
> 100,000 hours |
|
Operating Temp |
0 °C to +7 0°C |
|
Storage Temp |
-20 °C to +80 °C |
|
Relative Humidity |
5%~95% ( no condensing ) |
|
Dimensions |
4 85mm* 352mm* 90mm |
|
Net Weight: |
6KG |
|
Package Size: |
556*410*360MM |
|
G./W.: |
6.8KG |
Welcome to send us inquiry for this products !
