Quick Details
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDP1-045-040-41
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0
-
Cable Length:
-
11.4cm
-
Outlet Size:
-
Quick Attach
-
Power:
-
198W
-
Max Flow Rate:
-
4.5 GPM / 17.0 LPM
-
Max Pressure:
-
40 PSI / 2.8 Bar
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Valve Material:
-
EPDM
-
Self Priming:
-
6 ft [1.8 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Inlet & Oulet Port:
-
Quick Attach / Multiple Fitting Options
-
Certification:
-
ce
Quick Details
-
Application:
-
Family Homes, Irrigation and Agriculture, Marine, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
40PSI
-
Voltage:
-
12V DC, 12V DC
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFDP1-045-040-41
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0
-
Cable Length:
-
11.4cm
-
Outlet Size:
-
Quick Attach
-
Power:
-
198W
-
Max Flow Rate:
-
4.5 GPM / 17.0 LPM
-
Max Pressure:
-
40 PSI / 2.8 Bar
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Valve Material:
-
EPDM
-
Self Priming:
-
6 ft [1.8 m] Suction
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Inlet & Oulet Port:
-
Quick Attach / Multiple Fitting Options
-
Certification:
-
ce
Product Overview

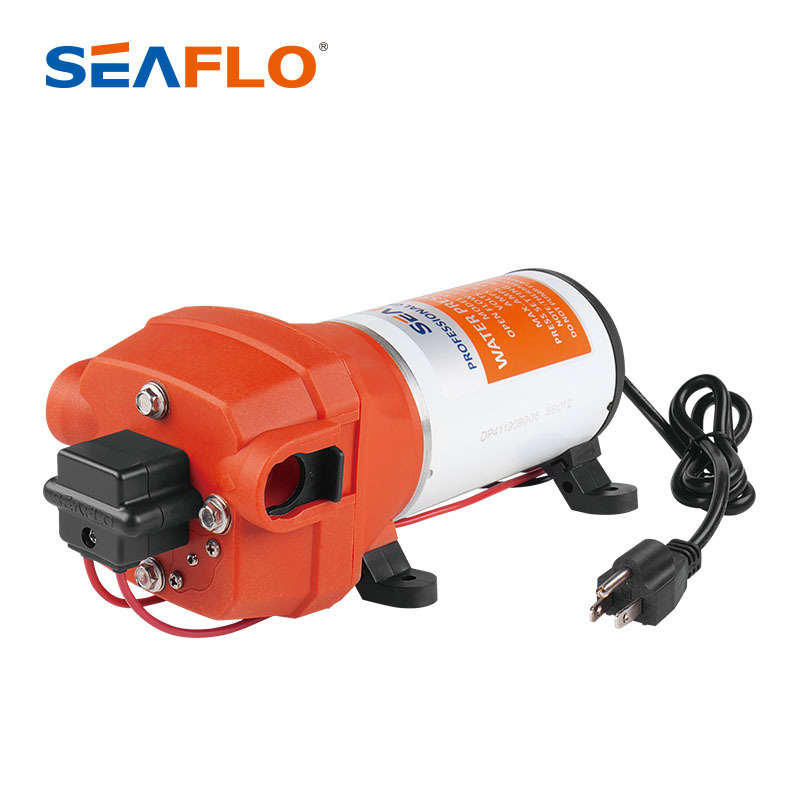

41 Series DC Diaphragm Pumps
The 41-Series pump provides high volume water flow with reduced pump cycling, thanks to the quad chamber diaphragm and internal bypass. These models are designed to run on water systems with no accumulator tank necessary, and up to five outlets. It is alsosuited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 3.3 gallons perminute, suitable in a system of up to five fixtures. The 41-Series pumps are self-priming, and can run dry without damage,performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when faucet is opened and closed.?They're easy to install, service and winterize with quick snap-in port fittings.
MORE FEATURES & BENEFITS
• Up to 4.5 GPM
• Can supply up to 4 fixtures
• Quick-Connect fittings
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Rubber mounting-feet
• Can be used for Fresh & Salt Water
• Adjustable pressure switch
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
• Up to 4.5 GPM
• Can supply up to 4 fixtures
• Quick-Connect fittings
• Self priming
• Run dry safe
• On-demand use
• Industry Standard mounting pattern
• Rubber mounting-feet
• Can be used for Fresh & Salt Water
• Adjustable pressure switch
• 16 AWG, 4.5"(11.4 cm) long Leads
• 2 Year Warranty
• Meets or exceeds RoHS, SGS, and ISO standards
PRODUCT SPECIFICATIONS
|
Model
|
Voltage
|
Open Flow
（GPM/LPM）
|
Max Draw
|
Shut-off Pressure
（PSI/BAR)
|
|
SFDP1-045-040-41
|
12V
|
4.5 / 17.0
|
12.13
|
40 / 2.8
|
|
SFDP2-045-040-41
|
24V
|
4.5 / 17.0
|
6.07
|
40 / 2.8
|
|
SFDPA1-045-040-41
|
115V
|
4.5 / 17.0
|
1.54
|
40 / 2.8
|
|
SFDPA2-045-040-41
|
220V
|
4.5 / 17.0
|
0.77
|
40 / 2.8
|
