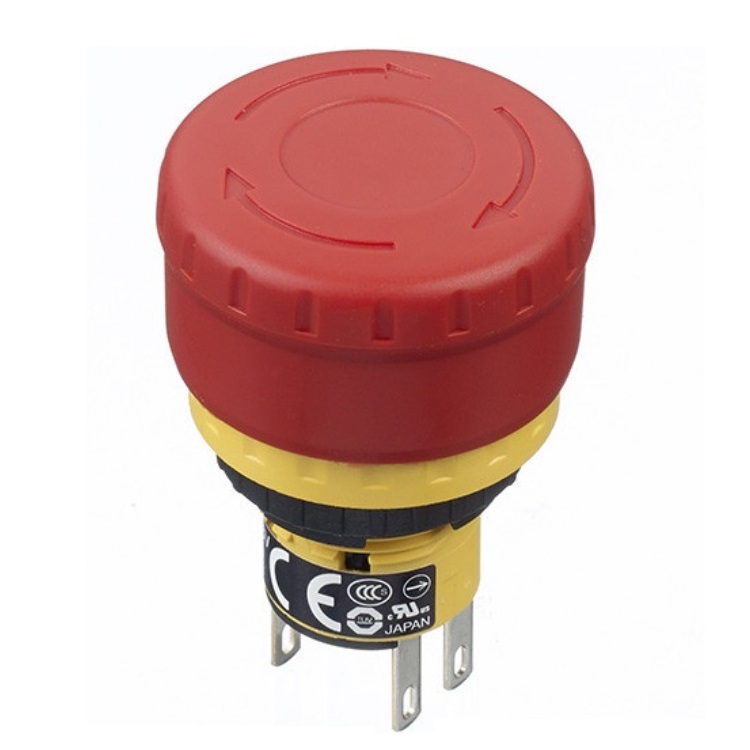

Idec E-Stop compact emergency stop pushbutton switch XA1E-BV

Idec E-Stop compact emergency stop pushbutton switch XA1E-BV3U02R
A very compact waterproof product.
The XA range includes the patented IDEC "Reverse energy structure" which opens the contact in case the button is damaged.
Reset is done by either pulling or twisting the button.
We provide reliable switches. We worked with sensors, controllers, switches and relays for more than 20 years.
We have our sales offices in several main cities in China, such as Shanghai, Shenzhen, Qingdao, Tianjin, Changsha, and certainly Beijing.
Please check the attached specifications. Welcome to contact us to choose suitable products for you.
After choosing exact model, we'll give a reasonable quote.
• Ø16.2 mm mounting hole;
• 19.5 mm depth (Solder terminal) or 23.9mm depth (Solder/tab terminal) behind the panel;
• Two button sizes - Ø 30 (29) mm & Ø 40 mm;
Panel Thickness: 0.8 to 4.5
• Two button colors - red for emergency and yellow for stop switch;
• Two ways of resetting - pulling and turning;
• Solder or solder/tab terminal #110 for easy connections;
• Direct opening action mechanism (IEC 60947-5-5 §5,2, IEC 60947-5-1, Annex K);
• Safety lock mechanism to prevent inadvertent operation (IEC 60947-5-5, §6,2);
• Rated insulation voltage (Ui): 250 V;
Rated Operating Voltage (Ue) 30V 125V 250V
• Rated thermal current (Ith): 5 A
• Up to 2 NC contacts
• Contact resistance: 50 m Ohm max (initial value);
• Insulation resistance: 100 M Ohm min (500 V DC megger);
• Overvoltage Category: II (IEC 60664-1);
• Impulse Withstand Voltage: 2.5 kV (IEC60,664-1/60,947-5-1);
• Short-circuit Protection: 250 V/10 A fuse, (Type aM IEC60269-1, IEC60269-2)
• Electrical durability : 100,000 operations min;
• Minimum applicable load : 5 V AC/DC, 1 mA;
• Operating temperatures: -25 to +60 °C (no freezing);
• Operating humidity: 45 to 85% RH (no condensation);
• Storage temperatures: -45 to +80 °C;
• Degree of protection (IEC 60529): IP65 waterproof
• Vibration resistance:
Operating extremes: 10 to 500 Hz, amplitude 0,35 mm, acceleration 50 m/s²;
Damage limits: 10 to 500 Hz, amplitude 0,35 mm, acceleration 50 m/s²;
• Shock resistance:
Operating extremes: 150 m/s² maximum
Damage limits: 1,000 m/s² maximum
Materials
• Actuator : Plastic;
• Contact : gold-plated
• Mechanical durability : 1,000,000 operations min;
• Push to lock : 10,5 N, Pull to reset : 10 N, Turn to reset : 0,16 Nm
• Mechanical durability : 1,000,000 operations min;
• Push to lock : 10,5 N, Pull to reset : 10 N, Turn to reset : 0,16 Nm
Approvals : CSA; UL
Weight (approx.): 14g
