Quick Details
-
Model Number:
-
YB68-P
-
Warranty:
-
12 Months
-
frequency:
-
433.92mhz
-
pressure rang:
-
0-7.0Bar
-
Solution:
-
Infineon
-
Operating voltage:
-
3.7-5v
-
Display mode:
-
LCD Color display
-
Working temperature:
-
-30°C-85°C
-
Bright operating current:
-
≤6mA
-
keyword:
-
Internal Sensors
-
Max Pressure:
-
< 100 Psi
Quick Details
-
Voltage:
-
3V DC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yoelbaer
-
Model Number:
-
YB68-P
-
Warranty:
-
12 Months
-
frequency:
-
433.92mhz
-
pressure rang:
-
0-7.0Bar
-
Solution:
-
Infineon
-
Operating voltage:
-
3.7-5v
-
Display mode:
-
LCD Color display
-
Working temperature:
-
-30°C-85°C
-
Bright operating current:
-
≤6mA
-
keyword:
-
Internal Sensors
-
Max Pressure:
-
< 100 Psi

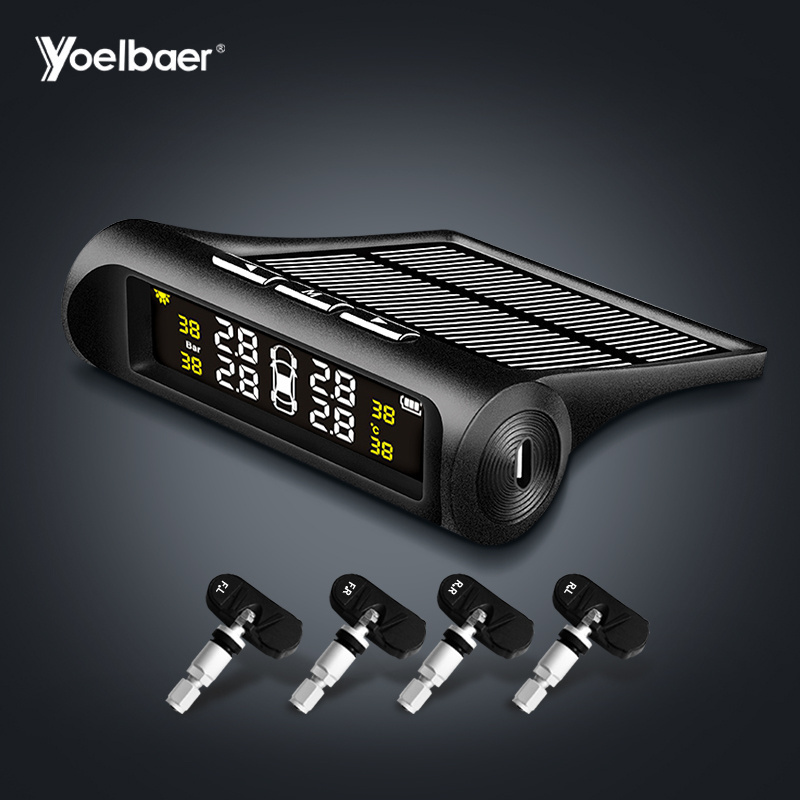

High Sensitive Extenal Internal Sensors TPMS Tire Pressure Monitoring System
|
Monitor specification |
Sensor specification |
||
|
Operating voltage |
3.7-5V |
Battery life |
2-3 years |
|
Storage temperature |
-30 ° C-90 ° C |
Storage temperature |
-30 ° C-90 ° C |
|
W orking temperature |
-30 ° C-85 ° C |
W orking temperature |
-30 ° C-85 ° C |
|
Emission frequency |
433.92MHz ± 50KHz |
Operating voltage |
2.1-3.6V |
|
Signal sensitivity |
-90dbm |
Transmitted power |
≤ 10dBm |
|
Display mode |
LCD Color display |
Pressure resolution |
± 0.1Bar |
|
Working pressure |
0-99Psi |
Pressure range |
0-7.0Bar |
|
Bright operating current |
≤ 6mA |
Waterproof grade |
IP67 |
|
Black operating current |
≤ 4mA |
L ithium battery |
CR1632 |
1.Use solar energy to get electricity,with 4 internal or external sensors.
2.LCD pannel,with extra Micro USB port for charging.
3.Light weight design for sensor,no need to adjust to be balance when the tire moving.
4.Real-time Monitor the tempreature and pressure with high degree accuracy
5.Save fuel,foresee air leakage,reduce tire wearout,balance tire pressure,ensure safety driving.
6.RF wireless technology,can auto-alarm,when tire pressure and temperature is abnormal.
7.With two pressure unit"PSI,BAR " and two temperature unit"℃,℉" for option.
8.Sensor waterproof grade: IP67.
9..With Infineon Chip and RENATA anti-explosion battery.
