Quick Details
-
Busbar Conductor material:
-
Pure Copper
-
Busbar Product type:
-
Pin type Fork Type
-
Busbar Reference Current:
-
32A/50A/63A/80A/100A/125A
-
Busbar Cross-sectional area:
-
6/8/10/13/16/20mm2
-
Busbar Thickness:
-
1.2/1.4/1.5/1.7/1.8mm
-
Busbar Width:
-
5mm/7mm/9mm
-
Busbar Material of insulation:
-
fire-resistance PVC
-
Busbar Certificate:
-
CE,ROHS,VDE,REACH
-
Busbar Number of poles:
-
1P/2P/3P/4P
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KASEEY
-
Model Number:
-
PIN FORK-1-4P
-
Busbar Conductor material:
-
Pure Copper
-
Busbar Product type:
-
Pin type Fork Type
-
Busbar Reference Current:
-
32A/50A/63A/80A/100A/125A
-
Busbar Cross-sectional area:
-
6/8/10/13/16/20mm2
-
Busbar Thickness:
-
1.2/1.4/1.5/1.7/1.8mm
-
Busbar Width:
-
5mm/7mm/9mm
-
Busbar Material of insulation:
-
fire-resistance PVC
-
Busbar Certificate:
-
CE,ROHS,VDE,REACH
-
Busbar Number of poles:
-
1P/2P/3P/4P
Specifications:
1. Pin/Fork/U type
2. Universal for MCB
3. Material: Pure copper, fire-resistance PVC
4. Current:32A,50A,63A,80A,100A
5. Rated Voltage: up to 415V
6. Standard length 1M
7. Support OEM & ODM
8. CE & ROHS,TUV,REACH Certificated

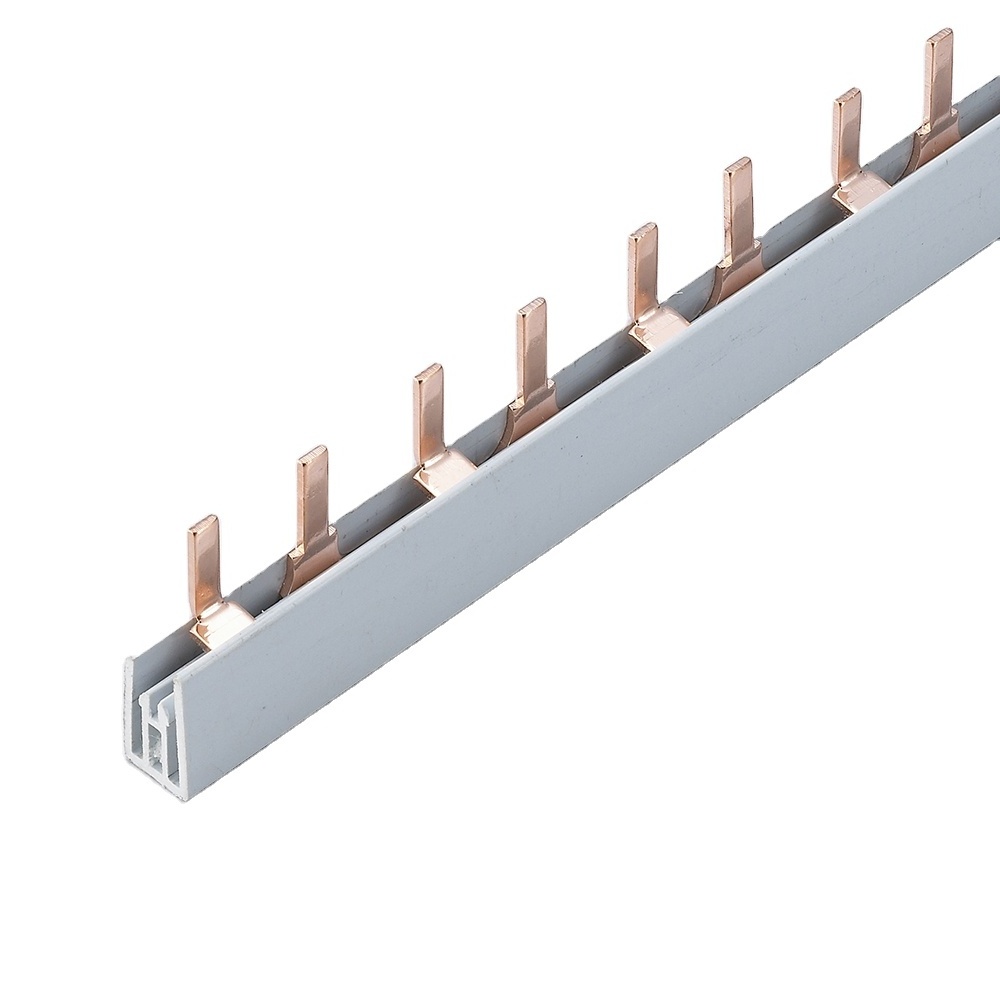

Product Description:
The present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with the characteristics of wider contact area,low power consumption and low temperature-rise.
Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.
