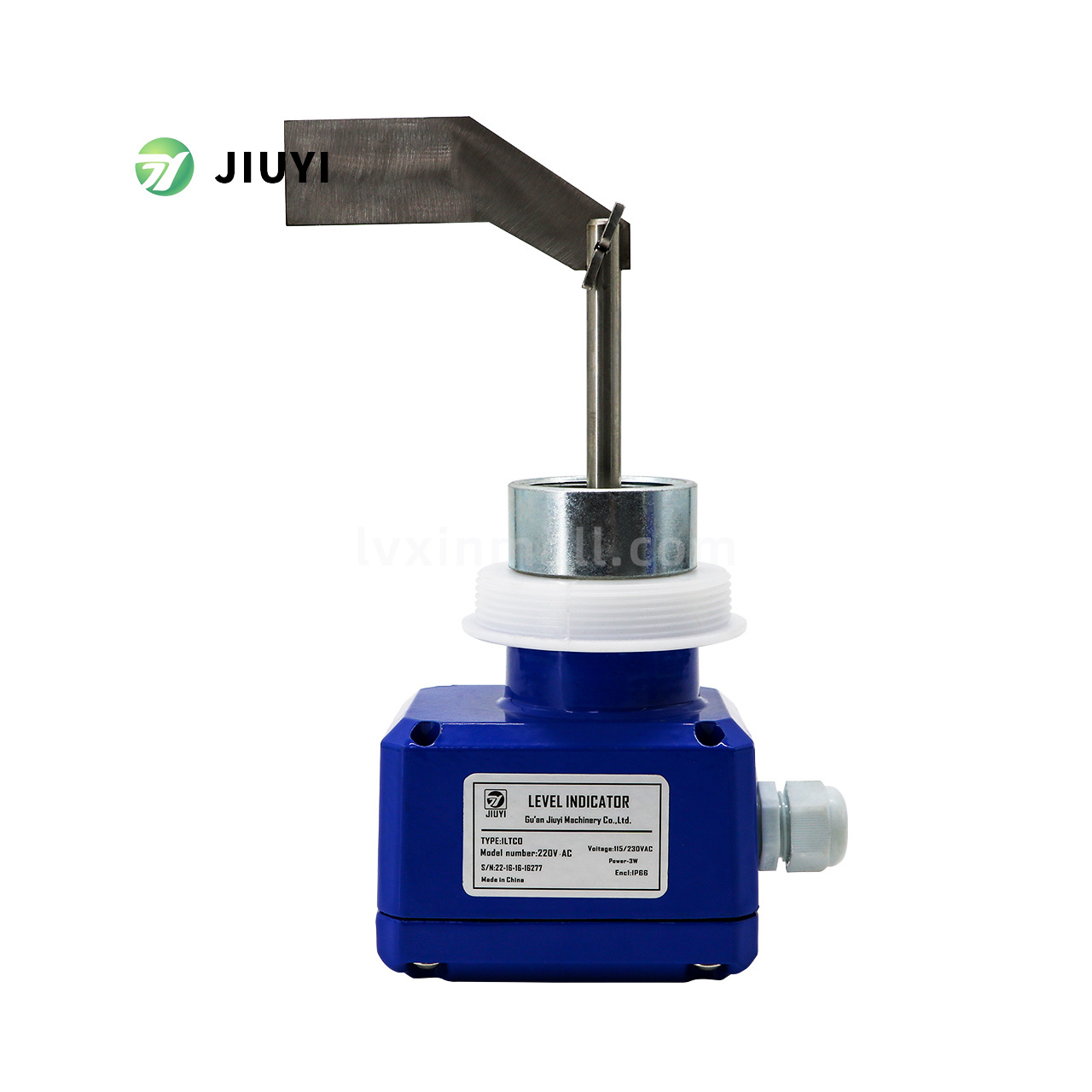

220VAC24V Silo Rotary Paddle Level Switch Control Instrument Of Anti Rotation Level Meter Material Level Alarm Of Mixing Station

ROTARY PADDLE LEVEL SWITCH

According to its use, the anti-rotation level gauge is also called anti-rotation level gauge or anti-rotation level switch. The anti-rotary material level switch uses an AC micro-motor to drive the detection blade to rotate at a slow speed after deceleration.

When the material level of the material to be measured rises and the rotation of the blade is blocked, the main shaft of the detection mechanism produces a rotational displacement. This displacement first actuates a micro switch, which sends out a signal of material.

Then another microswitch action cuts off the power supply of the micromotor and makes it stop rotating. As long as the material level in the warehouse remains unchanged, this state will always be maintained.

WORKING PRINCIPLE

When the material level drops and the detection vane loses its resistance, the detection mechanism will return to its original state by spring tension. Control the action of the micro switch of the power supply of the micro-motor to make the motor energized and rotate.

Then another micro switch action sends a signal, as long as there is no material blocking the rotation of the detection blade, this state will always be maintained.

Purpose: upper and lower limit measurement
Blade speed: 1.8 rpm
Medium density: ≥0.2g/cm³ (larger leaves)
Sensitivity: five gears adjustable (movement)
Ambient temperature: -10~+80℃
Power supply: 220V AC, 24V AC
Power consumption: more than 3W
Contact capacity: 220V 3A AC
Material temperature: -10~+80℃-10~+250℃
Installation method: flange installation G1½ pipe thread
