Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
838*720*3mm
-
Panel Efficiency:
-
20.24%
-
Keyword:
-
flexible solar panels
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
4.96A
-
Open Circuit Voltage Voc:
-
23.39V
-
Short Circuit Current lsc:
-
5.26A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
2.45±0.1kg
-
Operating Temperature:
-
-10~+70℃
-
Max. Over Current:
-
25A
Quick Details
-
Cell size:
-
125mmx125mm
-
Brand Name:
-
DHC
-
Model Number:
-
ESF100
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
838*720*3mm
-
Panel Efficiency:
-
20.24%
-
Keyword:
-
flexible solar panels
-
Power Tolerance:
-
0~+3%
-
Max. Power Voltage Vmap:
-
20.16V
-
Max. Power Current lmp:
-
4.96A
-
Open Circuit Voltage Voc:
-
23.39V
-
Short Circuit Current lsc:
-
5.26A
-
Cell Type:
-
Mono,166*83cm
-
Weight:
-
2.45±0.1kg
-
Operating Temperature:
-
-10~+70℃
-
Max. Over Current:
-
25A
Product Description

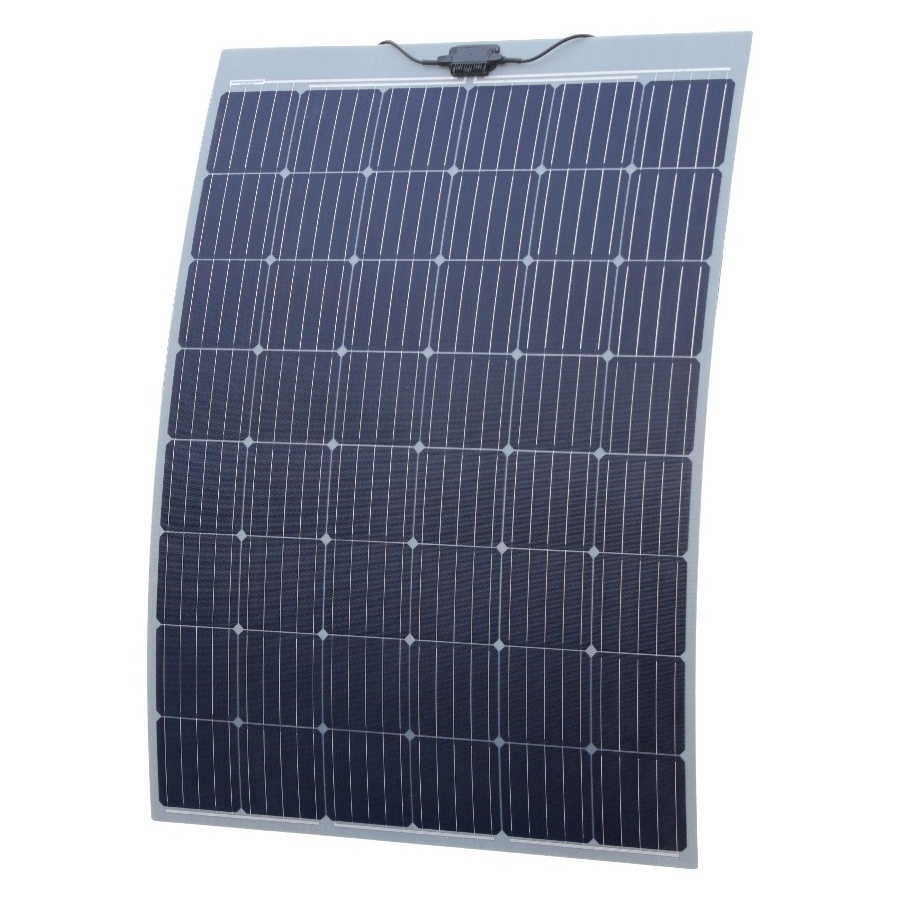

CE 100w lightweight solar module monocrystalline flexible pv panel thin film etfe flexible solar panels 200w for car roof
This flexible photovoltaic panel is specifically designed for distributed photovoltaic, module efficiency up to 20.24%. The weight of flexible solar module is only 30% of conventional glass solar module and the installation efficiency is increased by 60%, which effectively solved the load bearing problems of the roof top.
Specification
|
ELECTRICAL PARAMETERS STC
|
|
|
|
Model
|
ESF100
|
|
|
Max. Power Output Pmax
|
100W
|
|
|
Power Tolerance
|
0~+3％
|
|
|
Max. Power Voltage Vmap
|
20.16V
|
|
|
Max. Power Current lmp
|
4.96A
|
|
|
Open Circuit Voltage Voc
|
23.39V
|
|
|
Short Circuit Current lsc
|
5.26A
|
|
|
Module Eficiency
|
20.24%
|
|
|
*STC(Standard Test Condition): Irradiance 1000W/㎡,Cell Temperature 25℃,Air Mass 1.5.
|
|
|
|
MECHANICAL PARAMETERS
|
|
|
|
Cell Type
|
Mono，166*83cm
|
|
|
Cell Arrangement
|
36psc（3*9）
|
|
|
Size
|
838*720*3mm
|
|
|
Weight
|
2.45±0.1kg
|
|
CE 100w lightweight solar module monocrystalline flexible pv panel thin film etfe flexible solar panels 200w for car roof
Flexible solar module can be bent into curved or irregular shapes at will. It can be installed on the top of streamlined cars, the cabin surfaces of sailboats, racing boats, and motorboats, as well as on the roofs and exterior walls of buildings such as houses, in order to fully utilize the abundant solar energy and convert it into electricity.
Details Images
Flexible solar panels
- Light, Thin Design
2.45KG
weight, match various requirements for low-load projects.
- Ultra Flexible
Ultra-thin silicon wafers with advanced organic polymer encapsulation materials, fit all kinds of curved surface perfectly.
- High Efficiency and Reliability
Busbar-free design increases cell conversion efficiency, more power output can be achieved at low irradiance conditions.
- Customizable
Customized design for different scenarios.
- Convenient Installation
Easy installation and convenient transportation with lower cost.
