Quick Details
-
Type:
-
Ribbed Belt
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
huanball
-
Product name:
-
Ribbed Belt/Poly V-Belt
-
working temperature:
-
-30℃ ------ +80℃
-
MOQ:
-
10PCS
-
Packing:
-
in carton
-
Color:
-
Black
-
Structure:
-
Rubber Ribs
-
Certificate:
-
ISO/TS16949, ISO 9001
-
size:
-
Customized
-
Usage:
-
Power Transmission
Quick Details
-
Warranty:
-
one year
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining
-
Standard or Nonstandard:
-
Standard
-
Type:
-
Ribbed Belt
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
huanball
-
Product name:
-
Ribbed Belt/Poly V-Belt
-
working temperature:
-
-30℃ ------ +80℃
-
MOQ:
-
10PCS
-
Packing:
-
in carton
-
Color:
-
Black
-
Structure:
-
Rubber Ribs
-
Certificate:
-
ISO/TS16949, ISO 9001
-
size:
-
Customized
-
Usage:
-
Power Transmission

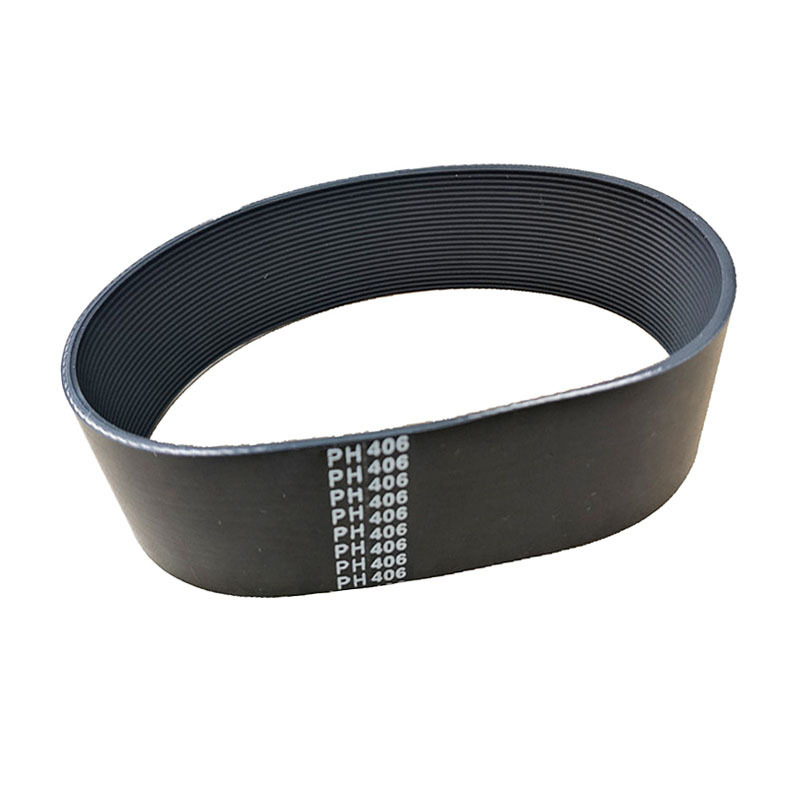

High Quality Rubber V Belt PH Type PH406 Poly V-Belt Multi-Ribbed Belt
| Multiple V-ribbed Belt is a circular rubber transmission belt with a flat belt as the base and a longitudinal 40 ° equidistant trapezoidal wedge arranged on the inner surface. Its working surface is the side of the wedge. In addition, the back of the multi wedge belt can also be transmitted, and an automatic tension adjuster can be used, making the transmission safer and more reliable. |
|
| 1.Product Name | Ribbed belt / poly v-belt / Multi wedge belt |
| 2.Material | Rubber wedge, polyester tensile body, polyamide covering fabric |
| 3.Function | Achieving power transmission under extremely high loads |
| 4.Working Temperature | Temperature range from -30°C to +80°C |
| 5.Application | Milling machines and lathes, textile machinery, spindle drives, paper machines, fan drives, washing machines, rotary dryers, sports equipment and DIY equipment, etc |
| 6.Warranty | 12 Months |
| 7.Package | Packed in carton |
| 8.Shipment | by sea,by air,by express |
| 9.Our Advantage |
1).Stable Product Quality 2).Long Lifespan, Very Durable 3).Competitive Price 4).Sufficient Capacity Supply 5).Rapidly Delivery 6).Provide Sample Service |
|
Structure: _________________________
(1).TENSION MEMBER: The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centres. (2).RUBBER RIBS: Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley (3).BACKING MATERIAL: Bias ply type fabric backing resists cracking and provides abrasion resistance. (4).INSULATION MATERIAL: Oil and heat risistant rubber is used to bond the tension member to the rest of the belt. |
|
Property: _________________________
-High transmission efficiency -Low noise -Smooth transmission -Compact structure -Low vibration and fast heat dissipation -High heat resistance, oil resistance, wear resistance -High elasticity -High flexural flexibility and lateral tear resistance -Long service life |
|
|
Model & Application: _________________________
-PH type: mainly used for medical equipment, electric tools, cutting machines, small conveyors, massage chairs, automated mechanical equipment -PJ type: mainly used for small compressors, lathe machines, electric tools, washing machines, rotary drum dryers, treadmills, and logistics drum conveying -PK type: mainly used for automotive engines and motorcycles -PL type: mainly used for compressors, elevator door machines, and industrial washing machines -PM type: mainly used in the paper industry and agricultural machinery |
| Type | p b | r b | r t | Rib Numbers |
Belt
Height |
Thickness |
Angle
of Rib |
length range
(mm) |
| PH | 1.60 | 0.30 | 0.15 | 3~54 | 2.0~3.0 | 3mm | 40° | 300~1270 |
| PJ | 2.34 |
0.40 |
0.20 | 3~36 | 3.0~4.0 | 4mm | 40° | 330~3048 |
| PK | 3.56 | 0.50 | 0.25 | 3~23 | 4.0~6.0 | 4-6mm | 40° | 559~3048 |
| PL | 4.70 | 0.40 | 0.40 | 3~16 | 6.8~7.2 | 10mm | 40° | 1270~4064 |
| PM | 9.40 | 0.75 | 0.75 | 3~8 | 15.5~16.0 | 17mm | 40° | 2540~4064 |
|
Our company specializes in producing rubber synchronous belts, PU synchronous belts, agricultural machinery belts, triangular belts, multi wedge belts, V-belts, open belts, and various transmission belt products that meet ISO national standards.
Company produces up to 8 million synchronous belts throughout the year, with highly competitive prices. The inventory of different models and specifications of transmission belts is sufficient to meet the needs of most customers, while supporting processing and customization.
We have advanced production inspection equipment and a scientific quality management system, and our products are widely used in various industries such as food machinery, weaving machinery, CNC machine tools, printing and packaging machinery, automobile manufacturing, industrial machinery, and so on. Huanball has become a designated cooperative enterprise for many overseas companies |
1) Q: I haven't done business with you before, how can i trust your company?
A: Our company are made-in-china golden supplier and passed Field certification by made-in-china. What's more,we've got authority certificates for ISO9001.
2) Q: How is quality ensured?
A: All our processes strictly adhere to ISO9001:2008 procedures, we have strict quality control from producing to delivery,100% inspection by professional testing centre. Small samples could be provided to you for testing.
3) Q: Can i get 1 or more samples?
A: Yes, sample orders welcomed.
4) Q: Do you give any discounts?
A: Yes, we'll surely try my best to help you get the best price and best service at the same time.
5) Q: How to Custom-made(OEM/ODM)?
A: Please send you product drawings or samples to us if you have, and we can custom-made as you requirements.We will also provide professional advices of the products to make the design to be maximize the performance.
