Quick Details
-
Model Number:
-
QI
-
Place of Origin:
-
Hebei, China
-
Theory:
-
Centrifugal Pump
-
Usage:
-
WATER
-
Power:
-
Electric
-
Standard or Nonstandard:
-
Standard
-
Material:
-
cast iron, cast steel, bronze, stainless steel ect
-
Color:
-
any color
-
Installation:
-
Horizontal
-
Shaft seal:
-
Packing seal and mechanical seal
-
Frequenct:
-
50hz, 60 hz
Quick Details
-
Application:
-
Automotive Industry, Biofuel Industry, Developing World Water Solutions, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Irrigation and Agriculture, Metal and Equipment Manufacturers, Pharmaceutical industry, Raw Water Intake, temperature control, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution
-
Pressure:
-
Low Pressure
-
Brand Name:
-
An Pump
-
Model Number:
-
QI
-
Place of Origin:
-
Hebei, China
-
Theory:
-
Centrifugal Pump
-
Usage:
-
WATER
-
Power:
-
Electric
-
Standard or Nonstandard:
-
Standard
-
Material:
-
cast iron, cast steel, bronze, stainless steel ect
-
Color:
-
any color
-
Installation:
-
Horizontal
-
Shaft seal:
-
Packing seal and mechanical seal
-
Frequenct:
-
50hz, 60 hz

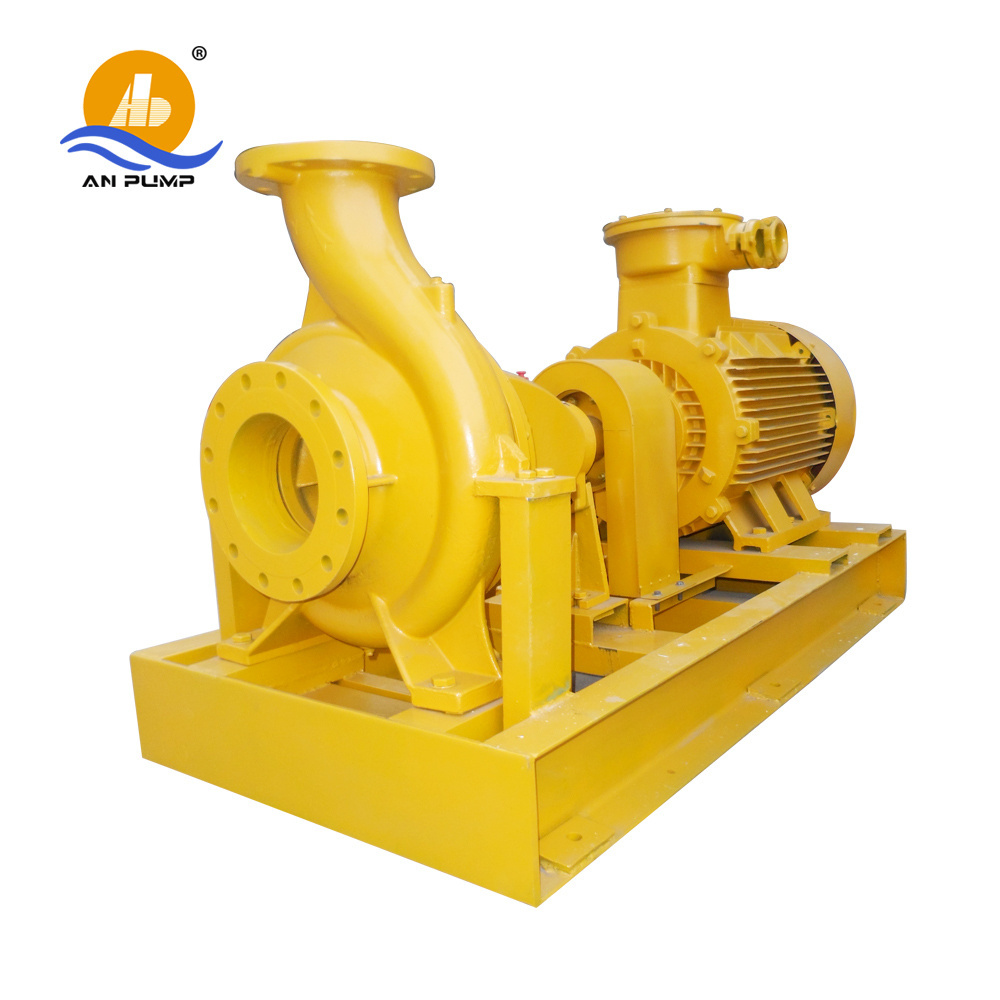

QI sea water pump Introduction
QI sea water pump is a single stage, single suction pump for pumping sea water and the other liquids physically and chemically similar to sea water.Because of the corrosive of sea water,wet parts of the pump are made of stainless steel.
QI sea water pump Performance Chart
QI Sea Water Pump Feature
QI sea water pump comply with ISO2858 international standard;
Easy installation and moving;
No overload design, make sure performance operate stably;
Mechanical seal;
High operation efficiency and good anti-cavitation performance;
Good performance of corrosion resistance.
QI sae water Pump Materials
There are different material for the pump parts for different liquid pumped
We could also do all kinds of special materials like bronze (brass), duplex stainless steel pump and parts for special application.
QI sae water Pump Structure
1.Casing 2.Casing Cover 3.Impeller 4.Shaft 5.Wear Ring
6. Impeller Nut 7. Brake Gasket 8.Shaft Sleeve 9.Gland 10.Water Seal Ring
11.Packing 12.Bearing Bracket
