- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
261kg
-
Size:
-
1600*1600*2100MM
-
Power:
-
NO
-
Weight (KG):
-
580 kg
-
Product name:
-
FRP Tank
-
Capacity:
-
2580L
-
Certificates:
-
CE ;NSF ; ISO9001
-
Color:
-
Blue / Nature / Grey or Custom
-
Working pressure:
-
150 psi
-
Working Temperature:
-
1-49℃(34-121)
-
Maximum Vacuum:
-
127mmHg(5"Hg)
-
Application:
-
Filtration
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
EWATER
-
Material:
-
PAPER BOX, PE, Fiber glass
-
Weight:
-
261kg
-
Size:
-
1600*1600*2100MM
-
Power:
-
NO
-
Weight (KG):
-
580 kg
-
Product name:
-
FRP Tank
-
Capacity:
-
2580L
-
Certificates:
-
CE ;NSF ; ISO9001
-
Color:
-
Blue / Nature / Grey or Custom
-
Working pressure:
-
150 psi
-
Working Temperature:
-
1-49℃(34-121)
-
Maximum Vacuum:
-
127mmHg(5"Hg)
-
Application:
-
Filtration
Product Description

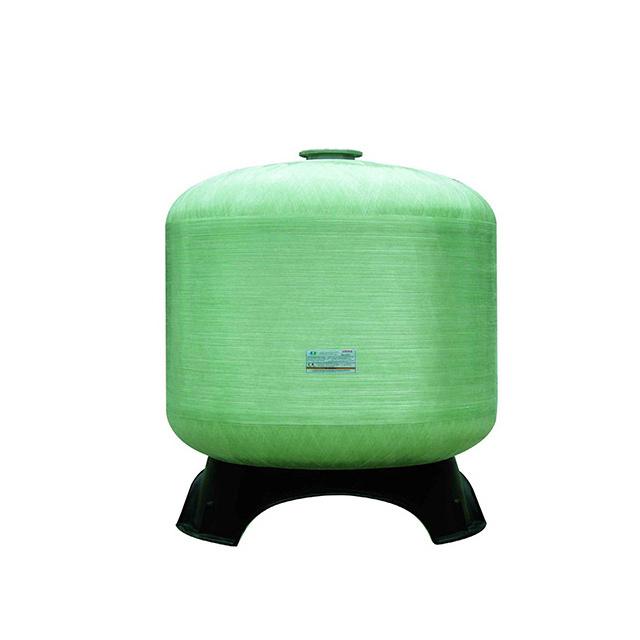

Water Treatment Composite Pressure Vessel Resin FRP Tank For Water Filter 6383
FRP Tank is a kind of nonmetallic composite which is made by resin and fiber glass. It has the advantages of corrosion resistance,high strength, long service life, flexible design, and strong processability. FRP tanks are widely used for RO system and water softeners.
• PE liner with FRP filament winding,high quality but competitive cost.
• Full choice of pressure tanks from 6''-72'' in diameter and from 13''-110'' in height.
•Available in natural ,blue ,black ,gray and any other colors on request.
•NSF ,CE and ISO9001 certified.
• Full choice of pressure tanks from 6''-72'' in diameter and from 13''-110'' in height.
•Available in natural ,blue ,black ,gray and any other colors on request.
•NSF ,CE and ISO9001 certified.
Product Paramenters
|
Characters
|
Fully Rustproof and corrosion resistant
|
|
|
Hight strength Light weight
|
|
|
Easy transport and installation
|
|
|
Nice appearance
|
|
Operating Specifications
|
Operating Pressure:150psi(10.5bar)
|
|
|
Operating Temperature:1-49℃(34-120℉)
|
|
|
Max.Vacuum:127mm Hg(5'' Hg)
|
|
|
Lowest Exposed Temperature:-27℃(-17℉)
|
|
Test Parameter
|
Burst test to 4 times(600psi) of its operating pressure
|
|
|
Exceed 100,000 times of circle test from 0-150psi with standing pressure
|
If this does not suit your needs, we have more models for you to choose from.
Manufacturing Technique
Blow moulded PE liner
Winding PE liner
Increase temperature and cure
Product packaging
The tank under 18" dia. are packed with paper carton.
21" dia or larger are packed with PE foaming sheet and paperboard outside.
30" dia or larger are add with wooden pallt under base.
30" dia or larger are add with wooden pallt under base.
Generally speaking,we will produce products when we receive payment.Time depends on quantity.
We will send it by DHL,UPS,TNT,EMS or other International Express.Delivery time is about 7-11 working days.
Our service
1.OEM acceptable
2.Sample order
3.100% QC inspection before shipping
4.We will reply you in 24hours
5.180 days guarantee time
6.Best after-sale tracking service
2.Sample order
3.100% QC inspection before shipping
4.We will reply you in 24hours
5.180 days guarantee time
6.Best after-sale tracking service
