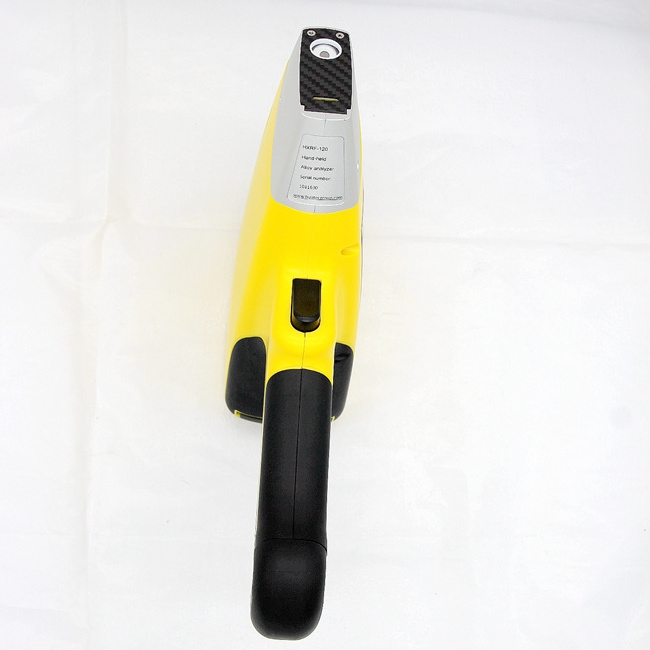

HXRF-120 Cheap Handheld XRF Metal Analyzer/XRF Spectrometer Price

information display

HXRF-120 Cheap Handheld XRF Metal Analyzer/XRF Spectrometer Price

HXRF-120 hand-held alloy analyzer (XRF) is a powerful weapon in material identification (PMI) in production of high temperature and high pressure boiler, container, pipe, etc; metal identification in iron and steel metallurgy, nonferrous metals, aerospace, weapons, submarine vessels, etc; metal material identification in engineering installation and construction projects in areas of the petrochemical refining, fine chemical, pharmaceutical, power plant, aerospace, etc to ensure equipment and material acceptance meet the project specified requirements; scrap metal recycling industry.

HXRF-120 is applicable to quality control, material classification, alloy identification, accident investigation, etc, which tackles the fundamental difficult problem of raw material analysis. As an innovation of many modern technologies, it is a great helping hand in these applications. Users can personalize the analyzing system according to their own needs.

HXRF-120's built-in alloy library contains 380 kinds of alloys, as well as other special alloys for mold, electric power, petrochemical and other industries, which simplifies the conversion of alloys from one country to another. Besides, it has two built-in libraries that the users can define by themselves to extend alloy brands. Therefore, it can extend to as many as 600 alloy brands and test more than 1,000 kinds of alloy materials.

Performance Features

1. Small, light and easy to carry.

2. High-speed processing chip, advanced algorithm and high-responsive software, resulting in even faster analysis.

3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology, yielding super-high detection resolution.

4. Indicator lights flash on both sides for safety purposes during measurement, i.e., the built-in double beam technology will automatically sense whether there is a sample at the measurement window.

5. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field. At the same time, people don't need to take off gloves when they are opreating machine in some particular environment.

6. HXRF-120 utilizes anti-slip, abrasion resistance and streamlined design, which is light and easy to carry. It also integrates the new high speed digital multi-channel technology, the new library grade base identification system and the super-FP algorithm. These features allow it to measure elements faster, with higher accuracy and greater repeatability.

7. Intelligent battery management exerts a real-time monitoring of the residual capacity of battery and backup battery through MSBUS bus.

8. Automatic switch to standby mode when not used and recovery after the machine is picked up, which saves power and extends working time; moreover, HXRF-120 has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; HXRF-120 will also give out alarm when ambient temperature or humidity exceeds the scope of application.

9. HXRF-120 adjusts air pressure factor automatically based on altitude it has detected. This function increases excitation effect of light elements by 40% and that of rare earth elements by 30%.

10. HXRF-120 is supportive to battery hot plug, hence battery can be replaced without powering off the machine.

11 . On HXRF-120, users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin of products and batch number).

12. HXRF-120 is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. The brightness of the display of HXRF-120 is automatically regulated according to environment brightness.

13. HXRF-120 can be configured and maintained in a remote way via Internet.

14. HXRF-120 can build a three dimensional element content distribution graph allowing for a fast estimate of mineral reserves or the extent of geological disaster with the built-in GPS for latitude and longitude reading combined with a 3rd party GIS analysis software.

15. HXRF-120's new algorithm optimizes the spectral resolution, so lower detection limits can be achieved, which are comparable with even large-scale lab instruments.

16. HXRF-120 Ultra-short optical path design can significantly improve light element excitation effects, without the fall/fill condition.

17. HXRF-120 has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.

Application fields

Nondestructive, rapid and accurate analysis of alloy elements and alloy grade identification on the site

Metal identification /scrap metal sorting

QA/QC management in metal production, processing, casting, etc

Medicine and biological medicine

Identification of positive materials, oil refining and petrochemical industry

Thermal power plant, hydroelectric power station, nuclear power plant

Accurate element analysis of raw material and PMI identification so as to meet production needs and ensure security of equipment and materials used in the process.

Elements to be Analyzed and Test Modes

HXRF-120 elements analyzed
	Scope of elements in standard test mode can be extended if there is such a need.
HXRF-120	can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 2 5 elements.

Technical parameters and specifications

Weight	1.6Kg ( with battery ) .
Dimensions	254 x 79 x 280 mm ( L x W x H ) .
Excitation source	50KV/200 μA maximum pipe pressure pipe flow can be adjusted freely,Ag target (standard),Au,W,Rh target(optional).
Detector	BOOST Si-PIN detector
Range of detection	All elements between Mg and U .
D isplay system	Industrial resistive touch screen with screen size of 4.3" . Proprietary operating system software and sound waves. Multiple lan guages including English and Chinese . And it automatically adjusts display brightness according to the environment brightness.
D ata processing	32GB memory USB, Blue tooth, WIFI, or liked to the Internet; instrument can be configured and repaired remotely. Data can be exported via EXCEL or PDF.  Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number).
Heat dissipation	Equipped with a dedicated T-shaped radiator to dissipate the heat no need to wait for cooling of detector time again.
Safety	Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase HUATEC Safety Band ;
P ower supply system	Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery and backup battery. The battery complies with air transport regulations of dangerous goods. A single battery can last 8 hours.
