Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hauhen
-
Dimension(L*W*H):
-
standard
-
Weight:
-
322
-
Rated power/speed:
-
50 / 2300
-
Product name:
-
engine sale
-
Engine type:
-
Air-cooled 4-stroke
-
Usage:
-
Construction machinery, generator set
-
Engine Model:
-
F4L913
-
Rated Power:
-
8HP-32HP
-
Color:
-
grey, black
-
BORE*STROKE:
-
102/125
-
Packing:
-
iron frame
-
MOQ:
-
1pcs
-
Delivery time:
-
10 days
Quick Details
-
Displacement:
-
4.086
-
Emission Standard:
-
standards
-
Power:
-
stanards
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hauhen
-
Dimension(L*W*H):
-
standard
-
Weight:
-
322
-
Rated power/speed:
-
50 / 2300
-
Product name:
-
engine sale
-
Engine type:
-
Air-cooled 4-stroke
-
Usage:
-
Construction machinery, generator set
-
Engine Model:
-
F4L913
-
Rated Power:
-
8HP-32HP
-
Color:
-
grey, black
-
BORE*STROKE:
-
102/125
-
Packing:
-
iron frame
-
MOQ:
-
1pcs
-
Delivery time:
-
10 days

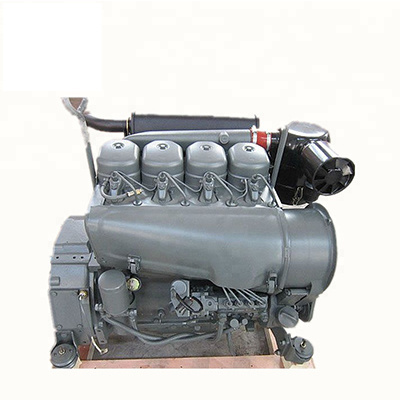

| MODEL | F4L913 | |
| NUMBER OF CYLINDERS | 4 Cylinders | |
| CHAMBER TYPE | Direct injection | |
| BORE / STROKE | 102/125 | |
| DISPLACEMENT | 4.086 | |
| VEHICLEMENT | 64(87) / 2800 | |
| NET EFFECTIVE LIMITED AMOUNT OF OIL BY POWER | LONG INTERMITTENT MOST POWERFUL | 64(87) / 2800 |
| SHORT INTERMITTENT MOST POWERFUL | 56(76) / 2500 | |
| ISO STANDARD OIL A MOUNT LIMIT POWER | BIGGEST | 50(68) / 2300 |
| MINIMUM | 34(46) / 1500 | |
| MAXIMUM TORQUE ACCORDING TO | 255 / 1600 | |
| QUALITY | 322 | |
| DIESEL ENGINE SUPPORT SPACING | 575 | |
| STANDARD FLYWHEEL SHELL TYPE | 2+3+4 | |
| WARRANTY | 1 year | |
| PACKING | iron frame | |
| CERTIFICATION | ISO | |
| ADVANTAGE |
(1)Small seize,light weight ,low fuel consumption,long service time,easy starting and convenient maintenance ect
(2)Wide application:engineering machineries, mining machineries, automobiles, agriculural equipments generating
equipments, medium and small ship ect. (3)Fine adaptablity: reliable in dry,hot cold weather and in poor water quality condition as well as in highland area and low pollution requested working environment |
|
THE FLYWHEEL SHELL CONNECTION SIZE (MM)
Part Number (combination Part Number) : 2242071(SAE2)(027 0749) / 2242050(SAE3)(027 0748) / 2102308(SAE4)(027 0747)
Stop Mouth Aperture :
∅
447.7H7 /
∅
409.58H7 /
∅
361.95H7
Stop Mouth width :
12
Flywheel Shell width :
122-0.3
Threaded Hole Distribution Round :
∅
466.7±0.3 /
∅
428.6±0.3 /
∅
381±0.3
Bolt Quantity : 12×M10
Part Number(combination Part Number) : 2160698 / (0270395) / 2240165 / (0270403) / 2244250 / (0270396)
Connection Plate Hole (PHI) (∅A1)(∅A2) : ∅314.4H7 / ∅352.4H7 / ∅263.5H7 / ∅314.4H7 / ∅314.4H7 / ∅352.4H7
Threaded Hole Distribution Round (∅B1)(∅B2) : ∅295.3±0.3 / ∅333.4±0.3 / ∅244.5±0.3 / ∅295.3±0.3 / ∅295.3±0.3 / ∅333.4±0.3
Screw Hole Depth / Thread Length : 22/17.5
Bolt Quantity : 8×M10
From The Booy Joints Size (C1)(C2) : 67.8 / 82.3 / 59.8 / 67.8 / 67.8 / 82.3
with a long period developing,our company owns professional technical testing persionnel and professional sales team, we have a sound managerment system and quality assurance system, which can provide our clents with high quality products and efficient service. with the aim "Not only what we have, but also what you need" welcoming your inquiry and your plans or smaple.
