Quick Details
-
Place of Origin:
-
Anhui
-
Brand Name:
-
durmapress
-
Year:
-
2020
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1880X1360X2850
-
Weight (T):
-
1.8 T
-
Model Number:
-
J-23 Frame Punching Machine
-
Motor Power (kw):
-
1.5 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Product name:
-
Power Press Machine
-
Application:
-
Metal Sheet Stamping
-
Keyword:
-
Mechanical Metal Punching Machine
-
pole distance:
-
380 mm
-
Max closing height:
-
380 mm
-
workbench distance:
-
510 mm
-
Nominal pressure stroke:
-
9 mm
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Mexico
-
Nominal Force (kN):
-
160 kN
-
Certification:
-
ISO9001/CE
Quick Details
-
Machine Type:
-
Single Column Hydraulic Press
-
Slide Stroke (mm):
-
130
-
Return Force (kN):
-
160 kN
-
Place of Origin:
-
Anhui
-
Brand Name:
-
durmapress
-
Year:
-
2020
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1880X1360X2850
-
Weight (T):
-
1.8 T
-
Model Number:
-
J-23 Frame Punching Machine
-
Motor Power (kw):
-
1.5 kw
-
CNC or Not:
-
Normal
-
Power Source:
-
Hydraulic
-
Product name:
-
Power Press Machine
-
Application:
-
Metal Sheet Stamping
-
Keyword:
-
Mechanical Metal Punching Machine
-
pole distance:
-
380 mm
-
Max closing height:
-
380 mm
-
workbench distance:
-
510 mm
-
Nominal pressure stroke:
-
9 mm
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Mexico
-
Nominal Force (kN):
-
160 kN
-
Certification:
-
ISO9001/CE
Product Description
The machine of whole structure and characteristics :

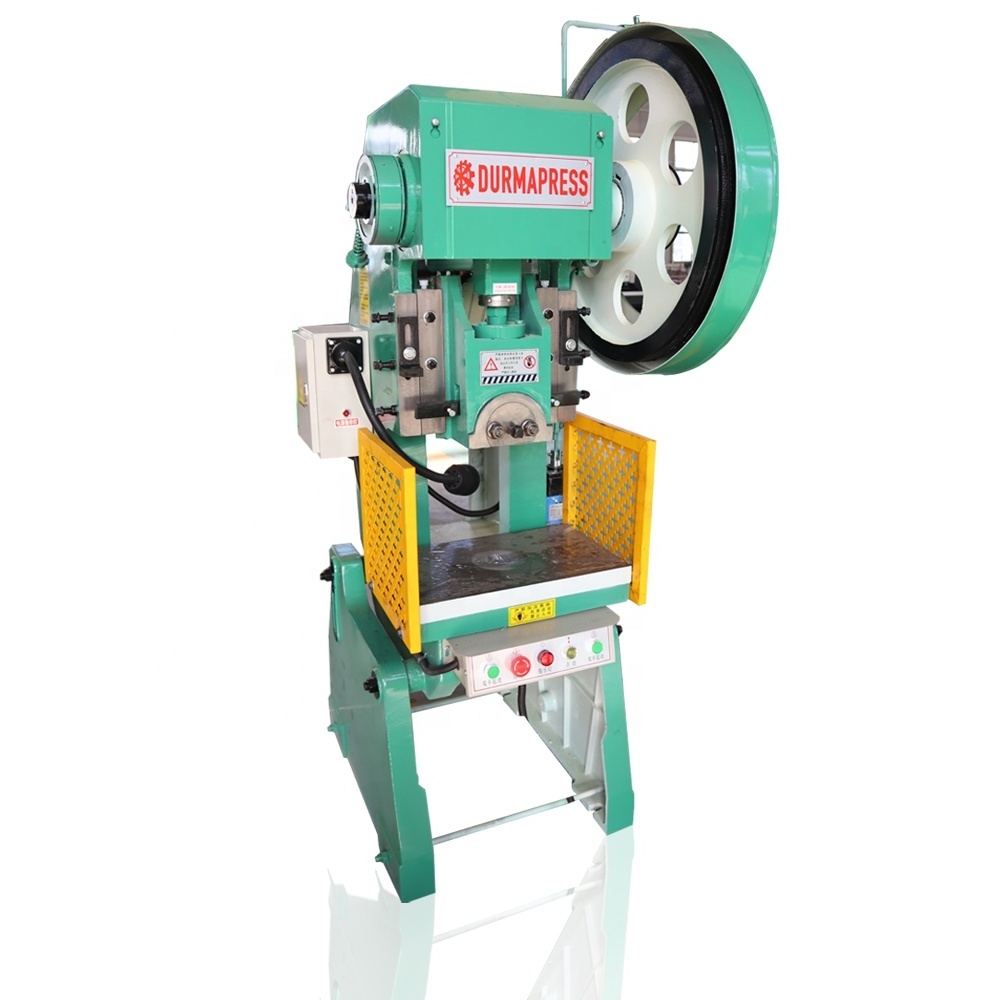

1. J23 Series High Precision Presses punching machine is one of the new generation of plate process and developed by Maanshan Dama
Machinery manufacturing Co;Ltd . ,The punching machine is for cutting, punching, blanking, bending and light stretching work.
2.C Type Steel welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide
life and machine.
3. Rigid construction guarantees exact die mating,Six side long rectangle guides of the slide with high moving precision and high
accuracy, extending the service life of the die.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection,
increases gear life.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service
1. J23 Series High Precision Presses punching machine is one of the new generation of plate process and developed by Maanshan Dama
Machinery manufacturing Co;Ltd . ,The punching machine is for cutting, punching, blanking, bending and light stretching work.
2.C Type Steel welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide
life and machine.
3. Rigid construction guarantees exact die mating,Six side long rectangle guides of the slide with high moving precision and high
accuracy, extending the service life of the die.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection,
increases gear life.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service
Detailed Images
Size Information
|
型号Model
|
|
单位Unit
|
J23-16
|
J23-25
|
J23-40
|
J23-63
|
J23-80
|
J23-100
|
J23-160
|
|
|
公称力Normial Force
|
|
KN
|
160
|
250
|
400
|
630
|
800
|
1000
|
1600
|
|
|
滑块行程Slipper Stroke
|
|
mm
|
70
|
90
|
100
|
120
|
120
|
130
|
160
|
|
|
滑块行程次数 Slipper stroke times
|
|
次/min
|
120
|
100
|
55
|
50
|
50
|
45
|
50
|
|
|
最大封闭高度 Max.Closing Height
|
|
mm
|
220
|
250
|
300
|
360
|
360
|
400
|
450
|
|
|
封闭高度调节量 Connecting Rod adjuster
|
|
mm
|
60
|
70
|
80
|
90
|
90
|
100
|
120
|
|
|
喉口深度Throat Depth
|
|
mm
|
160
|
190
|
240
|
260
|
260
|
320
|
380
|
|
|
立柱间距离Pole Distance
|
|
mm
|
220
|
250
|
300
|
350
|
400
|
420
|
440
|
|
|
机身最大倾斜角Angle of inclination
|
|
°
|
30
|
30
|
30
|
25
|
25
|
0
|
0
|
|
|
工作台尺寸Worktable size
|
左右L-R
|
mm
|
450
|
560
|
700
|
710
|
710
|
900
|
1120
|
|
|
|
前后F-B
|
mm
|
300
|
360
|
460
|
480
|
480
|
600
|
710
|
|
|
滑块底面尺寸Slipper underside bore
|
左右L-R
|
mm
|
200
|
250
|
320
|
320
|
320
|
390
|
510
|
|
|
|
前后F-B
|
mm
|
180
|
210
|
270
|
280
|
280
|
340
|
370
|
|
|
模柄孔尺寸Size of die handle bore
|
直径Diameter
|
mm
|
40
|
40
|
50
|
50
|
50
|
50
|
80
|
|
|
|
深度Depth
|
mm
|
60
|
60
|
70
|
80
|
80
|
85
|
80
|
|
|
外形尺寸Dimension
|
前后F-B
|
mm
|
1140
|
1350
|
1500
|
1810
|
1800
|
2100
|
2175
|
|
|
|
左右L-R
|
mm
|
900
|
950
|
1180
|
1400
|
1480
|
1740
|
1288
|
|
|
|
高度Height
|
mm
|
1890
|
2200
|
2300
|
2750
|
2820
|
3240
|
3047
|
|
|
电机功率 Motor Power
|
|
Kw
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
11
|
15
|
|
|
总重量Weight
|
|
Kg
|
850
|
1300
|
2700
|
3500
|
4500
|
5500
|
7800
|
|
Certification
Package & delivery
Our service
Company Introduction
Nanjing Bosslaser CNC Technology Co., Ltd. Boslaser is a famous brand company in China, which is dedicated to development, production and sales of sheet metal equipment. Located in Nanjing, Jiangsu Province, After 15 years development, it has been a famous and influential modern enterprise which owns two Subsidiary corporations - Maanshan Durmapress Machinery Technology Co., Ltd and Nanjing Bosslaser CNC Technology Co.,Ltd .
Adhering to the advanced European design concept, Boslaser follow the technology of Belgian R&D center, combine with the actual needs of customers, and make well-structured and high-quality sheet metal fabrication equipment. Most importantly, it makes us be the professional sheet metal processing equipment supplier.
FAQ
Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
