K-type surface thermometer, high temperature furnace temperature measuring rod

spring thermocouple

K-type surface thermometer, high temperature furnace temperature measuring rod

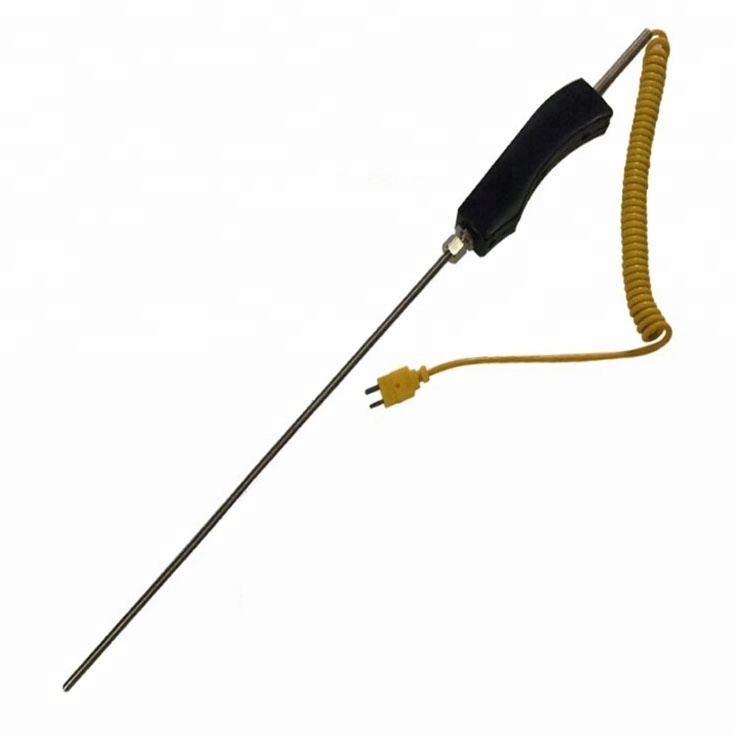

Hand-held Thermocouple Temperature Sensor, Sheathed Thermocouple K type
1 High precision accuracy
2 Short response time
3 Easy installation

1. Working Principle of Hand-held Thermocouple Temperature Sensor, Sheathed Thermocouple K type

Thermocouple is a temperature sensing element, it can be directly perceived level of transformation temperatures. Two ends of conductor with different materials is welding together to form a closed loop, when there is a temperature difference between the two ends, it will generate thermoelectric power in the loop .

2. Features of  Hand-held Thermocouple Temperature Sensor, Sheathed Thermocouple K type

1) Short thermal response time, narrow dynamic deviation.

2) Wide measuring range

3) High mechanical strength, good pressure-resisting.

Model: WRNK-187 Factory direct sales Quality assurance.

Index number: K type

Armored outer diameter: Φ5MM, Φ6MM, Φ8MM (can be customized according to customer needs)
Protective tube material: 304 stainless steel (can be bent freely)
Handle material: bakelite

Operating temperature: 0-800 degrees (long-term), can measure 0-1100 degrees in an instant

Can be used with TM902C, TES1310, etc.

Order information:

• • Title: Hand-held thermocouple
• • Model: WRNK187
• • Dividing number: K
• • Temperature range: 0-800 degrees Celsius long-term, short-        term0-1100 Celsius
• • Protection tube material: 304 stainless steel
• • Handle Material: Bakelite
• • Probe diameter: 5mm
• • Probe Length: 1000mm
