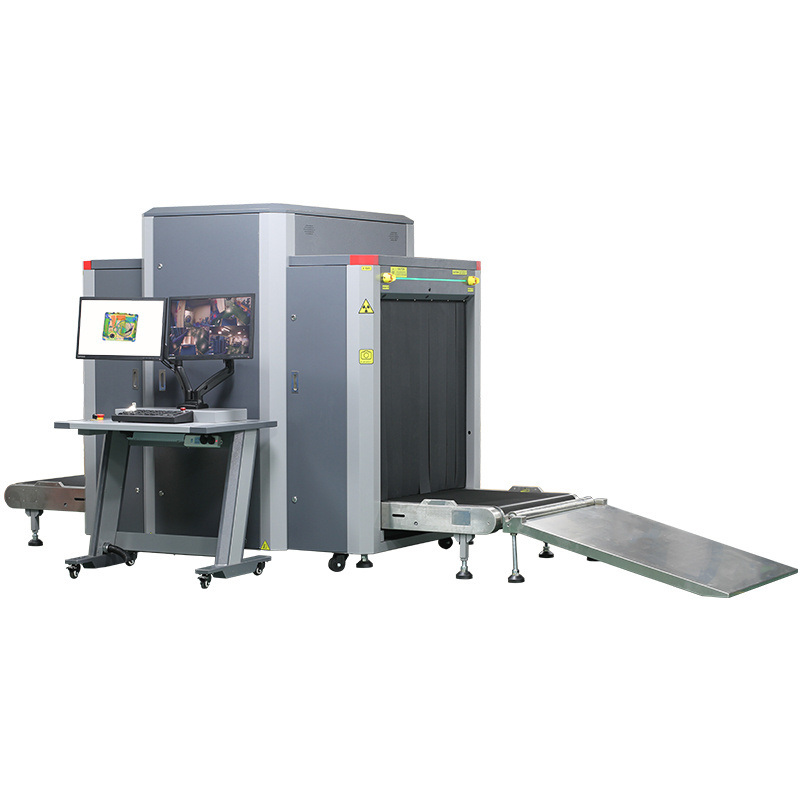

Safeagle X Ray Cargo Scanner Xray Baggage Screening Scanner Price for Jail Resort

Safeagle X Ray Cargo Scanner Xray Baggage Screening Scanner Price for Jail Resort

FOB Reference Price: Get Latest Price

≥1 Sets

US $18888

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Tunnel Size:: 1005(W)*800(H)mm

Penetration:: 34 mm steel

Scan:: Bidirectional Scanning Imaging

Conveyor Max Load:: 250Kg(Equally Distributed)

Net weight:: 742kg

Power consumption:: Approx.8KV(Max)

Certificate:: FCC, RoHS, CE, ISO9001,ISO4001,OHSAS18001

Customized logo:: Accept

Warranty:: 24 Months

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Safeagle

Software:: Switchable 4/7 Color Imaging

Tunnel Size:: 1005(W)*800(H)mm

Penetration:: 34 mm steel

Scan:: Bidirectional Scanning Imaging

Conveyor Max Load:: 250Kg(Equally Distributed)

Net weight:: 742kg

Power consumption:: Approx.8KV(Max)

Certificate:: FCC, RoHS, CE, ISO9001,ISO4001,OHSAS18001

Customized logo:: Accept

Warranty:: 24 Months

Product Description

7 COLOR IMAGING

Assigns color to objects based on their composition.

Safeagle ® was the first to introduce this cutting-edge feature in China, which assigns colors to objects based on their material composition, including objects highlighted below:

Organic materials (i.e. C-4, plastic explosives)

Low inorganic materials (i.e. drugs and narcotics)

High inorganic materials (i.e. glass, propellants)

Heavy metals (i.e. firearms, bullets, knives)

Light metals (i.e. gunpowder, IEDs)

Dense metals (i.e. gold, silver, other high-value contraband)

If x-ray parcel scanner is essential?

X-ray scanners are an essential component in the protection of vital infrastructure as they are used to detect threat objects (explosives, weapons, etc.) and prevent their introduction into strategically important buildings. Although other inspection methods exist (terahertz, ultrasound, etc.), x-rays are routinely used to scan baggage, parcels or even cargo.

Specification

Safeagle® X-ray Cargo Screening System
Tunnel Size	1001(W)*1001(H)mm	Film Safety	Guarantee ISO 1600 (33 DIN)
Belt Speed	0.23m/s (45ft/min) Forward	Display Type	2* 21.5" LCD Color Monitors
Conveyor Load	250 kgEvenly Distributed	Display Resolution	1280 x 1024; 24 bit/pixel Color
Voltage	140KV	Operating Temperature	0°C - 40°C
Tube Current	0.7mA	Humidity	Up to 95% Non-Condensing
Cooling	Sealed Di-Electric Oil Bath with Forced Air	Power Requirements	220VAC±10%, 50/60Hz, 10A Max
Duty Cycle	100%	Memory	4GB RAM
Beam Direction	Diagonally Upward	Storage	1 TB SSD

About the Accessories and Installation of X-ray Baggage Scanner

1. If order a standard Safeagle X-ray baggage scanner, the packing list will be

^{1) Scanner machine *1}

^{2) User manual, radiation test report, acceptance certificate *1}

^{3)

21.5 inch display with w

ireless keyboard and mouse *1}

^{4) 0.7m tunnel landing extension *1}

^{5) Console *1}

^{6) 1.5m electric wire *1 (European/British/American/South Africa/France/Italy/Brazil/Australian standard etc.)}

^{* Optional Accessories: Exit and Entry Rller Tables, Special Keyboard, Touch Screen Console.}

2. If received, you're required to install the scanner quickly with below 4 steps.

1) Take out and installed the monitor, keyorard from the tunnel

2) Install the tunnel landing extension

3) Power on

4) Start the software then test it

* All Safeagle scanner has embedded with wireless LAN for remote control, can do support anytime.

3. One-stop Service 1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle. 2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.

Certificate and Radiation Limitation

Rediation Standard

The design of Safeagle system provides radiation leakage attenuation limited to 1.0 μSv/hr(0.1mR/hr) or lower at any accessible point at the distance of 0.1m from the external surface of the system.The dose rate intensity at the workstations of the personnel does not exceed 1.0 μSv/hr. Safeagle baggage X-ray inspection system strictly control the radiation leakage at it's source, the leaded rigid-steel tunnel, double layer leaded leaded curtain

Our Company

Shenzhen Jinjian Era Technology Co.,Ltd.

Shenzhen • China

Nowadays, terrorist attack and crime in the world are only increasing, what we offer is the most commonly used security detectors used around the globe to keep it safer. Safeagle is the experienced high-tech manufacturers for the mainstream security equipment in China, our oversea high-end brand "Safeagle" receive high reputation at home and abroad, we mainly specializes in:

◆X-ray Baggage Scanner ◆Walk Through Metal Detector ◆Hand Held Metal Detector

◆Dangerous Liquid Scanner ◆Under Vehicle Inspection System ◆Explosive and Drug Detector
