Quick Details
-
Warranty(Year):
-
2-Year
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
AM-RA-36P
-
Product name:
-
Microwave motion sensor LED Panel light
-
Sensor distance:
-
6-8m Radius
-
Size:
-
60*60 cm
-
Power:
-
36W
-
Power Factor:
-
0.5
-
Working Mode:
-
Dimming (100%-20%)
-
Holding time:
-
15sec default
-
Installation:
-
False ceiling Mounted
-
CCT:
-
6000K
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Application:
-
Office, School, Hotel, Hospital, Corridor, Stairs, hallway, passageway
-
Lamp Body Material:
-
Plastic
-
Warranty(Year):
-
2-Year
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Working Lifetime(Hour):
-
20000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
AM-RA-36P
-
Product name:
-
Microwave motion sensor LED Panel light
-
Sensor distance:
-
6-8m Radius
-
Size:
-
60*60 cm
-
Power:
-
36W
-
Power Factor:
-
0.5
-
Working Mode:
-
Dimming (100%-20%)
-
Holding time:
-
15sec default
-
Installation:
-
False ceiling Mounted
-
CCT:
-
6000K

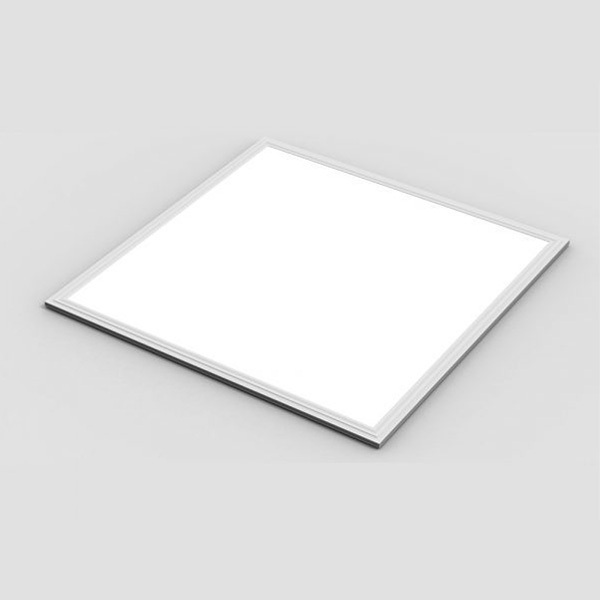

36W 60*60cm Square Auto Dimming Indoor Microwave Motion sensor LED Panel light for Hallway Corridor Lobby
Motion Sensor LED Surface panels are the perfect solution for places such as public restrooms, garages, lobby, corridor, building entrances or changing rooms in clothes outlets, as well as in areas where people are constantly walking by throughout the day,
Thanks to its radar motion detetion technology, the light will only be activated when it detects movement within 6-8m detection radius, then dim to 20% after 20sec and no movement is detected.
| Input Characteristics | |
| Model No. | AM-RA-36P |
| Mains voltage |
100-265V |
| Stand-by power | <0.5W |
| Rated Power | 36W |
| LED Qty | 6*8*2835 |
| LED Source | 9V 1.5W SMD2835 |
| Output Lumen | 3600 lm |
| Color Temperature | 2700K/6000K |
| Power Factor | >0.9 |
| Lumen Efficiency | >90Lm/W |
| CRI (Ra) | >80 |
| Sensor Data | |
| Sensor principle | HF Microwave |
| Operation Frequency | 5.8GHz |
| Transmission power | <0.2mW |
| Detection range: Max(diameter*H) | 8m*6m |
| Detection angle | 30° ~150° |
| Hold time | 15+/-5s |
| Sensor Mode | Full/Dim |
| Environment | |
| Operation Temperature(Ta) | -20~40°c |
| IP Rating | IP20 |
-
LED Panel Light with Motion Sensor
- Ceiling Mounted or Recessed Mounted
- Auto Full/Dim when motion activated/ motionless
- High sensitivity within 6-8 meters distance
- Energy efficient, Eco friendly, Easy to install.
- Low power consumption.
-
The Motion Detector can turn on the light based on movement, with this detector built in, light is automatically on/off.
Working Mode:
-
When detect movement lighting 100% 36W
No movement, standby status light 20% 6-8 watts.
