Industrial corn flakes processing machine puffed corn flakes production machine line

Industrial corn flakes processing machine puffed corn flakes production machine line

FOB Reference Price: Get Latest Price

≥1 Pieces

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 65*3*4m

Weight:: 1500 KG

Place of Origin:: Shandong, China

Voltage:: 220V/380V

Key Machines:: Motor

Output:: 120-150kg/h 180-250kg/h 350-500kg/h

main electrical motor:: SIEMENS

inverter:: Taiwan Delta

Material:: Stainless Steel

Raw material:: Corn Flour

Installed Capacity:: 85kw

Power consumption:: 65kw

Certification:: CE ISO

Applicable Industries:: Manufacturing Plant

After Warranty Service:: Online support

Quick Details

Machinery Capacity:: 100-500kg/h

Brand Name:: KL

Year:: 2022

Dimension(L*W*H):: 65*3*4m

Weight:: 1500 KG

Place of Origin:: Shandong, China

Voltage:: 220V/380V

Key Machines:: Motor

Output:: 120-150kg/h 180-250kg/h 350-500kg/h

main electrical motor:: SIEMENS

inverter:: Taiwan Delta

Material:: Stainless Steel

Raw material:: Corn Flour

Installed Capacity:: 85kw

Power consumption:: 65kw

Certification:: CE ISO

Applicable Industries:: Manufacturing Plant

After Warranty Service:: Online support

Product Description

High productity corn flakes machine

NO.	Name	Brief introduction
1	Raw material	Corn, rice, wheat, oat, barley powder
2	Basic Recipe	Grist powder; sugar; coco; cheese; water
3	Processing flow	Mixing system; Extrusion system; Flaking system; Drying system; Flavoring system; Drying system; Packing system
4	Equipment involved	Mixer; Screw elevator; Double screw extruder; Air conveyor; Roller dryer; Tablet machine; Air conveyor; Dryer; Hoister; Vibrator; Hot air dryer; Flavoring system; Dryer with cooler.
5	Final products	Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder ; corn flakes; cereal snacks
6	Machine material	Stainless steel 304 or as customer’s request

Product Sample

Product Paramenters

Model	DZ-65	DZ-70	DZ-85	DZ-80
Voltage customized	380V /50Hz	380V /50Hz	380V /50Hz	380V /50Hz
Installed power	80kw	88kw	95kw	115kw
Power consumption	60kw	65kw	70kw	100kw
Capacity	120-150kgs/hr	180-250kgs/hr	300-500kgs/hr	500-800kgs/hr
Length	26m	28m	36m	45m

Detailed Images

Name	Mixer
Capacity	150kg/batch
Parameter	power: 7.5kw
Usage	Mixing various kinds of raw material
Working Principle	The motor drives the stirring cage, automatic water adding device and pneumatic discharge valve

Name	Screw conveyor
Capacity	300kg/h
Parameter	power: 0.75kw;
Usage	Conveying the raw material to Mixer. Working principle: The motor drives the screw in elevator, lifting the material from the low end to the high end.

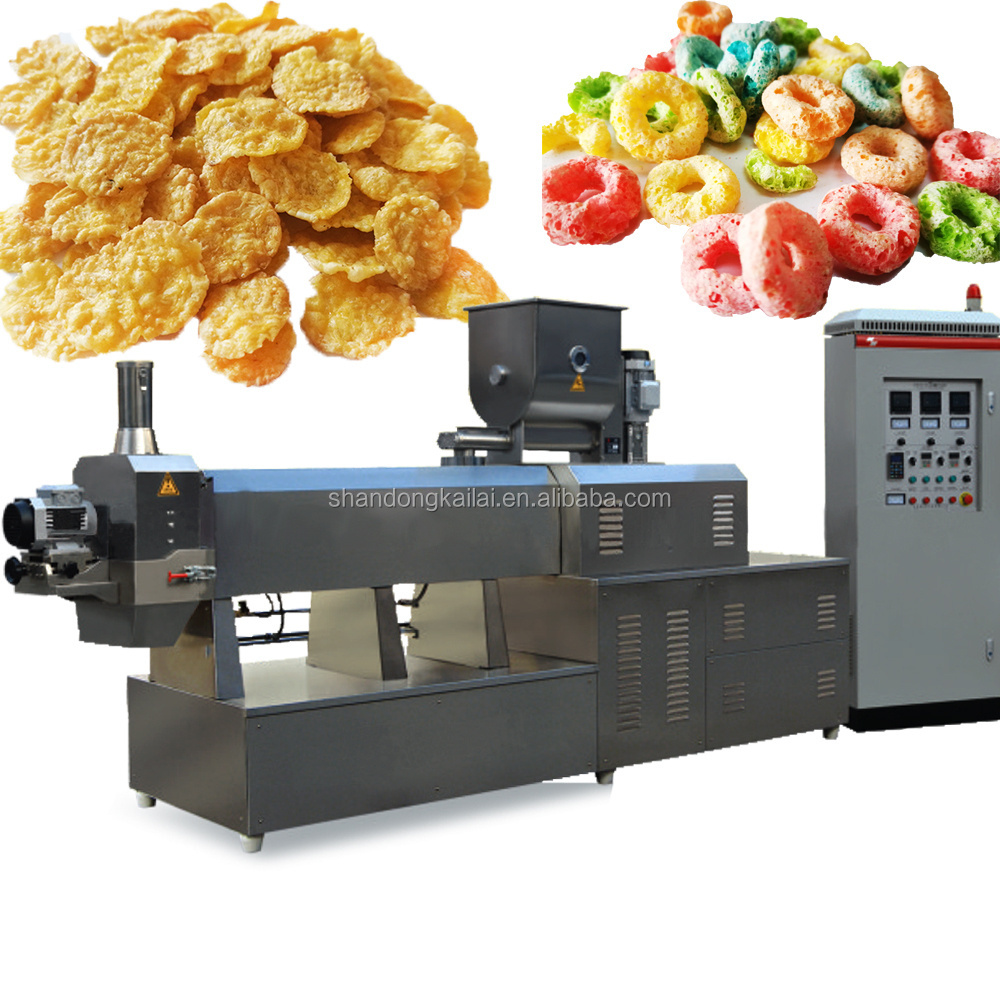

Name	Doule Screw Extruder
Capacity	180-250kg/h
Parameter	power: 45kw;
Usage	Raw material is curing and puffed in extruder, becoming different shapes of puffing snacks with moulds changing.
Working Principle	It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system.

Name	Tablet machine
Parameters	Power: 22kw
Capacity	200-250kg/h
Usage	Make the puffing corn granules to corn flakes
Working principle	The motor drives two pressing rollers rotating at acontrary direction whose speed can be adjustable.

Name	Dryer
Capacity	200-300kg/h
Parameter	power: 60kw
Usage	Drying puff corn snacks after extruding
Working Principle	The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, conmbustion system, dehumidifier system, sheet metal insulation system and controlling system.

Name	High temperature hot air puffing oven
Parameters	Power:100KW
Capacity	200-250kg/h
Usage	Bubbles will appear on surface , and after hot air drying Corn flakes will be crispy .
Working Principle	Heat exchanger is burned by gas or diesel burner. Hot air is sprayed by high pressure blower , which makes corn flakes puffed and bubbles instantly.

Name	Flavoring system
Capacity	200-300kg/h
Parameter	Power: 20kw
Usage	This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil or sugar
Working Principle	Spraying nozzle can adjust oil amount equally. The sugar coating is built up by tumbler system. The tumbler is derived by a motor, using for mixing and melting the water, sugar and other additives.

Name	Packaging machine
	If you like , we will reconmmand you our some good packing machine manufactures.

Our Advantages

1. Established in 1995, more than 24 years of experience in extrusion food machinery industry.

2. CE, ISO, SGS have been obtained, Our machine have been exported to 150 countries and districts. 3. We offer complete solution, turnkey solution service for customers.

4. Strong sales service team with 20 years of experience, ensuring high quality products.

5. Superior geographical position, the convenience traffic conditions. Located in Jinan city, Shandong province,1 hour away from Jinan airport, 2 hours away from Qingdao port.

After-sales Service

1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free online debugging of equipment until everything is functional;
4. Free management of equipment long distance shipping from seller's factory to place by the buyer;
5. Free training of equipment maintenance and operating personally in the seller's factory;
6. Free new production techniques and formulas;
7. Provide 1 year complete warranty and life-time maintenance service; The seller is responsible for the nature damage of the machinery in one year except for man-made damage. All spare parts and wearing parts are attached with the machinery for free.
