Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Golden Motor
-
Model Number:
-
8, 10, 12, 24 inch
-
Torque:
-
12 N.m
-
Motor:
-
brushless , 24V 180W, 250W
-
Max Load:
-
200KG
-
Battery:
-
24V 15AH, 24V 10AH available
-
Size:
-
8'', 10'', 12'', 24'' available
-
Speed:
-
7-10KMH
-
Certification:
-
ce
Quick Details
-
Speed(RPM):
-
100rpm
-
Continuous Current(A):
-
8A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Golden Motor
-
Model Number:
-
8, 10, 12, 24 inch
-
Torque:
-
12 N.m
-
Motor:
-
brushless , 24V 180W, 250W
-
Max Load:
-
200KG
-
Battery:
-
24V 15AH, 24V 10AH available
-
Size:
-
8'', 10'', 12'', 24'' available
-
Speed:
-
7-10KMH
-
Certification:
-
ce

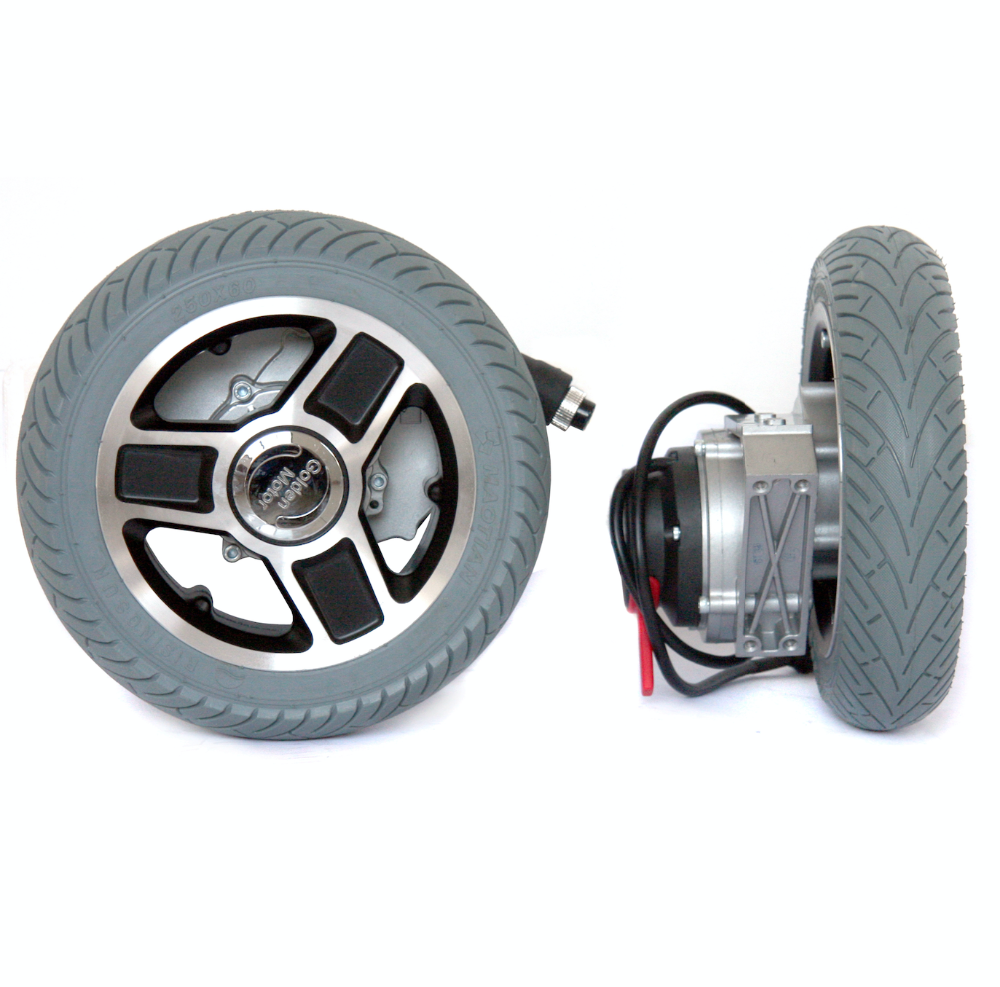

8, 10, 12, 24 inch power electric wheelchair conversion kits, brushless electric wheelchair motor, controller, battery
We have 3 types electric power wheelchair motors available (8'' , 10'', 12'' ): 24'' will be released soon.
Special Features of the power wheelchair motors:
1. Brushless Motor 24V180W (8''/10''/12'') 24'' is coming soon.
2. EMB Brake equip
3. Manual release handle
4. Mounting bracket
5. Easy Replaceable Tire
6. Support heavy load: max 150 Kg
7. Breakthrough brushless wheelchair drive technologies:
High efficiency brushless hub motor
Brushless joystick controller
50% battery saving
10 times longer working life
8. Best quality LiFePO4 battery: 24V15AH (4.6 Kg) 24V 10AH available.
1000 charging cycles
safe, light, reliable
pollution free
9. Self upgradeable wheel sizes - 8"/10"/12"
10. Longer warranty period
The specifications of our e-Throne electric folding wheelchairs (8'',10'',12'' available) :
| Parameter | 8'' | 10'' 12'' |
|
Volage: |
24V |
24V |
|
Power |
180W | 180W |
|
Weight |
4.5kg | 5kg/6.5 kg |
| Motor Speed | 100RPM(7KMH) | 100RPM(8KMH/10KMH) |
| Torque | 12N.m. | 12N.m. |
| Package | 57cm*37cm*34CM | 57cm* 40 cm*34CM |
| Tyre Type: | PU filled tire | PU filled tire |
| Wheel Material: | Rubber | Rubber |
| Battery: |
24v10ah Li-on battery:2.6kg 14cm*16cm*7cm
24v15ah Li-on battery:4.7kg 19cm*19.5cm*10.5cm Charging cycle >1000times |
|
| Brake Type: | Electromagnetic brake | |
| Max Capacity | 200kg | |
| Distance on Full Battery: |
20KM(24V10AH)
35km(24V15AH) |
|
| Slope capacity | 20% (12 Degrees) | |
