Quick Details
-
Brand Name:
-
TOPSFLO
-
Model Number:
-
TL-C01
-
Place of Origin:
-
China
-
Outlet Size:
-
18mm
-
Power:
-
max 48w
-
Standard or Nonstandard:
-
Standard,customized
-
Certificate:
-
CE,RoHS,WRAS,ISO9001
-
Liquid:
-
Water, hot water,beverage
-
Temperature range:
-
0~100 Celsius degree,90 Celsius,80 Celsius
-
Motor:
-
3 phase motor, DC brushless motor,dc motor
-
Pump Feature:
-
Low noise,Continuous 24hours work,Blocked protection
-
Max Flow:
-
22L/min,24L/min
-
Fuel:
-
DC power, Battery, Solar panel
Quick Details
-
Application:
-
Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Water Treatment Solutions, chiller, medical device
-
Pressure:
-
High pressure 24L/min
-
Voltage:
-
12v 24v
-
Brand Name:
-
TOPSFLO
-
Model Number:
-
TL-C01
-
Place of Origin:
-
China
-
Outlet Size:
-
18mm
-
Power:
-
max 48w
-
Standard or Nonstandard:
-
Standard,customized
-
Certificate:
-
CE,RoHS,WRAS,ISO9001
-
Liquid:
-
Water, hot water,beverage
-
Temperature range:
-
0~100 Celsius degree,90 Celsius,80 Celsius
-
Motor:
-
3 phase motor, DC brushless motor,dc motor
-
Pump Feature:
-
Low noise,Continuous 24hours work,Blocked protection
-
Max Flow:
-
22L/min,24L/min
-
Fuel:
-
DC power, Battery, Solar panel

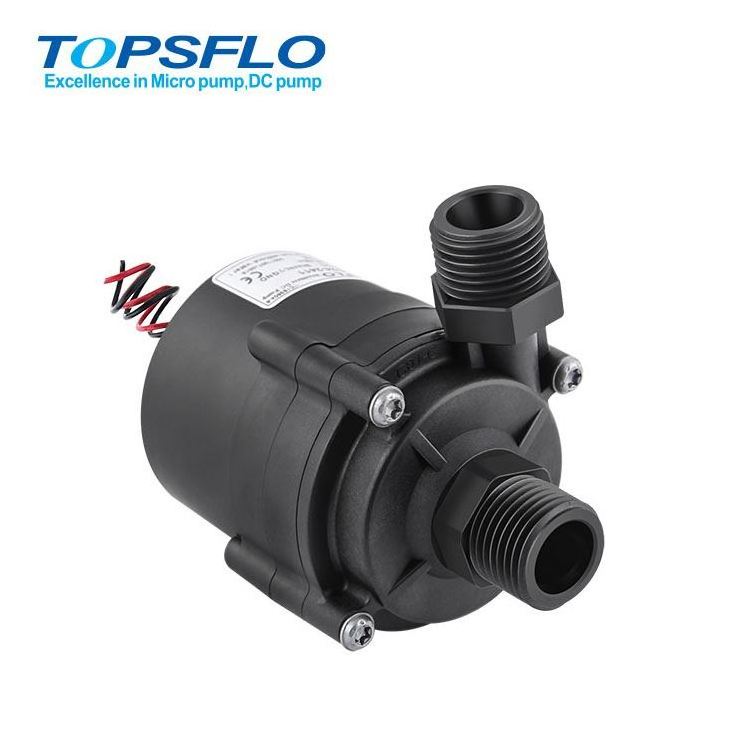

12v dc brushless centrifugal hot water circulation small high pressure water pump
♦ 16000M2 modern factory with its own physical property rights, ESD anti-static control dust free workshop,
100+ sets of professional imported equipment
♦
4 major professional and precision laboratories that meet the
CNAS national laboratory
accreditation standards
♦
More than 50 patents
in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦
Complete certification, passed
CE, ROHS, REACH, WRAS, Food Grade and other certification
Product Specification:
| Motor | High performance 3-phase motor | ||||||
| 12V Highest operating voltage | 18V | ||||||
| 12V Starting voltage | 6V | ||||||
| 24V Highest operating voltage | 28V | ||||||
| 24V Starting voltage | 12V | ||||||
| Working rated | Continuous | ||||||
| Noise | ≤45dB(A) from 1M Distance | ||||||
| Life length | 20000H | ||||||
| Coil Insulation class | Class F | ||||||
| Liquid temperature | 0~105ºC | ||||||
| Media | Water, antifreeze,other | ||||||
| Power Supply | DC power supply, battery, solar powered | ||||||
| Remarks | Can't dry-running, not Self-priming | ||||||
| The technical parameters above is only for your reference, for more details , please feel free to contact us. | |||||||
1. Liquid transfer general purpose 2. Hot water circulating system
3.
Laser Chiller Systems pump 4. Instant electric water heater, electric shower
5. Circulating systems for homes 6. Medical applications/ Medical Beauty Equipment pump
7. D ishwasher spray system 8. LED cooling, Semiconductor cooling
9.Boosting applications 10. Carbonated Beverage Machine
11. HVAC System 12.Cooling Circulation System
Get more information, Please Send Message
