2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
- Product Details
- {{item.text}}
Quick Details
-
Wire diameter:
-
2mm-14mm iron wire
-
Axles number:
-
7 axles
-
Wire Feed length:
-
Infinite
-
Wire Feed speed:
-
100Meter/Mln
-
Wire Feed instruction value:
-
±0.01-±9999.99
-
Cam instruction value:
-
±0.1°-359.9°
-
Wire feed shaft servo power:
-
2.7KW/4.5KW
-
Wire-switching shaft servo power:
-
1.2KW/2.7KW
-
Torsion shaft servo power:
-
1.2KW/2.7KW
-
Lifting platform servo power:
-
0.75KW/2.7KW
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yinfeng
-
Weight (KG):
-
4300
-
Wire diameter:
-
2mm-14mm iron wire
-
Axles number:
-
7 axles
-
Wire Feed length:
-
Infinite
-
Wire Feed speed:
-
100Meter/Mln
-
Wire Feed instruction value:
-
±0.01-±9999.99
-
Cam instruction value:
-
±0.1°-359.9°
-
Wire feed shaft servo power:
-
2.7KW/4.5KW
-
Wire-switching shaft servo power:
-
1.2KW/2.7KW
-
Torsion shaft servo power:
-
1.2KW/2.7KW
-
Lifting platform servo power:
-
0.75KW/2.7KW
Products Description
Product advantages 1

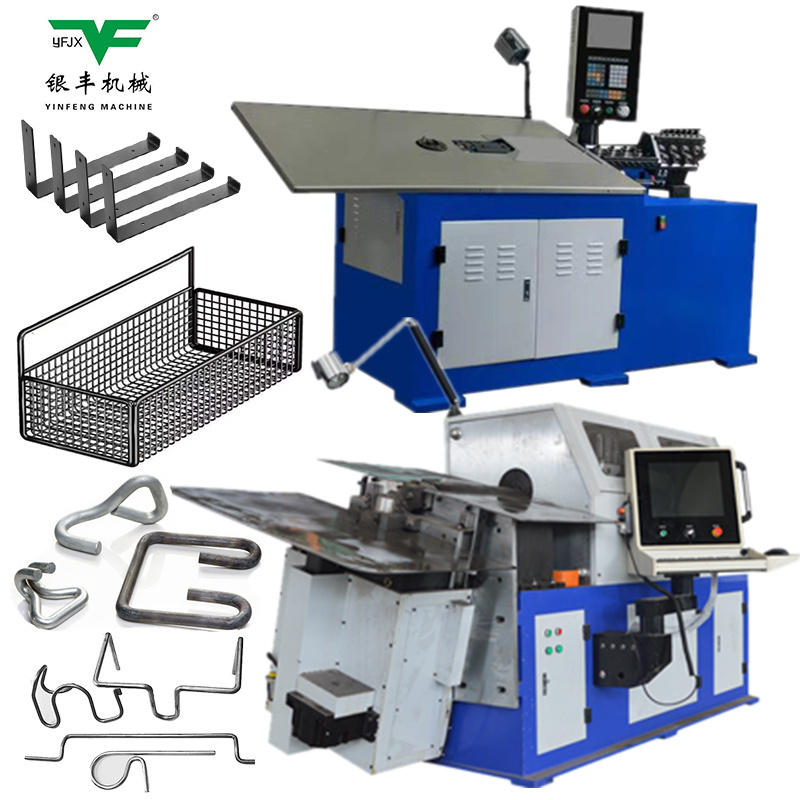

The flat wire forming machine 3D or 2D can be produced (2.0-14.0mm wire diameter). This machine adopts a special computer control system for wire forming machine and imported high-precision servo motor.
Product advantages 2
The computer is Chinese-language interface, easy to operate,accurate and accurate. It can store hundreds of processing programs with different specifications, shorten the time for the next debugging, according to the working conditions of the fluorescent screen,you can modify the outer diameter angle of the product at any time.
Product advantages 2
The design of automatic shutdown when the thread is broken or tangled and the automatic acceleration function of the thread stand make the production easier and more effective. Applicable to production: wire forming equipment for car seat suspension springs, sun visor skeletons, car door lock levers, handicraft metal wires, sanitary ware tableware supports, storage cages, shopping trolleys and other wire rods.
Automatic material feed frame
2.control, high safety control compatibility, can use for parallel or serial electric production machinery, to independent or
3.synchronization feeding material.Automatic material feed frame YF-150 -350-500-1000(weight bearing between 150-1000 Kg)
Our Yinfeng Machine Can Make Any Kinds Of Spring, Also We Can Customized Extra Function According To Your Requirements.
Manufacturing Product Videos
Product Paramenters
|
2D cnc wire bending machine
|
|
|
||
|
Model
|
CNC-4-60
|
CNC-4-80
|
||
|
Wire diameter
|
Φ2.0mm-Φ6.0mm
|
Φ3.0mm-Φ8.0mm
|
||
|
Axles number
|
4 axles
|
4 axles
|
||
|
Wire Feed length
|
Infinite
|
Infinite
|
||
|
Wire Feed speed
|
100Meter/Mln
|
100Meter/Mln
|
||
|
Wire Feed instruction value
|
±0.01-±9999.99
|
±0.01-±9999.99
|
||
|
Cam instruction value
|
±0.1°- 359.9°
|
±0.1°-359.9°
|
||
|
Wire feed shaft servo power
|
2.9KW
|
2.9KW
|
||
|
Torsion shaft servo power
|
1.0KW
|
1.2KW
|
||
|
Lifting platform servo power
|
0.75KW
|
0.75KW
|
||
|
Cut shaft servo motor
|
0.75KW
|
0.75KW
|
||
|
Machine weight
|
2800KG
|
2800KG
|
||
|
Machine sizes
|
2400x850x1650mm
|
2750x850x1650mm
|
||
|
Machine sizes
|
2400x850x1650mm
|
2750x850x1650mm
|
||
|
3D cnc wire bending machine
|
|
|
|
|||
|
Model
|
CNC-7-60
|
CNC-780
|
CNC-7120
|
|||
|
Wire diameter
|
2mm-6mm iron wire
|
3mm-8mm iron wire
|
4mm-12mm iron wire
|
|||
|
Axles number
|
7 axles
|
7 axles
|
7 axles
|
|||
|
Wire feed length
|
Infinite
|
Infinite
|
Infinite
|
|||
|
Wire feed speed
|
100Meter/Mln
|
100Meter/Mln
|
100Meter/Mln
|
|||
|
Wire Feed instruction value
|
±0.01 - ± 9999.99
|
±0.01-±9999.99
|
±0.01-±9999.99
|
|||
|
Cam instruction value
|
±0.1° - ±359.9°
|
±0.1°-359.9°
|
±0.1°-359.9°
|
|||
|
Wire feed shaft servo power
|
2.7KW
|
2.7KW
|
4.5KW
|
|||
|
Wire-switching shaft servo power
|
1.2KW
|
1.2KW
|
2.7KW
|
|||
|
Torsion shaft servo power
|
0.75KW
|
1.2KW
|
2.7KW
|
|||
|
Lifting platform servo power
|
0.75KW
|
0.75KW
|
2.7KW
|
|||
|
Cut shaft servo motor
|
0.75KW
|
0.75KW
|
2.7KW
|
|||
|
Torsion lifting platform servo power
|
0.75KW
|
0.75KW
|
2.7KW
|
|||
|
Core-switching shaft servo power
|
1.2KW
|
1.2KW
|
2.7KW
|
|||
|
Machine weight
|
2000KG
|
4300KG
|
4300KG
|
|||
|
Machine sizes
|
2900cm*900mm*1700mm
|
4100x2000x1900mm
|
4250x2000x1900mm
|
|||
Price list could be sent upon request, just kindly contact us:
Ms Grace Email: yinfengspring@163.com Cell/Whatsapp:+8618520279887
