Quick Details
-
Control System Brand:
-
SANYI
-
Cutting Area:
-
150mm*150mm
-
Cutting Thickness:
-
0.01~25mm single sawing 50mm double sawing
-
Control Software:
-
Sanyi
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanyi
-
Weight (KG):
-
1100 KG
-
Applicable Industries:
-
Lab grown diamond factory, CVD diamond seeds factory, Diamond Jewelry factory, MPCVD HPHT machine company, Semiconductor wafer fab company, Superhard materials institute and university, Natural CVD HPHT Diamond Company, CVD, PDC, PCBN, PCD Cutter and drill bits factory
-
Core Components:
-
Laser Source, Laser Cutting Head, Control Software
-
Products handled:
-
Diamond PDC PCBN PCD Cutter Bit Cutting
-
Place of origin:
-
China, guanghzou
-
Product name:
-

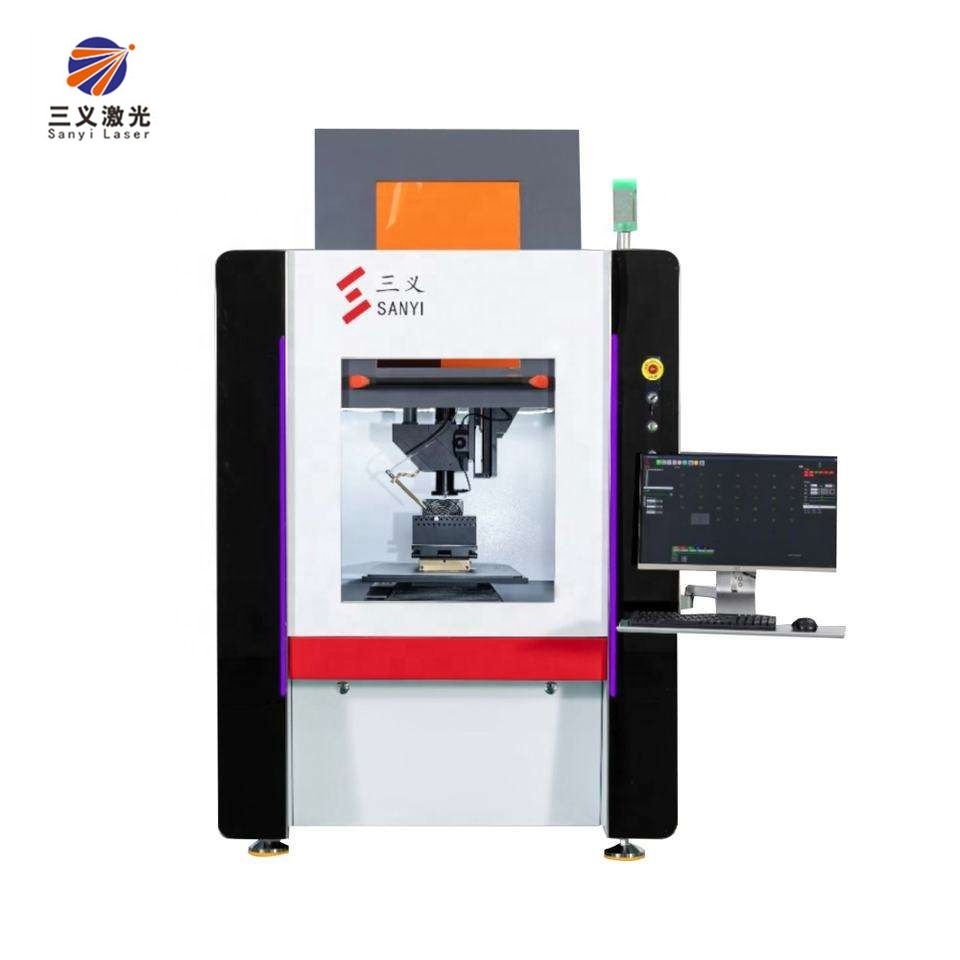

Cold laser Diamond Cutting Machine
-
Function:
-
Diamond Surperhard Material PCD PCBN PCD Cutter Drill Bit Cutting
-
After-sales service provided:
-
Online support
-
Control software:
-
Self-developed, customized for special needs
Quick Details
-
Laser Type:
-
355nm UV
-
Cutting Speed:
-
0-100mm/s speed adjustable
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
SANYI
-
Cutting Area:
-
150mm*150mm
-
Cutting Thickness:
-
0.01~25mm single sawing 50mm double sawing
-
Control Software:
-
Sanyi
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanyi
-
Weight (KG):
-
1100 KG
-
Applicable Industries:
-
Lab grown diamond factory, CVD diamond seeds factory, Diamond Jewelry factory, MPCVD HPHT machine company, Semiconductor wafer fab company, Superhard materials institute and university, Natural CVD HPHT Diamond Company, CVD, PDC, PCBN, PCD Cutter and drill bits factory
-
Core Components:
-
Laser Source, Laser Cutting Head, Control Software
-
Products handled:
-
Diamond PDC PCBN PCD Cutter Bit Cutting
-
Place of origin:
-
China, guanghzou
-
Product name:
-
Cold laser Diamond Cutting Machine
-
Function:
-
Diamond Surperhard Material PCD PCBN PCD Cutter Drill Bit Cutting
-
After-sales service provided:
-
Online support
-
Control software:
-
Self-developed, customized for special needs
Product Specifications
|
SN
|
Content
|
Specification Parameters
|
|
1
|
Laser wavelength
|
355nm
|
|
2
|
X axis stroke
|
300mm
|
|
3
|
Y-axis stroke
|
300mm
|
|
4
|
Z-axis stroke
|
100mm
|
|
5
|
Repeated positioning accuracy of XYZ axis
|
±0.01mm
|
|
6
|
Ambient temperature
|
20-25 ℃
|
|
7
|
Humidity
|
≤ 50%
|
|
8
|
Total power of equipment
|
2.2 KW
|
|
9
|
Power
|
220V/50Hz
|
|
10
|
Overall dimension of equipment
|
1000mm x 1300mm x 1780mm
|
|
11
|
Total weight of equipment
|
1100KG
|
