Quick Details
-
Color:
-
Red/White/Blue/Green/Yellow/Orange
-
Panel Size:
-
0.8 Inch, 0.8 Inch
-
Place of Origin:
-
Guangdong, China
-
Specification:
-
other
-
Model Number:
-
WZ04021YG
-
Usage:
-
Outdoor/Indoor
-
Emitting Color:
-
Red/Green/Bule/White/Yellow/Orange/Purple/Amber
-
Digit Number:
-
Single Digit
-
Lens Color:
-
Black Face/ White Segment
-
Wavelength:
-
560-580 nm
-
VF:
-
1.8-2.2 V/3.0-3.6V
-
Polarity:
-
Common Anode/Common Cathode
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
wanzhou, wanzhou
-
Color:
-
Red/White/Blue/Green/Yellow/Orange
-
Panel Size:
-
0.8 Inch, 0.8 Inch
-
Place of Origin:
-
Guangdong, China
-
Specification:
-
other
-
Model Number:
-
WZ04021YG
-
Usage:
-
Outdoor/Indoor
-
Emitting Color:
-
Red/Green/Bule/White/Yellow/Orange/Purple/Amber
-
Digit Number:
-
Single Digit
-
Lens Color:
-
Black Face/ White Segment
-
Wavelength:
-
560-580 nm
-
VF:
-
1.8-2.2 V/3.0-3.6V
-
Polarity:
-
Common Anode/Common Cathode
Luminous Intensity
Red: 50 mcd to 60 mcd
hight bright red: 70mcd to 80mcd
blue: 40mcd to 50mcd
pure green: 180mcd to 200mcd
yellow: 14mcd to50mcd
amber: 30mcd
purple:
orange:
Features
1) LED numeric & alphanumeric displays for indoor, semi-outdoor and outdoor application.
2) Digit height: from 0.28" to 20" (0.28", 0.3", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8", 1.0", 1.2", 1.5", 1.8", 2.3", 3.0", 4.0", 5.0", 8.0", 10", 12", 16", 20".)
3) 1-digit, 2-digits, 3-digits, 4-digits, 6-digits available with black or grey face.
4) Various emitting colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).
5) Applications: elevator/lift, bank exchange rate display, led clock display, led oil price display for gas satation and other different display areas of equipment/machine.
1.Electrical optical charactertistics(Ta25 °C)
|
Parameter |
Symbol |
Min |
Type |
Max |
Unit |
Test Condition |
|
Luminous Intensity |
IV |
50 |
60 |
70 |
mcd/cm2 |
IF=20mA |
|
Peak Wavelength |
λp |
629 |
630 |
635 |
nm |
IF=20mA |
|
Dominant Wavelength |
λd |
|
|
|
nm |
IF=20mA |
|
Forward Voltage |
Vf |
20 |
21 |
23 |
V |
IF=20mA |
|
Reverse Current |
IR |
10 |
uA |
VR=5V |
||
|
Suggestion Forward Current |
IF |
3 |
5-10 |
20 |
mA |
IF=20mA |
2.Absolute Maximum Ratings (Ta=25°C):
|
Parameter |
Rating |
Unit |
|
Reverse Voltage |
25/8 |
V |
|
Power Dissipation,Per Dice |
60 |
mW/chip |
|
Operating Temperature Ranger |
-40~+85 |
°C |
|
Storage Humidity |
45%~85% |
°F |
|
Storage Temperature Ranger |
-40~+100 |
°C |
|
Soldering Temperature |
260°C For 3 Seconds |
|
|
Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width) |
100 |
mA/chip |
|
Continuous Forward Current |
20 |
mA/chip |

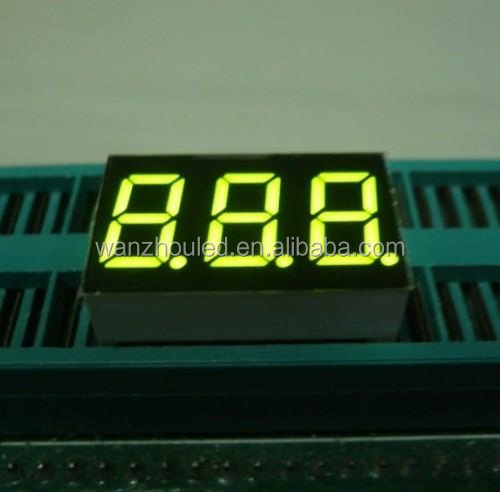

Product exhibit
