Quick Details
-
Material:
-
zinc alloy /acrylic/tempered glass for option
-
Colors option:
-
Copper/Bright chrome
-
Card Type:
-
T57.M1. ID
-
Size:
-
290*75mm
-
Application:
-
hotel, appartment, residence, dormitory etc
-
Softeware:
-
Provided after order
-
Packing:
-
10Pcs/ Carton
-
Warranty:
-
3 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
zigbee hotel door lock
-
Unlock way:
-
Cards + Mechanical Key
-
Material:
-
zinc alloy /acrylic/tempered glass for option
-
Colors option:
-
Copper/Bright chrome
-
Card Type:
-
T57.M1. ID
-
Size:
-
290*75mm
-
Application:
-
hotel, appartment, residence, dormitory etc
-
Softeware:
-
Provided after order
-
Packing:
-
10Pcs/ Carton
-
Warranty:
-
3 Years

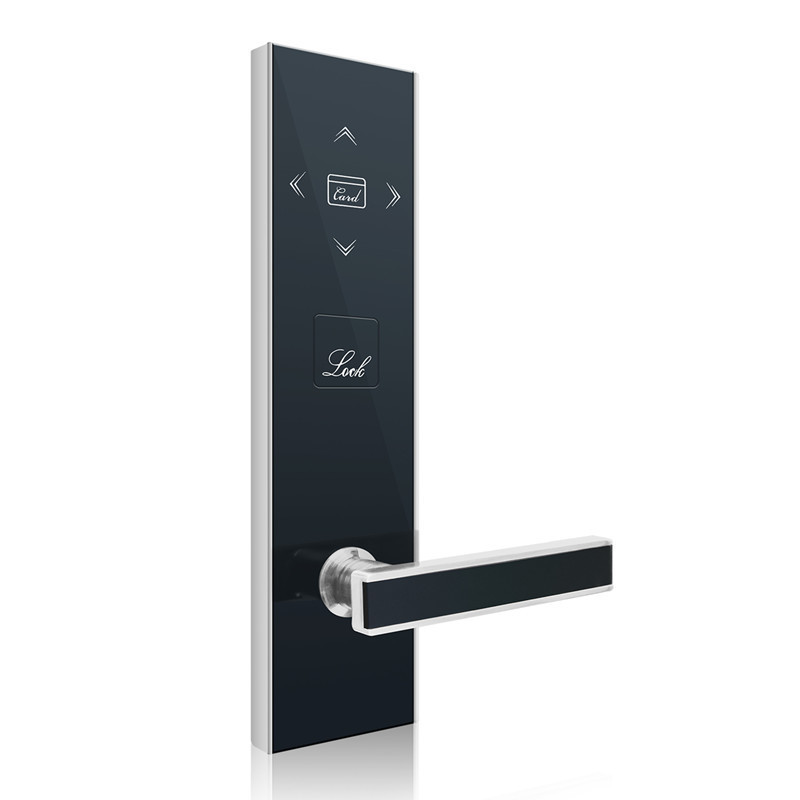

high end zigbee proximity swipe key cards smart electric usb encoder rfid sensor hotel door lock
Advantages:
1. Usb encoder lined with computer with windows system
2.software is easy to work and stable
3.Hight efficient management , check in and check out
4. material is quality zinc alloy /acrylic .
5. rfid card can not be copy if card lost and easy to make a new card
6. the card reader read cards very fast , less then 0.3 s
Specification:
| Product name | hotel lock system | ||
| Material | zinc alloy /acrylic | Color | Copper/Black/Silver/Gold option |
| Application | Hotel, office, home, school, villa etc | Unlock way | RF card, Mechnical keys |
| Reading card distance | ≤3cm | Lock body Material | zinc alloy /acrylic |
| Static power consumption | Less10μA | Dynamic power consumption | Less 200μA |
| Working current | 5-40mA | Standby current | Less 25μA |
| Working temperature | -10℃-60℃(-20℃-70℃) | ||
| Antistatic | Support | Chip type | TEMIC, MF1 , EM,and ID |
| Working voltage | DC6V 4pcs AA batteries, last 16,000 times unlock | Undervoltage instruction | Support |
| Low power alarm voltage | 4.8V | Memory | 800 Transactions include Time/Date/Card ID/Card type/Room ID |
| Unlock record | Store latest 255pcs | Warranty` | 1 years |
Basic System Configuration:
|
Lock |
1 pc |
For Guest Room |
|
Encoder |
1 pc |
For authorize card, software management is needed. |
|
Switch |
1 pc |
To gain power for the room |
|
Card |
5 pc |
To open the door lock |
|
Data Collector |
1 pc |
To collect the lock entrance info |
|
Software |
1 pc |
FREE, permanent , packed with Encoder |
Outside carton size: L74* W38* H32(cm), 10pcs/ctn
Gross weight: 32KG
