Quick Details
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JWELL
-
Voltage:
-
380V
-
Weight:
-
4000 KG
-
Raw material:
-
PVC Powder
-
Usage:
-
Water Supply
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Brand
-
Capacity:
-
650-750kg/h
-
Extruder:
-
92/188
-
Screw type:
-
Twin Conical Screw
-
Pipe diameter:
-
315-630mm
-
Color:
-
Customer Choice
-
Gear box:
-
Jiangyin
-
Marketing Type:
-
Hot Product
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
30:1
-
Screw diameter (mm):
-
92/188
-
Screw Speed (rpm):
-
34.7 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JWELL
-
Voltage:
-
380V
-
Weight:
-
4000 KG
-
Raw material:
-
PVC Powder
-
Usage:
-
Water Supply
-
Motor:
-
SIEMENS Brand
-
Inverter:
-
ABB Brand
-
Capacity:
-
650-750kg/h
-
Extruder:
-
92/188
-
Screw type:
-
Twin Conical Screw
-
Pipe diameter:
-
315-630mm
-
Color:
-
Customer Choice
-
Gear box:
-
Jiangyin
-
Marketing Type:
-
Hot Product
Products Description

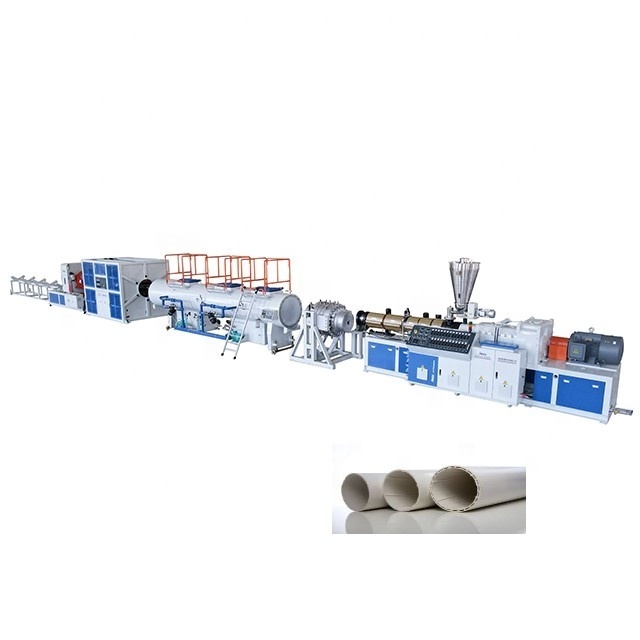

PVC Pipe Extrusion Line
A variety of specifications and models of PVC twin-screw extruder can produce pipes of different diameters and different wall thickness. The pipe line is equipped with special designed screw structure, uniform plasticizing and high output.
PVC extrusion die head uses high quality alloy steel manufacturing, channel surface with brightness and anti-corrosive. Wide flow channel design to ensure the retention time of the melt in the die head and the largest extrusion production.
In view of the large diameter PVC pipe,the vacuum tank used double vacuum chamber structure design, equipped with a circular plate, making pipe roundness and forming better. Haul-off unit uses 2 to 10 caterpillars, mating with different specifications of the planetary cutting machine. It adapts to all PVC dimensions pipe production.
|
Model
|
Pipe Spec(mm)
|
Extruder
|
Max. Output(kg/h)
|
Total Power(kw)
|
|
JWG-PVC160
|
Ø63-Ø160
|
SJZ65/132
|
250-300
|
100
|
|
JWG-PVC250
|
Ø75-Ø250
|
SJZ65/132
|
250-300
|
110
|
|
JWG-PVC315
|
Ø160-Ø315
|
SJZ80/156
|
300-400
|
180
|
|
JWG-PVC450
|
Ø200-Ø450
|
SJZ80/173
|
450-500
|
245
|
|
JWG-PVC630
|
Ø315-Ø630
|
SJZ92/188
|
650-750
|
350
|
|
JWG-PVC800
|
Ø400-Ø800
|
SJZ110/220
|
1000-1300
|
420
|
|
JWG-PVC1000
|
Ø500-Ø1000
|
SJZ110/220
|
1000-1300
|
460
|
Details Images
Name: PVC screw feeder
Motor Power:
1.5KW
Loading Capacity:
1000kg/h
Diameter:
92/188 mm
Mesh Type:
Conical Mesh
Motor:
Siemens Beide AC Motor
Structure:
PVC material flow design; 2 sets of die heads; inner flow channel is polished
Material:
40Cr Casting
Heating Control Zone：
Max 14 zones
Calibrators：
Stainless Steel Calibrator
Name: Vacuum Tank
Vacuum Pump:
4KW X 2 sets
Forward-and-backward Distance:
500mm
Name: Haul-off Unit
Haul-off Method:
Caterpillar Type
Number of Caterpillars:6
Max Hauling Speed:
1 meter/min
Length of Caterpillars:
2000mm
Cutting method:
Planetary cutting with Chamfering
Pressing Method:
Pneumatic pressing
Cutting Motor:
4 KW
Shaving Collecting Unit:
Have
Method:
U-type, R-type
Length:
6000mm
Diameter:
315-630mm
