Quick Details
-
Panel Efficiency:
-
15.3%
-
Solar cell:
-
Poly 156*156 Cell
-
VMP/V:
-
30V
-
IMP/A:
-
8.33A
-
Module efficiency:
-
15.3%
-
Net weight:
-
19KG
-
Certificate:
-
CE, TUV, IEC, ISO, CE
-
Application:
-
Solar Home System,BOATS,CARS
-
Junction Box:
-
IP65 Rated
-
Frame:
-
Aluminum Alloy
-
Product name:
-
pannelli fotovoltaici
-
Size:
-
1650*990*40mm
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
SN-P250
-
Place of Origin:
-
Guangdong, China
-
Panel Efficiency:
-
15.3%
-
Solar cell:
-
Poly 156*156 Cell
-
VMP/V:
-
30V
-
IMP/A:
-
8.33A
-
Module efficiency:
-
15.3%
-
Net weight:
-
19KG
-
Certificate:
-
CE, TUV, IEC, ISO, CE
-
Application:
-
Solar Home System,BOATS,CARS
-
Junction Box:
-
IP65 Rated
-
Frame:
-
Aluminum Alloy
-
Product name:
-
pannelli fotovoltaici
-
Size:
-
1650*990*40mm

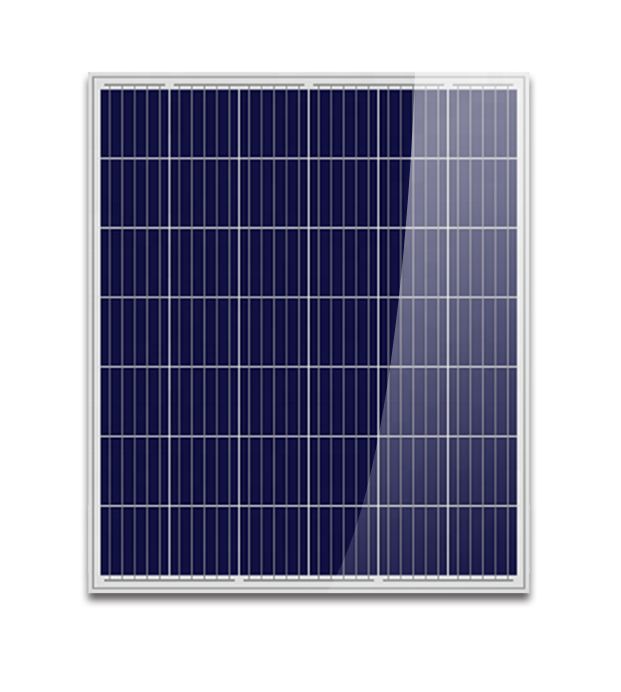

High quality poly pannelli fotovoltaici 12v 250w solar panel in philippines price
| Technical Details | |
| Solar Panel Model type | SN-P250 |
| Solar Panel Peak power(Pmax) | 250W |
| Solar Panel Maximum power voltage (Vmp) | 30V |
| Solar Panel Maximum power current (Imp ) | 8.33A |
| Solar Panel Open circuit voltage (Voc) | 36V |
| Solar Panel Short circuitcurrent (Isc) | 7.93A |
| Solar Panel cell type | Poly Crystalline Silicon |
| Solar Panel Number of cells | 60 cells in series |
| Solar Panel Weight | 19kg |
| Solar Panel Dimensions | 1650×990×40mm |
| Solar Panel Maximum system voltage | DC 1000V |
| Solar Panel Temp.Coeff.of Isc(TK Isc) | 0.045%/℃ |
| Solar Panel Temp.Coeff.of Voc(TK Voc) | 0.34%/℃ |
| Solar Panel Temp.Coeff.of Pmax(TK Pmax) | 0.47%/℃ |
| Solar Panel Normal Operting Cell Temperature | 45±2℃ |
Key features
1.High module conversion efficiency,through superior manufacturing technology
2.Guaranteed power output tolerance from -3 to +3%
3.Excellent performance under low-light irradiance environment
4.Anodized aluminum is mainly for improving corrosion resistance
5.Highly transparent,low iron tempered glass
6. Entire module certified to withstand high wind loads(2400Pa) and snow loads(5400Pa)
Warranty
12-year material and workmanship warranty
12 years for a guaranteed minimum benefit of 90%
25 years for a guaranteed minimum benefit of 80%
25 years linear warranty
Solar cells applications :
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
5. Other industrial or commercial applications
