Quick Details
-
Luminous Efficacy(lm/w):
-
85
-
Product Weight（kg）:
-
0.35
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shiji lighting
-
Product name:
-
SD card led rgb controller K-8000C
-
Max pixels:
-
8192pixels
-
Working temperature:
-
-20~85℃
-
Weight:
-
0.8Kg
-
Size:
-
180mm*110mm*35mm
-
Application:
-
Digital LED Light
-
Working power:
-
DC5V or DC12V~24V input
-
Power consumption:
-
5W
-
Certificates:
-
CE ROHS
-
Voltage:
-
DC5V or DC12V~24V
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
5W
-
Luminous Efficacy(lm/w):
-
85
-
Product Weight（kg）:
-
0.35
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
shiji lighting
-
Product name:
-
SD card led rgb controller K-8000C
-
Max pixels:
-
8192pixels
-
Working temperature:
-
-20~85℃
-
Weight:
-
0.8Kg
-
Size:
-
180mm*110mm*35mm
-
Application:
-
Digital LED Light
-
Working power:
-
DC5V or DC12V~24V input
-
Power consumption:
-
5W
-
Certificates:
-
CE ROHS
-
Voltage:
-
DC5V or DC12V~24V

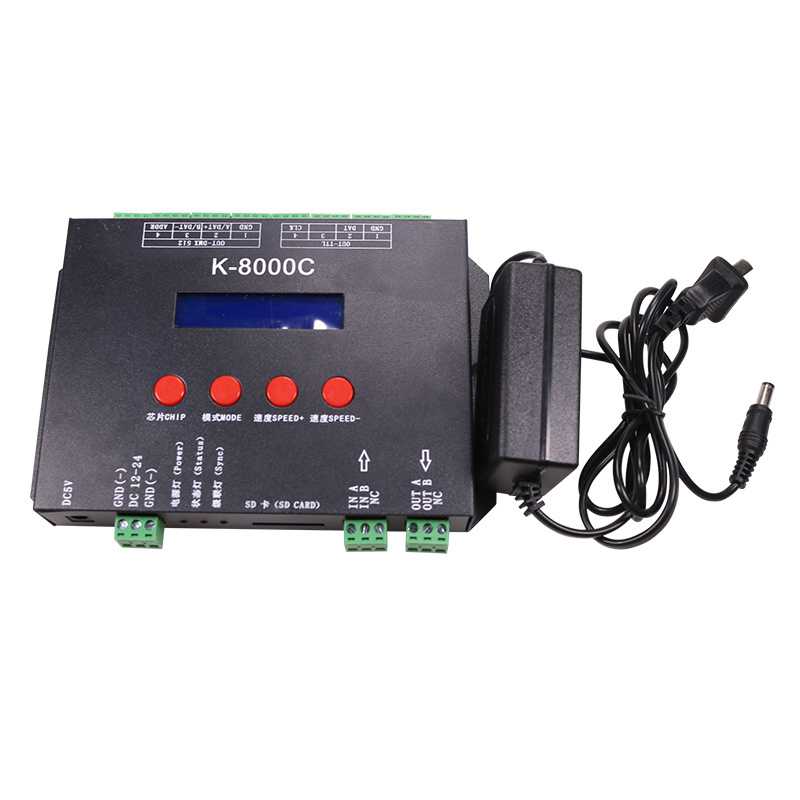

SD card led rgb controller K-8000C for led strip led pixel light
• Quick Details
|
|
• System features
1. 32 to 65536 degree Gray control, Gamma correction procession handle.
2. Support various point, line light source, and all kinds of rules and specific shaped handle.
3. The controller has eight ports output, each port can support up to 1024 lights.
4. Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support
128MB-32GB.
5. The controller can single set use,also multiple controllers cascade, cascade optical isolation mode:
interference, better stability, cascade distance between two controllers can reach up to 150 meters, need
to use 0.5M² pure copper power cord.
6. The controller support chip can lock the support IC in software, or not lock the support IC in the software,
select the support IC through the controller CHIP button, this scheme is more flexible and convenient.
7. The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green,
blue and black gradient; 3 red, green, blue and goes.
NOTE :
1. When the controller load lamps 512 points pixel, speed can reach up to 30 frames / sec. When 768 point
pixel speed can reach up to 25 frames / sec. When 1024 point pixel speed is about 22 frames / sec.
• Wiring mode of conventional IC lamps
Controller support DMX lights coding and wiring mode
• Two signal wiring diagram
• Single signal wiring diagram
•Screen print meaning
Button meaning:
| Button | Meaning | |
| CHIP | Switch chip | Press CHIP and then MODE button, can enter write code mode, 61 means UCS512-A/B coding; 62 means WS2821 coding; 63 means SM512 coding, 64 means UCS512-C coding |
| MODE | Switch file | |
| SPEED+ | Speed up | Press SPEED+ and SPEED- the same time, would enter effect files looping mode. |
| SPEED- | Speed down | |
Interface meaning :
| DC5~24 | DC5V or DC5V~24V power positive input |
| GND | DC power supply negative input |
| POWER | Power indicator |
| ERROR | Status indicator |
| SD card(SD CARD) | SD card slot |
| GND | Ground line |
| CLK | Clock line(Coding line if DMX lights) |
| DAT | Data line |
| B | Signal - |
| A | Signal + |
| IN A | Cascade sync signal, connect the front OUT A |
| IN B | Cascade sync signal, connect the front OUT B |
| OUT A | Cascade sync signal, connect the next IN A |
| OUT B | Cascade sync signal, connect the next IN B |
• Support chips (PC Software Select K-1000-RGB)
00: UCS1903,1909,1912,2903,2904,2909,2912;TM1803,1804,1809,1812;
SM16703,16709,16712;WS2811,WS2812,WS2813,WS2815,WS2818;
INK1003;LX3203,1603,1103;GS8205,8206;SK6812(max. Supports lights 2048
pixels)
01:SM16716,16726(support up to 2048 pixels)
02:P9813(support up to 2048 pixels)
03:LPD6803(support up to 2048 pixels)
04:LX1003,1203(support up to 2048 pixels)
05:WS2801(support up to 2048 pixels)
06:LPD1886(support up to 2048 pixels)
07:TM1913(support up to 2048 pixels)
08:TM1914(support up to 2048 pixels)
09:P9883,P9823(support up to 2048 pixels)
10:DMX(support up to 512 pixels, suggest to support ≤320 pixels)
11:DMX 500K(support up to 512 pixels, suggest to support ≤320 pixels)
12:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
13:DMX 250K-CZF (support up to 512 pixels, suggest to support ≤320 pixels)
